Li-ion Lithium Battery Charger Protection Board 18650 BMS Li-ion Lithium Battery Charger Module for Drill Motor(3S 60A Balance)

Lithium Ion Battery Charger Protection Board 3S/4S 5A 10A 20A 25A 40A 60A Li-ion Lithium Battery Charger Module for Drill Motor
Feature:

1.
Reliable Lithium Battery Protection: This battery management system (BMS) offers comprehensive protection for series-connected lithium-ion or lithium-polymer batteries, ensuring safe and efficient charging and discharging.

2.
Multiple Protective Functions: The BMS board provides safeguards against overcharging, over-discharging, overcurrent, and short circuits, giving you peace of mind during usage.

3.
Versatile Applications: Suitable for a wide range of products, including vacuum cleaners, massage device battery packs, backup power for LED lights, solar-powered streetlights, and backup power for surveillance systems.

4.
High-Quality Charging Solution: With options ranging from 3S to 60A, this Lithium Ion Battery Charger Protection Board delivers reliable and efficient charging capabilities for various lithium battery configurations, meeting different power requirements.

5.
Enhanced Battery Performance: By effectively managing the charging and discharging processes, this module helps extend the lifespan of your lithium batteries, maximizing their performance and overall durability.
Specification:

Specifications

:
Standard: 3S 5A Standard, 3S 10A Standard, 4S 20A Standard (optional)
Enhance: 3S 20A Enhance, 3S 40A Enhance, 3S 60A Enhance, 4S 40A Enhance (optional)
Balance: 3S 25A Balance, 3S 40A Balance, 3S 60A Balance, 4S 40A Balance (optional)

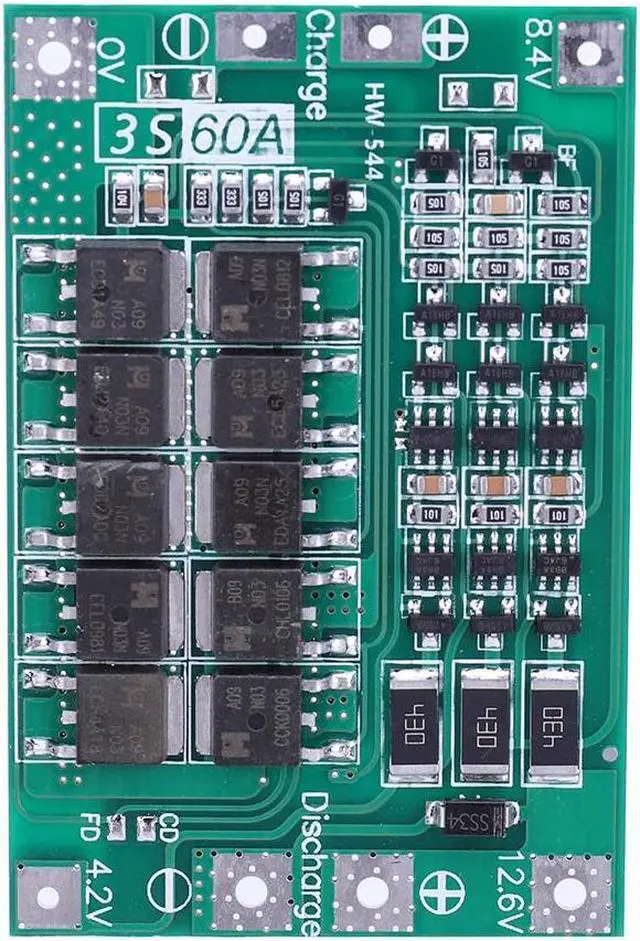

3S 60A Balance
Product size: 62 * 41 * 3.4 mm/ 2.44 * 1.61 * 0.13 inch
Charging voltage: DC 12.6V ~14V
Continuous discharge current: maximum 60A (if the cooling environment is not good, causing the module to overheat, please reduce the load current for use)
Continuous charging current: maximum 10A
matters needing attention
1: Successfully starting the electric drill requires 3 10C-20C power batteries, or 6 5C-10c power batteries (recommended power battery models: for SONY VTC4, VTC4A, VTC5A, VTC6A) with 0V and 12.6V connecting wires, using copper wires of 4 square millimeters or more (nickel plates cannot be used).
2: Successfully starting a motorcycle requires higher battery requirements, requiring 6 15C-20C power batteries or 12 10C-15C power batteries (recommended power battery models: for SONY VTC4, VTC4A, VTC5A, VTC6), and the motorcycle requires a charging and voltage stabilizing circuit
3: Strictly follow the wiring diagram for 0V, 4.2V, 8.4V, and 12.6V, and do not touch any parts on the board when welding the wires
