DC Bias RF Broadband Isolator 10-6000MHz DC Blocker 6GHz RF DC Bias Blocker Low Noise DC Bias Filter for HAM Radio RTL SDR

DC Bias LNA Radio Amplifier 10-6000MHz Microwave Bias Tee 6GHz RF DC Bias Blocker Low Noise DC Bias Filter for HAM Radio RTL SDR
Feature:

1.
Wide Frequency Range: This RF broadband isolator operates within an impressive frequency range of 10-6000MHz, providing broad coverage for various RF signal amplification needs. It ensures stable performance and reliable signal amplification across a wide range of frequencies.

2. High Performance and
Reliability: Made with high-quality materials, this DC blocker delivers consistent and reliable performance. Its wide frequency range allows for stable gain, low noise coefficient, and a large dynamic range, ensuring optimal signal quality and integrity.

3.
Extended Communication Range: The LNA radio amplifier is advantageous in increasing the communication range. It is particularly suitable for various RF front-end circuits in applications such as shortwave radios, FM receivers, cable TV signal amplifiers, GPS satellite navigation systems, Bluetooth devices ( 2.4G ), and WiFi receivers that require low-noise and small-signal RF amplification.

4. Compact and

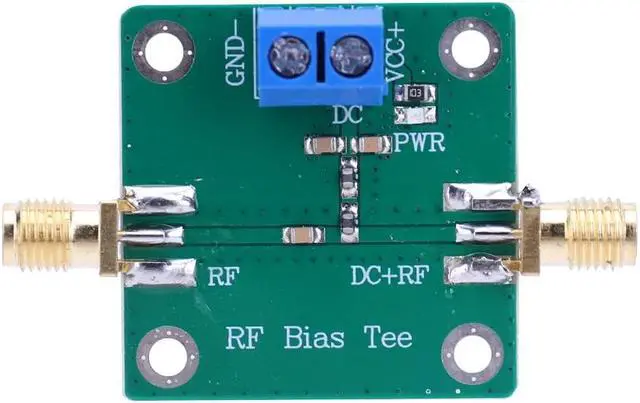

Aesthetically Designed Circuit Board: With its well-organized circuit board layout, this microwave bias tee not only performs exceptionally but also has an aesthetically pleasing design. Its compact size and low power consumption make it ideal for integration into various circuit designs.

5.
Versatile Applications: This RF DC bias blocker can serve as an ideal amplification buffer in various circuit configurations. It finds application in improving signal performance in a range of electronic circuits, offering enhanced functionality to meet different requirements.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: RF Broadband Isolator
Frequency range: 10 - 6000MHz
Insertion loss: 0.3 dB@512MHz 0.45 dB@1575MHz
High voltage: 50V
High current: 500mA
RF connector SMA-K (external screw inner hole)
System impedance: 50 Ohm
Product dimensions: 53 x 33 x 10mm/ 2.1 x 1.3 x 0.4 inch
Product use:
1. RF power supply for active antennas

2. Output isolation of broadband amplifiers
3. Communication data injection through RF terminal
Wiring method:
1.
DC: external DC power supply
2.
RF: RF signal terminal (this port can only transmit RF signals)
3.
RF+DC: RF DC bias (this port can transmit RF and DC bias)
4.
GND-: common ground for DC supply
5.
VCC+: DC power supply side
Product description:

1. This is a 10 - 6000MHz RF broadband signal amplifier board.

2. High quality materials are used for stable and reliable performance.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x RF Broadband Isolator
