12V Relay Output Mudule Support High Or Low Level Trigger Relay Board with Optocoupler Isolation Electronic Components(12V 2S)

5V 12V 24V Relay Module Trigger Board 1 2 4 6 8 Channel Relay Output Mudule Support High Or Low Level Trigger with Optocoupler Isolation Electronic Components
Features:
1.
Versatile Relay Modules: These 5V, 12V, and 24V relay modules offer a range of options to suit different voltage requirements. They are perfect for controlling various devices and can be used in single-board microcontroller development, home appliance control, and more.
2.
High-Quality Components: These relay modules are built with genuine relays that ensure reliable performance. The high-quality Songle relays used in the design provide durability and efficient functionality.
3. Easy Installation and
Wiring: With fixed screw holes around the board, these 1 2 4 6 8 way relay modules offer convenient installation and secure mounting. The independent wiring of the relay contacts adds an extra layer of safety and reliability to their design.
4.
Wide Application Compatibility: These optocoupler relays feature standard interfaces, making them compatible with a variety of development boards such as 51/AVR/AVR/ARM platforms. They are suitable for use in industrial settings, PLC control systems, home automation, and more.
5. Powerful and
Reliable: Each relay module trigger board in this series is capable of handling AC250V 10A or DC30V 10A loads. They provide strong and reliable performance for controlling a wide range of devices and high-current loads.
Specification:
Origin: Mainland China
Type: Relay
Condition: New
Model Number: Channel Relay Module
Product Introduction:

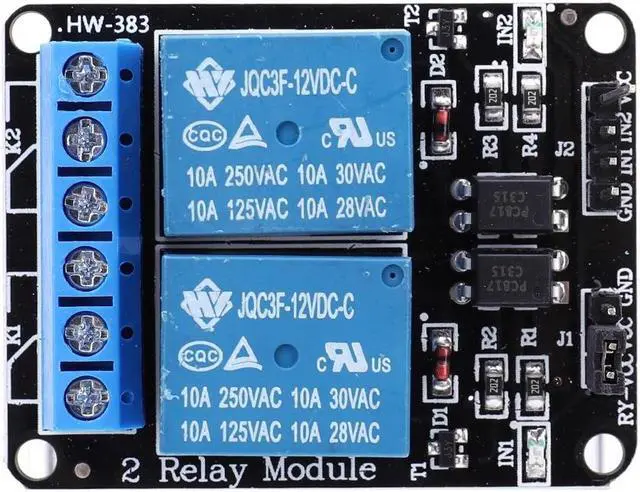

5V 2-channel relay module, 12V 2-channel relay module, 24V 2-channel relay module

1. The board is surrounded by 4 fixing screw holes, hole diameter 3.1 mm, easy to install and fix.
2. The relay is made of high quality Songle relay, single-pole double-throw. A common terminal, a normally open terminal, a normally closed terminal

3. Optocoupler isolation, good anti-interference.

4. Low level suction, high level release. Absorbed when the status indicator light, release the status indicator light off
5. VCC is the system power supply, JD_VCC is the relay power supply. Insert the jumper cap can
Electrical parameters:
Supply voltage: 5VDC, 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC
Usage:

1. Support all microcontroller control

2. Industrial field
3. PLC control

4. Home intelligent control
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Relay Module (Optional Type)
