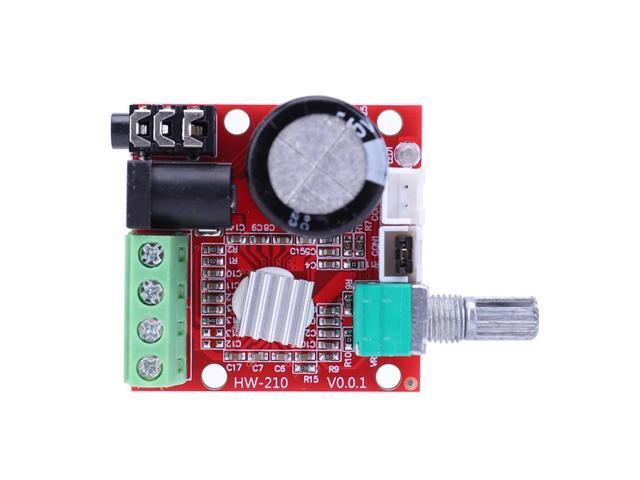

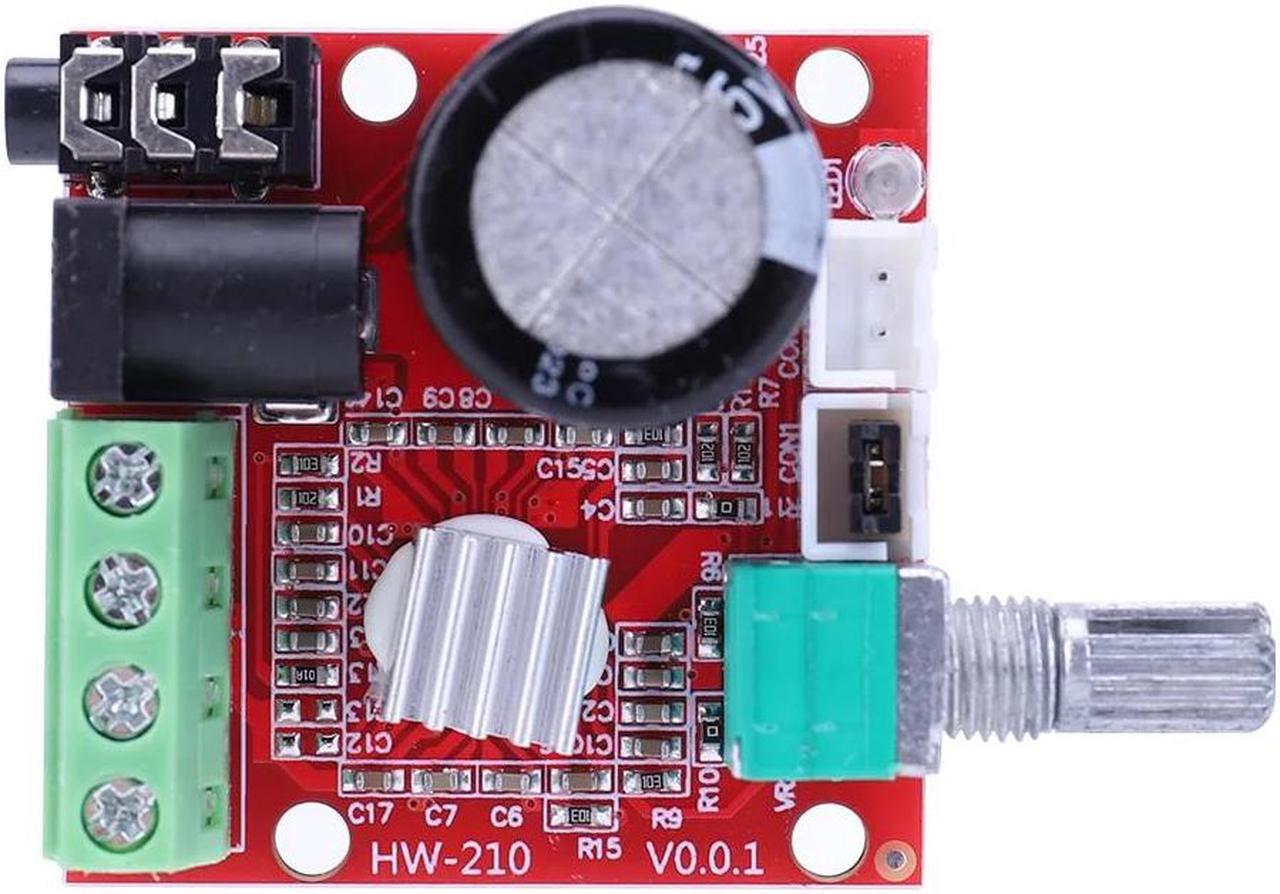

Wireless Audio Receiver DC 8V-12V PAM8610 Mini Hi-Fi Audio Stereo Amplifier Board Dual Channel D Class 3.5MM Input Jack

PAM8610 Audio Receiver Amplifier Board Module Part Dual Channel 2x10W Digital Music Amplifiers Module DC 8V-12V 3.5MM Input Jack
Features:

1.
High-Quality Audio: This pam8610 audio receiver amplifier board module part provides high-quality sound with clean, distortion-free output, delivering a listening experience that is both enjoyable and immersive.

2.
Compact & Convenient Design: With its small size and standard 3.5 mm stereo audio input interface, this digital music amplifiers module is easy to use and install, making it suitable for a variety of DIY audio projects.

3.
Flexible Volume Control: The mini hi-fi audio stereo amplifier board features a fully enclosed volume control potentiometer, allowing you to adjust the volume according to your preferences and create a personalized listening experience.

4.
Advanced IC Technology: The power amplifier uses an original PAM8610 D-class power amplifier chip from American company Longding Microelectronics, which provides up to 10W+10W output power, ensuring optimal sound quality and performance.
5.
FCC-Compliant & High-Quality Components: All components used in mini hi-fi audio stereo amplifier board are genuine and high-quality, and the board layout conforms to FCC standards, ensuring long-term stability and reliable performance.
Overview:
When the supply voltage is 8V-12V DC, the PAM8610 can deliver 10W+10W output power to a 4 load with high quality sound
Compact board with standard 3.5MM stereo audio input jack for easy audio input With a fully enclosed volume adjustment potentiometer, you can adjust the volume as you wish, very flexible and easy to use as well as install
The PAM8610 pure class D amplifier chip from Lundin Microelectronics is used as the amplifier IC, providing a maximum power of 10W+10W and a beautiful sound quality.
The circuit board components are neatly laid out in accordance with the US FCC standards, and all components used are genuine and can be used for long term stability.
Specification:
Origin: Mainland China
Type: Voltage Regulator
Condition: New
Application: Speaker
Model Number: 12V Mini Hi-Fi PAM8610 Audio Stereo Amplifier Board
Voltage: DC8V-12V
Can drive the speaker: 10W-15W, 4 ohm-8 ohm
Built-in power-on impact sound elimination circuit, no power-on impact sound
Product size: 40*40*22mm/ 1.57 * 1.57 * 0.86 inches
Note

1. The power supply voltage should not exceed 12V

2. The 4 wires connected to the speaker are completely independent, no common connection is allowed

3. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Mini Hi-Fi Audio Stereo Amplifier Board
