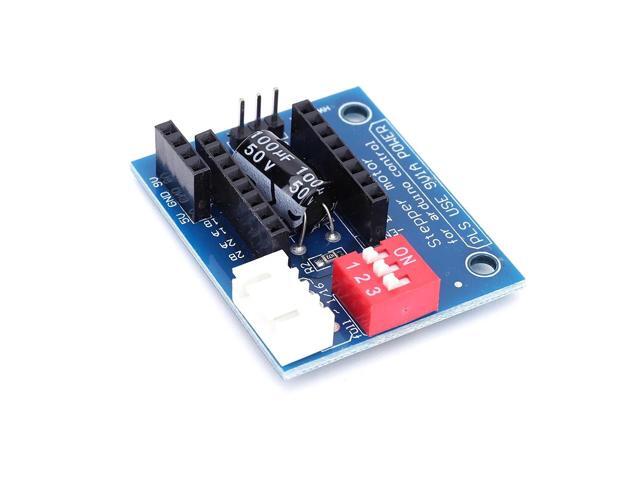

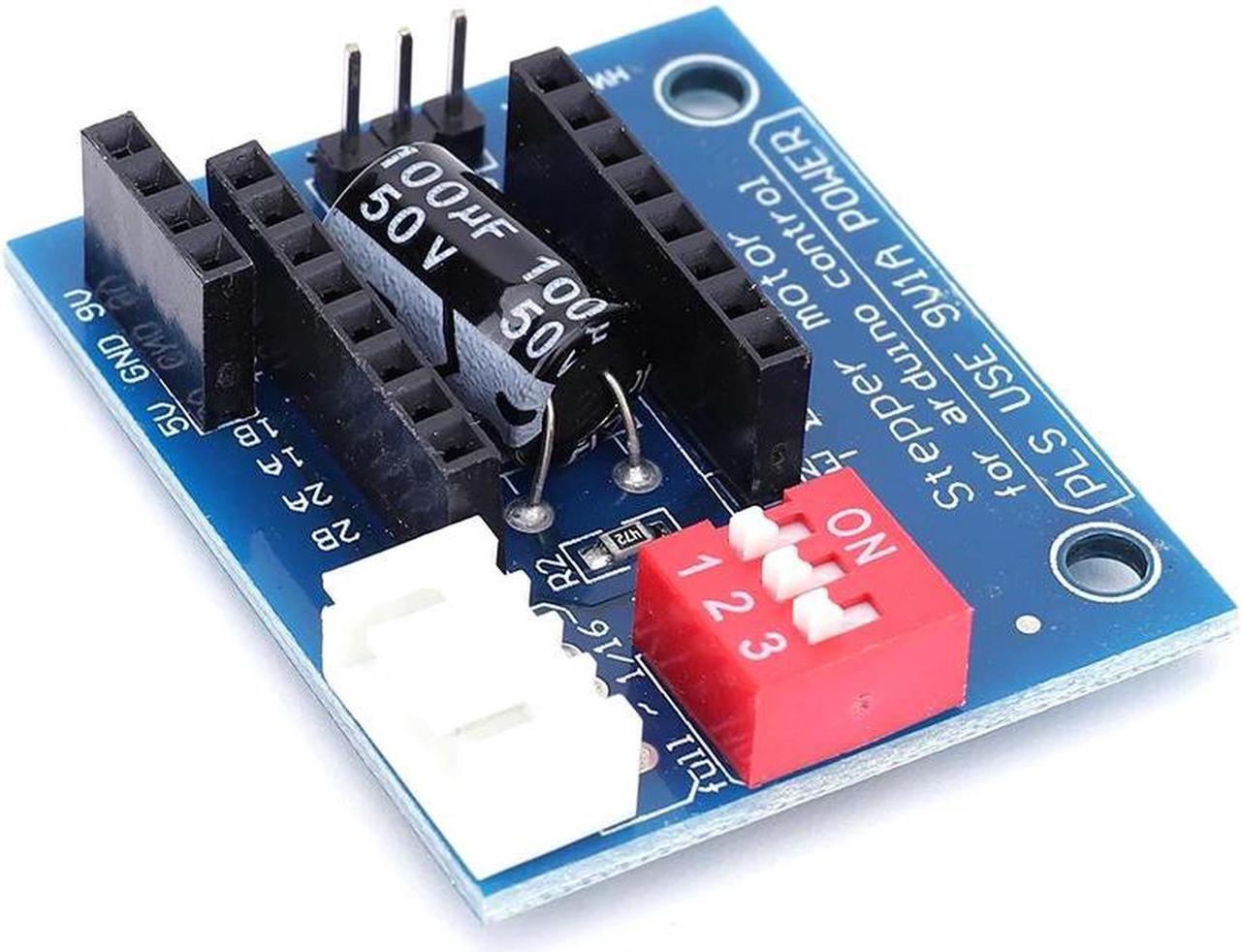

DRV8825 Stepper Motor Driver Control Extension Board 3D Printer Stepper Motor PCB Board

DRV8825 3D Printer Control Board Shielded Module Stepper Motor Driver Control Extension Board
Feature:
1.
Versatile Compatibility: The A4988/DRV8825 Stepper Motor Driver Control Board/Expansion Board is compatible with both A4988 and DRV8825 drivers, offering flexibility for different motor control needs. However, it is crucial to pay attention to the correct orientation during insertion to prevent damaging the drivers.
2.
High Subdivision Capability: The board features jumper settings that allow for 16 subdivisions (for A4988) or 32 subdivisions (for DRV8825). This high level of subdivision provides precise control over stepper motors, ensuring smooth and accurate movements in your 3D printing projects.
3.
Convenient Motor Connections: The Jm connection on the board is specifically designed for connecting the stepper motor, making the wiring process straightforward and hassle-free. By providing a dedicated connection point, this feature saves time and effort during setup.
4.
Easy Power Supply Connection: The Jv connection allows for the connection of a 5V and 12V-24V power supply, enabling seamless integration with various power sources. This versatility ensures compatibility with different setups and applications.
5.
Efficient Driver Signal Output: The connection for jc includes ESDG pins that correspond to the Enable, Step, Dir, and Gnd signals of the connected driver. This clear labeling simplifies the wiring process and ensures accurate signal transmission, enhancing the overall performance of your 3D printer.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: Stepper Motor Driver Control Board
1. A4988/DRV8825 can be used, pay attention to the direction when inserting, otherwise the driver may be burned.
2. Jumper are hit to ON DP position indicates 16 subdivision (4988) or 32 subdivision (8825).
3. Jm connects the motor.
4. Jv connect 5V and 12V-24V power supply
5. for Jc's ESDG corresponds to the EnableStepDirGnd drive signal output on the connection respectively.
Special Reminder:
Pay attention to the direction when installing, otherwise it may burn the driver or even the motherboard.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*3D Printer Control Board Shielded Module
