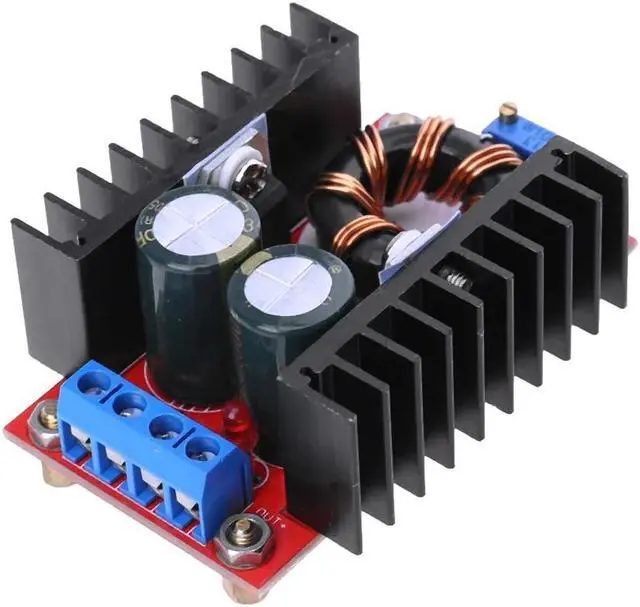

150W DC-DC Boost Converter 10-32V To 12-35V 10A Laptop Voltage Charge Board Adjustable DC-DC Booster Board Module

150W DC-DC Boost Converter Step Up Power Supply Module 10-32V to 12-35V Adjustable 10A Laptop Voltage Charge Board
Feature:

1.
Versatile Voltage Adjustment: This module has a wide input voltage range of 10-32V and an adjustable output voltage range of 12-35V, making it ideal for a wide range of applications.

2.
High Output Power: With a maximum output power of up to 150W (when using a fan), this module can easily drive laptops and other devices with high power requirements.

3.
High Conversion Efficiency: The module boasts an impressive conversion efficiency of up to 94%, which means less wasted power and more efficient performance.

4.
Industrial-Grade Operating Temperature: Designed to operate in temperatures ranging from -40 to +85, this module is engineered to withstand harsh environmental conditions.

5.
Wide Application Range: This module can be used as a regulated power supply for electronic equipment, a power source for laptops and other digital devices, a battery charger, or as a system's primary power source. It can also be used to power projects that require a higher voltage than your input voltage.
Specification:
Module: Non isolated boost module
Input method: IN+positive input, IN - negative input
Output method: OUT+positive output, OUT - negative output
Wiring method: solderless, terminal
Input voltage: 10-32V
Output voltage: DC 12-35 V (adjustable)
Output current: 6A (MAX)
Input current: 10A (MAX) (If it exceeds 10A, please strengthen heat dissipation)
Output power:
Free cooling 100W (MAX) with fan 150W (MAX)
Easily drive a 65W 90W laptop, including a dual core 12V battery with a regular 19V 3.42A laptop, with a module temperature of approximately 45 degrees Celsius.
Conversion efficiency: 94% (measured at 16V input and 19V output 2. ) (for reference only)
Working temperature: Industrial grade (-40 to+85 ) (If the ambient temperature exceeds 40, please reduce the power or add a fan)
Full load temperature rise: 45
No-load current: typical 25mA
Short circuit protection: None (please install an overcurrent protector in the input)
Input reverse protection: None, connected in series with two tubes at the input
Size: 65 * 23 * 56mm/ 2.55 * 0.90 * 2.20 inch
Net weight: 64g
Warm Tips:
The output power of this module is influenced by various factors such as the front-end power supply and back-end load, in addition to the load-bearing capacity of the module itself; The following data are the results measured by professional equipment, without considering other factors. The power module is a type of electronic component, please purchase it with caution for those without electronic expertise.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x DC-DC Boost Converter
