ESP8266 WiFi Internet of Things Development Board CP2102 WiFi Module Based ESP8266 ESP-12E Module Board Programmable

ESP8266 Wireless Module CH340/CP2102 WiFi Internet of Things Development Board Based ESP8266 ESP-12E Module Board Programmable
Specification:

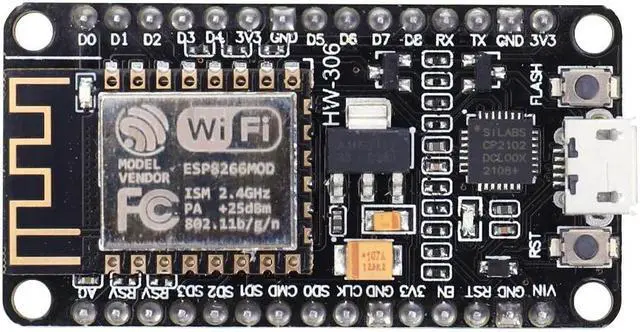

ESP8266 CP2102
By exporting all the pins of the ESP8266-12E WIFI module or ESP8266-12F WIFI module, the download program for the ESP8266 WIFI module can be directly developed.
With FLASH and RST buttons
11 */O pin
1 * ADC pin
Features:
Open source, interactive, programmable, low-cost, simple, intelligent, supporting WI-FI
Advanced APIs suitable for hardware IO can significantly reduce redundant work in configuring and operating hardware.
Nodejs style network API
Event driven API for network applications,
This helps developers write code that runs in Nodejs style on a 5mm * 5mmsized MCU.
Greatly accelerate your IoT application development process.
1. ESP8266 has IO pins

2. No need to download reset
Size: 48 * 25 * 10mm/ 1.88 * 0.98 * 0.39 inch
ESP8266 CH340
The product is a development board based on Anxinke's ESP12E WiFi module. We have added peripheral circuits to it for easy learning and development. The CH340G serial port chip used in the peripheral circuit has stable performance and is very convenient for debugging. Simply connect it to a computer using an mrico USB cable, and you can download programs for debugging. You can also use specialized software to burn firmware
WiFi module parameters:
802.11 b/g/n
Passed FCC wireless certification
Built in Tensilica L106 ultra low power 32-bit micro MCU, with main frequency support of 80 MHz and 160 MHz, and support for RTOS
Built in 10bit high-precision ADC
Built in TCP/IP protocol stack
Built in TR switch, balun, LNA, power amplifier, and matching network
Built in PLL, voltage regulator, and power management components, with an output power of+20dBm in 802.11 b mode
Aggregation of A-MPDU and A-MSDU and protection interval of 0.4 s
WiFi @ 2.4GH z, supports WPA/WPA2 security mode
Support for AT remote upgrade and cloud OTA upgrade
Support STA/AP/STA+AP working mode
Support for Smart Config functionality (including Android and for iOS devices)
HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
Deep sleep maintains a current of 10uA and a turn off current of less than 5uA
Wake up, connect, and transmit data packets within 2ms
Power consumption in standby mode is less than 1.0 mW (DTIM3)
Working temperature range: -40 -125
Size: 59 * 31 * 10mm/ 2.32 * 1.22 * 0.39 inch
ESP8266 WiFi Base
Power supply method: 6-24V power supply through DC power socket
If you need a compatible NodeMcu Lua WIFI V3 development board, you can purchase it separately
Size: 60 * 60 * 10mm/ 2.36 * 2.36 * 0.39 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 * ESP8266 CP2102 WiFi Module
or
1 * ESP8266 CH340 WiFi Module
or
1 * ESP8266 Base
