AD9833 Programmable Microprocessor Sine Square Wave DDS Signal Generator Module 2.3V-5.5V Serial Port Module

AD9833 Programmable Microprocessor Sine Square Wave Serial Interface Module DDS Signal Generator Module
Specification:
Origin: Mainland China
Type: Module
Condition: New
Supply Voltage: 2.3 to 5.5 V
Model Number: DDS Signal Generator
1. The AD9833 is a low-power, programmable sine waveform generator required for generating waveforms in all types of waveform detection, realisation, and time domain reflectometer (TDR) applications.

2. The output frequency and phase are software programmable and can be easily adjusted. No external components are required. The frequency register is 28 bits wide: clocked at 25 MHz for 0.1 Hz resolution; the AD9833 is clocked at 1 MHz with resolution tunable to 0.004 Hz.

3. Write through the serial interface line. The serial interface operates at clock frequencies up to 40 MHz and is compatible with DSP and microcontroller standards. The device is powered by a 2.3V 5.5V supply.

4. Has a power-down function (SLEEP). This allows unused parts of the device to be switched off, thus minimising the power consumption, for example, switching off the DAC when generating the output clock.

5. The standard serial interface allows the device to be connected directly to different microprocessors. The device uses an external serial clock to write data or information to the control device.
3-wire SPI interface
Extended temperature range: -40C to + 105C
Power-down options:
Update rate: 25 (large)
VOUT large: 0.65 V Small VOUT: 38 mV
VOUT temperature coefficient: 200
Input high voltage: 1.7 - 2.8V
Input low voltage: 0.5 - 0.7V
Input Current: 10uA
Input capacitance: 3pF
Operating temperature range: -40C to +105C, typical specification 25C

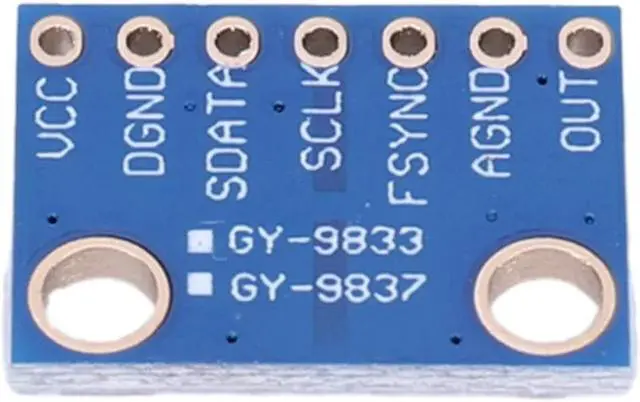

Size: 17x12x3mm/ 0.67 x 0.47 x 0.12 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x AD9833 Module
