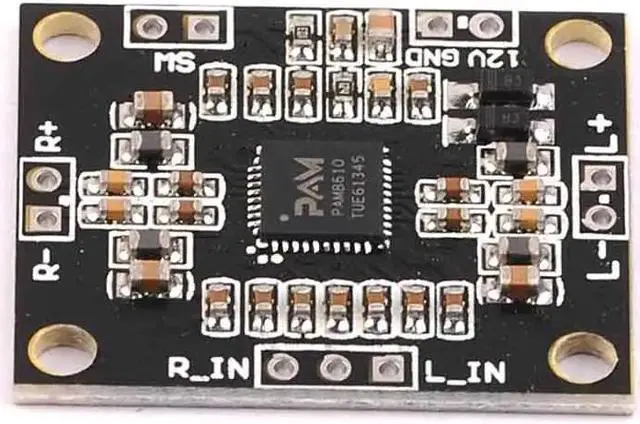

PAM8610 Power Audio Amplifier Board Dual Channel Mini Stereo AMP Audio Amplify Board 2 * 15W AMP Class D Low Distortion

PAM8610 Digital Stereo Audio Amplifier Board Dual Channel Mini Stereo AMP Audio Amplify Board 2 * 15W 12V AMP Class D Low Distortion
Feature:

1.
High Efficiency: This D-class Digital Amplifier Board offers exceptional efficiency, ensuring that power is utilized effectively and not wasted as heat. With its efficient design, it maximizes the output power while minimizing energy consumption, making it an excellent choice for various audio applications.

2.
Compact Size: Despite its powerful performance, this Digital Stereo Audio Amplifier Board features a compact and space-saving design. Its small form factor makes it easy to integrate into different setups or projects where space is limited. You can enjoy high-quality audio without compromising on size or portability.

3.
Low Distortion: With its low distortion capabilities, this Power Audio Amplifier Board delivers clean and accurate sound reproduction. It minimizes any unwanted distortion or noise that could affect the audio quality, ensuring a pure and immersive listening experience. Whether you're using it for professional audio equipment or personal projects, you can expect exceptional sound clarity.

4.
Versatile Applications: This D-class Mini Stereo AMP Audio Amplify Board is highly versatile and suitable for a wide range of applications. It can be used in audio systems, home theaters, car audio installations, DIY projects, and more. Its flexibility allows you to tailor it to your specific needs and create a customized audio setup.

5.
Reliable Performance: Built with quality components and designed for durability, this Digital Stereo Amplifier Module delivers reliable performance over time. It is engineered to withstand continuous use and provide stable output, ensuring consistent and high-quality audio reproduction. You can rely on this amplifier board for long-term usage without worrying about frequent repairs or replacements.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Supply Voltage: 7V-15V V
Model Number: Digital Stereo Amplifier Board
Power supply voltage: DC 7V-15V
Output power: 15w+15w (8 loads)
Efficiency: 90%
Shutdown current: 4uA
Quiescent current; 20mA
Signal-to-noise ratio: 86%
Total harmonic distortion: 5W / 1KHz / 8 ---- 0.1 %
Frequency range: 20Hz-20KHz
Input impedance: 15K
Output impedance: 4-8
Power amplifier board size: 30mmx25mmx 2.5 mm/ 1.18 x 0.98 x 0.1 inch
how to use:

1. The power supply voltage is limited to 16.5V, please do not exceed this voltage.

2. Recommended power supply is 12v, 3A power supply filter is better
3. 4-8 inch stereo speakers are recommended.

4. Do not short the audio outputs to each other or to ground.

5. Check carefully before power on to ensure that the wiring is correct before power on
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Digital Amplifier Board
