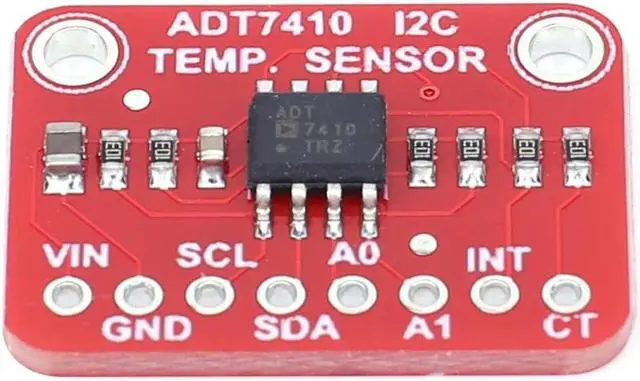

Development Board Temperature Sensor Development Tools High Accuracy I2C ADT7410 Temperature Sensor Breakout Board

Temperature Sensor Development Tools High Accuracy I2C ADT7410 Temperature Sensor Breakout Board 2.7V -5V Module 2 Address Pins
Feature:

1.
High Precision: This temperature sensor provides high-precision temperature readings with a resolution of 16 bits and an accuracy of 0.5C, making it an excellent choice for applications requiring precise temperature control.

2. Easy to
Connect: Simply connect the sensor to your microcontroller or single-board computer to get reliable temperature readings.

3.
Multiple Address Pins: With two address pins, up to four sensors can be connected to one I2C bus, allowing multiple temperature measurements with ease.

4. Interrupt and
Critical Alert Pins: The sensor features interrupt and critical alert pins that allow you to set temperature thresholds and receive notifications when they are exceeded.

5. Wide Power and
Logic Range: With a wide power and logic range of 2.7V to 5.5V, this sensor is compatible with various devices and easy to integrate into your project.
Specification:
Temperature sensor type:
Typical input voltage: 2.7V -5V DC
Interface: Digital
Communication protocol: I2C interface
The maximum temperature resolution is 16 bits ( 0.0078 per lsb), with a default of 13 bits ( 0.0625 per lsb).
High precision temperature tolerance:
0.5 C within the range of -40 C to+105 C ( 2.7 V to 3.6 V)
0.4 C within the range of -40 C to+105 C ( 3.0 V)
Configurable I2C addresses allow up to four sensors on the I2C bus
Running through I2C, only two shared lines are required
Size: 23.3 x 16.5 x 3.2 mm/ 0.91 x 0.64 x 0.12 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Temperature Sensor Development Board
