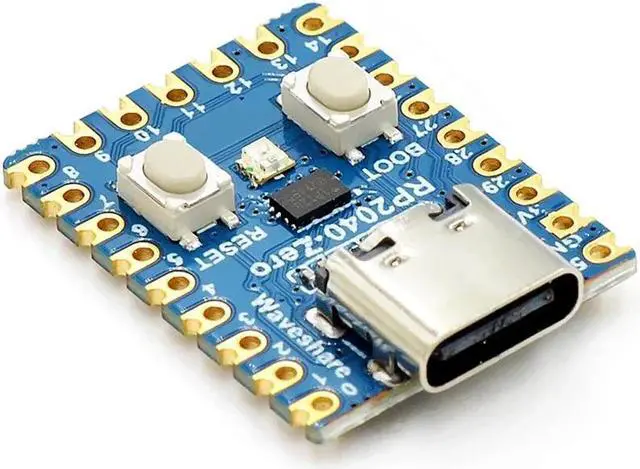

Development Board Module RP2040-Zero 133MHz Operating Frequency RP2040 Mini Development Board 29 GPIO Pins(No Pin)

RP2040-Zero Development Board Module Microcontroller RP2040 Development Module Dual Core Processor 29 GPIO Pins for Raspberry Pi
Feature:

1. Compact Design with
Full Pin-out: The RP2040-Zero is a mini development board that utilizes a half-hole technology to provide complete access to all unused pins on the for Raspberry Pi RP2040 chip, making it a good choice for custom board designs.

2.
Powerful RP2040 Microcontroller: Designed for Raspberry Pi, the RP2040 microcontroller chip provides dual-core ARM Cortex M0+ processors that can run at speeds of up to 133MHz with a flexible clock.

3. Large Memory and
Flash Storage: With 264KB of SRAM and 2MB of onboard flash storage, the RP2040-Zero offers ample space for storing and running complex programs.

4.
Versatile GPIO Options: The RP2040-Zero have a 29 GPIO pins that can be configured according to user needs, making it easy to develop and integrate custom devices. It also includes 2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 16 controllable PWM channels.

5.
Advanced Sensors: The RP2040-Zero board has a built-in temperature sensor, onboard clock and timer, low-power sleep and hibernation modes, and supports USB 1.1 host and device. Additionally, it has 8 programmable I/O (PIO) state machines that support customized peripheral devices.
Specification:
Origin: Mainland China
Color: Blue
Material: PCB
Option: No Pin, with Pin (optional)
Applicable: for Raspberry Pi RP2040 Zero
Size: About 23.5 x18mm/ 9.25 x 7.08 inch
Weight: 7g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Development Board Module (No/With Pin)
