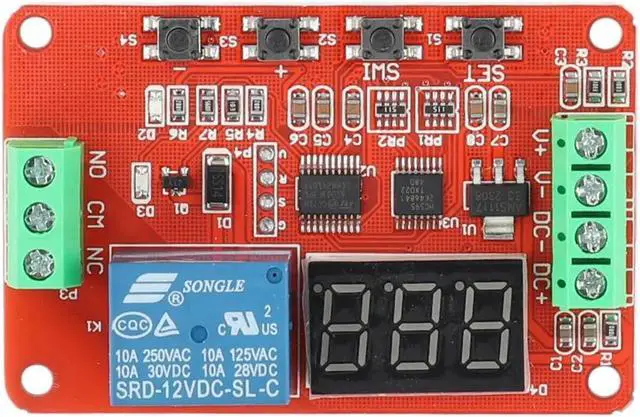

DVB01 Charge Discharge Protection Module DC 12V Charge Discharge Monitor Controller Electronic Components(DC12V)

DVB01 Digital Display Window Voltage Comparator DC 5V 12V 24V Voltage Measurement Charge Discharge Monitor Electronic Components
Specification:
Origin: Mainland China
Type: Module
Condition: New
Product Size: 68.00 x 44.00 x 17.00 mm/ 2.68 x 1.73 x 0.67 inch
1. DVB01 module is a multi-functional voltage monitoring controller, adopting industrial grade microcontroller as the main control unit, with wide measuring range and high precision.

2. The controller is preset with 5 different functions and can be customized and added with other specific functions according to user's needs.

3. The module is carefully processed and made of genuine high-quality components, with stable performance, and can be widely used in a variety of voltage measurement and control class occasions.
Electrical Parameters:

1.
Working voltage: DC 5V, 12V, 24V three optional (should not exceed the nominal voltage of +/-10%)

2.
Operating current: less than 90mA at 5V (less than 12mA when the relay is not in action, less than 3mA when the display is closed)
Less than 50mA at 12V (less than 12mA when the relay is not activated, less than 3mA when the display is closed)
Less than 35mA at 24V (less than 12mA when the relay is not activated, less than 3mA when the display is turned off)

3.
Operating temperature: recommended -20-60 (limit range -30-70)
4.
Measuring range: 0- 99.9V

5.
Load capacity: Maximum load capacity of relay normally open port: DC 0-30V/10A, AC 0-250V/10A
Relay normally closed port maximum load capacity: DC 0-28V/10A, AC 0-125V/10A
Module Interface:
Module voltage input: there are 4-wire interfaces, all interfaces have terminals for user convenience
1.
DC+: Positive pole of DC power supply
2.
DC-: Negative pole of DC power supply
3.
V+: measurement voltage positive pole
4.
V-: negative pole of measuring voltage
Relay load output: 3-wire interface, all interfaces have terminals
1.
NO: Normally open relay interface, the relay is suspended before the absorption, after the absorption and COM short connection
2.
COM: relay common interface
3.
NC: Normally closed relay interface, shorted to COM before the relay is absorbed, shorted to COM after the relay is absorbed.
Note:
The controller will automatically determine which of the preset voltages V1 and V2 is the upper limit voltage and which is the lower limit voltage according to different functions, so users do not need to be entangled in the question of who is bigger and who is smaller, and who is first and who is last when setting up.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Digital Voltage Comparator Module
