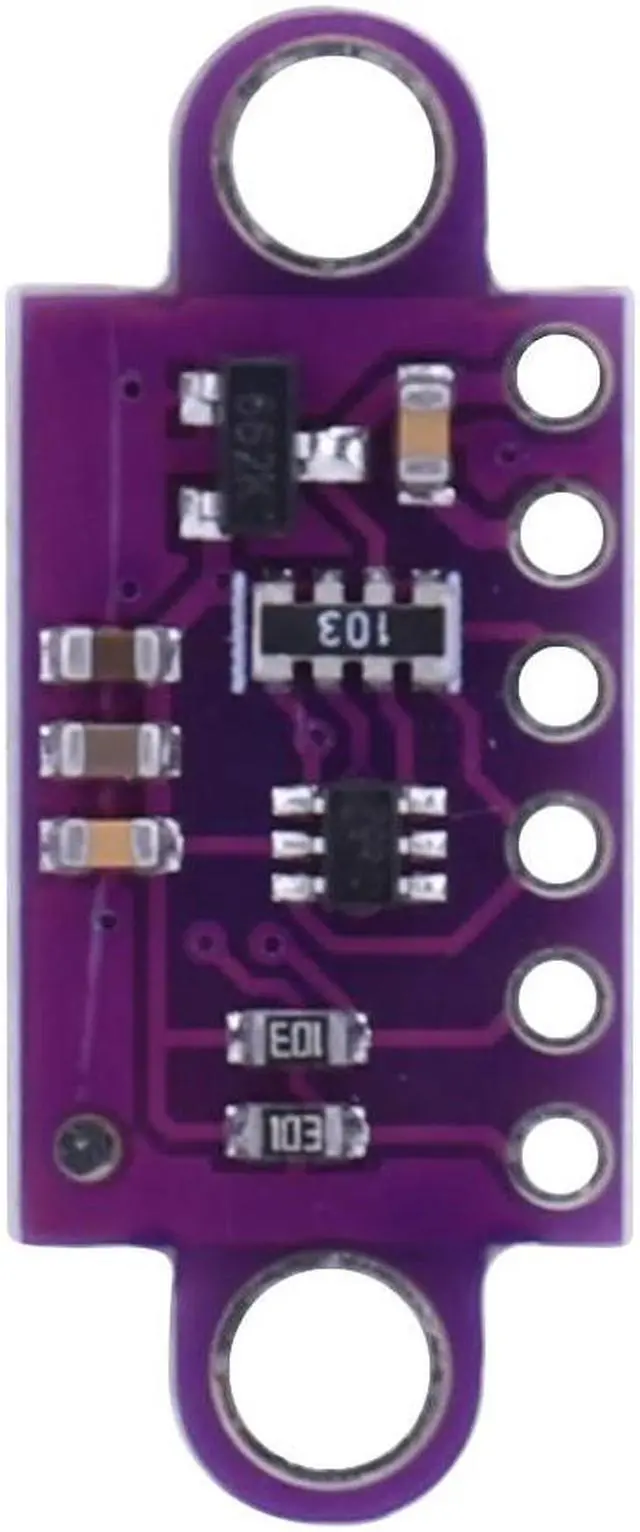

Time-of-Flight Laser Ranging Sensor GY-VL53L0XV2 Module I2C TWI ToF Laser Ranging Sensor Module Purple Board

GY-VL53L0XV2 Time-of-Flight Laser Ranging Sensor Module 3.3V /5V DIY Laser Distance Module ToF Laser Ranging Sensor Board
Feature:

1.
High Precision: The VL53L0X sensor module uses ST's FlightSense technology to accurately measure the time it takes for an infrared laser pulse to reach the closest object and reflect back to the detector. This allows for highly precise distance measurements, with a resolution of 1mm and a range of up to 2m.

2.
Wide Compatibility: The GY-VL53L0XV2 sensor module features an I2C interface, providing compatibility with various microcontrollers and devices. Additionally, the sensor module is designed to work at 2.8V, ensuring easy integration with different systems.

3.
Easy-to-Use: With its compact size and user-friendly design, this sensor module is easy to use and integrate into your project, making it ideal for hobbyists, makers, and students alike.

4.
Additional Pins: In addition to the I2C interface, this sensor module also features two additional pins: a shutdown input and an interrupt output. These pins provide additional functionality and flexibility for your project.

5.
Convenient Breakout Board: The GY-VL53L0XV2 sensor module comes equipped with a convenient breakout board, solving the challenges associated with using the small LGA package of the VL53L0X IC. The breakout board ensures ease of use and compatibility with various systems while maintaining a small overall size.
Specification:
VDD stabilizes 2.8 V output. Almost 150 mA can be used to power external components. (If you want to bypass the internal voltage regulator, you can use this pin as a 2.8 V input and disconnect the VIN. )
VIN This is the main power connection from 2.6 V to 5.5 V. The SCL and SDA level converters pull the I2C line up to this level.
Ground (0 V) connection of GND power supply. Your I2C control source must also share a grounding point with the board.
SDA Level shifted I2C data cable: HIGH for VIN, LOW for 0 V
SCL level conversion I2C clock line: high level is VIN, low level is 0 V
XSHUT: This pin is a low-level effective shutdown input; By default, the circuit board pulls it up to the VDD to enable the sensor. Driving this pin to a low level will cause the sensor to enter a hardware standby state. This input has not undergone level conversion.
Size: 25 * 10 * 1mm/ 0.98 * 0.39 * 0.03 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Sensor module
