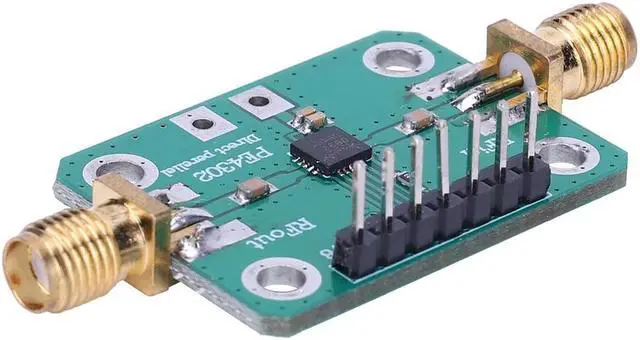

PE4302 RF Attenuator Module Parallel Immediate Mode Numerical Control CNC Attenuator Board 1MHz-4GHz DC 5V 0 To 31.5dB

PE4302 CNC Attenuator Module Parallel Immediate Mode Numerical Control Radio Frequency Attenuator 1MHz-4GHz DC 5V 0 To 31.5 dB
Feature:
1.
PE4302 Digital RF Attenuator: This RF attenuator module features the PE4302 digital RF attenuator, known for its high performance and reliability. It ensures precise and accurate signal attenuation for various RF applications.

2.
Parallel Immediate Mode: The CNC attenuator module operates in a parallel immediate mode, which means it is user-friendly and easy to control. You can quickly adjust the attenuator settings to meet your requirements without any delays or complex configurations.

3.
Wide Bandwidth Coverage: With a wide bandwidth range from 1MHz to 4GHz, this RF attenuator board offers versatility and compatibility with a broad spectrum of RF signals. It allows for seamless integration into different frequency bands and applications.

4.
Programmable Gain Attenuation Range: The radio frequency attenuator supports programmable gain attenuation range from 0 to 31.5 dB. This provides flexibility in adjusting signal strength according to specific needs and helps optimize signal quality in different scenarios.

5. Multiple Control Modes and
Power-On State Selection: The CNC attenuator board supports both parallel and serial control modes, allowing you to choose the control interface that suits your setup. Additionally, it has a power-on state selection feature for customized power-up behavior.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: RF Attenuator Module
Supply voltage: 5.0V
Number of control bits: 6Bit
Control step: 0.5 dB
Control range: 0----. 5dB
Insertion loss: 2dB (typical)
Rise rate: 0.2 us
Descent rate: 0.2 us
Large input: 20dBm (100mW)
Connector: SMA-Female
Wideband: 1MHz~4GHz (different attenuation values for different frequencies)
Product size: 53 x 25 x 10mm/ 2.1 x 1.0 x 0.4 inch
Product Description:
RF CNC attenuator step 0.5 dB, a total of 6 bits can control the range 0-- 31.5 dB, for signal strength control, can also be used for signal modulation.
Product features:

1. This is a PE4302 CNC attenuator module.

2. The parallel immediate mode is simple and easy to use.

3. Wide bandwidth, from 1MHz to 4GHz.

4. Programmable gain control attenuation range from 0 to 31.5DB.

5. The module supports parallel and serial modes and power-up state selection.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x RF Attenuator Module
