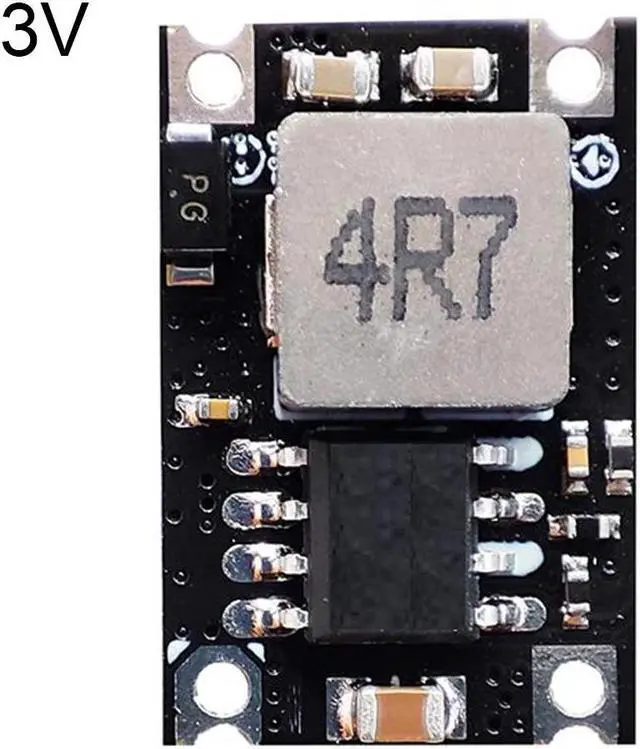

DC-DC Buck Converter Module Adjustable Constant Current Driver 5V-30V To 3.3V 3A for Car Motorcycle Battery Charging

DC-DC Buck Converter Module Adjustable Outputs Buck Converter Board 5V-30V To 3.3V 5V 9V 12V for Car Motorcycle Battery Charging
Specification:
Origin: Mainland China
Type: Voltage Regulator
Condition: New
Model Number: Step Down Converter Board Module
Input Voltage: 5v~30v (Must Be Higher Than The Output Voltage) Preferably Below 28v.
Output Voltage: 3.3 v/5v, Other Voltage Values Can Be Customized.
Output Current: 3a (Max) Normal 1.61. 8a Over Plus Heat Sinking
Conversion Efficiency: 96% (Maximum)
Output Ripple: <30mv
Output Accuracy: 0.1 v
No-Load Current: <1ma
Operating Temperature: -40~+85
Operating Humidity: 20%~90
Size: 17*12*4mm (L*W*H)
Pcb Layers: 2 Layer Board
Shutdown Function: Not Supported
Heat Dissipation Mode: Natural Heat Dissipation
Installation: Wiring
Whether With Isolation: Without Isolation
Production Process: Machine Labeling, Reflow Soldering
Design Aging Standard: 720 Hours Without Failure
Factory Aging Standard: 72 Hours Without Failure
Service Life: 30, 000 Hours Without Failure (Output Current Does Not Exceed The Rated Value)
Inspection Standard: All Test (Factory Test + Storage Test)
Output Voltage: 3.3 v/5v/9v/12v
Product Size: 17.00 x 12.00 x 4.00 mm/ 0.67 x 0.47 x 0.16 inch
This power supply module is a power supply that can be directly mounted on a printed circuit board and features a power supply for application-specific integrated circuits (ASI
Cs), digital signal processors DSPs, microprocessors, memories, field-programmable gate arrays (FPG
As), and other digital or analog loads.
Note:

1. Input voltage preferably below 28V.

2. Normal current 1.6 - 1.8A over please add heat sink.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Step-Down Power Module
