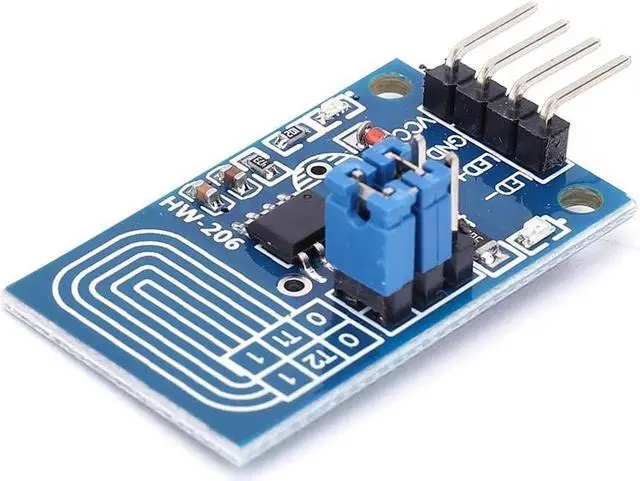

Capacitive Sensor Touch Switch Module 2.4-4.5V Touch Dimmer Module Stepless Dimming Human Body Induction LED Lamp Accessories

Capacitive Sensor Touch Switch Module 2.4 - 4.5V LED Touch Dimmer Switch Module 500MA Anti Power Interference LED Lamp Accessories
Feature:

1. Versatile and
Comprehensive Functionality: This capacitive touch switch module offers a range, including LED input/output pins (LED+/LED-), power supply and ground pins (VCC/GND), and four functions controlled by T1 and T2 pins based on the input state before powering up.

2. Intuitive and
Easy-to-Use Touch Dimming: With the LED's three-stage touch dimming function, users can easily adjust the brightness levels by simply tapping the touch area. The cycle includes low brightness, medium brightness, high brightness, and off.

3. Flexible Wiring Options for
Convenient Connections: The touch switch module comes with an accessible touch area on the right side, allowing users to wire connections as needed. It also includes designated pins for power input, LED connection, and touch interface.

4. Adjustable Sensitivity and Wide Range of
Dimming: Users have the ability to adjust the sensitivity of the module by changing the capacitance value. Higher capacitance provides higher sensitivity, while lower capacitance results in lower sensitivity. Moreover, the module enables users to easily adjust the brightness level of the LED according to their specific needs.

5. Excellent Interference Suppression and
Safety: This touch switch module exhibits excellent resistance to power supply and mobile phone interference, ensuring stable and reliable performance. Additionally, it guarantees high safety standards during installation and usage.
Specification:
Origin: Mainland China
Working voltage: 2.4 - 4.5V
Maximum output current: 500MA
Size: About 33x20x10mm/ 1.29 x 0.78 x 0.39 inch
PCB board hole radius: 1.44 mm
PCB board hole spacing: 15.6 mm
Packaging weight: 4.0 g/each
Usage:
When touching (with a touch duration less than 550ms), the light can be controlled to turn on or off.
Long press touch (touch duration greater than 550ms) can achieve stepless brightness adjustment of the light.
Click touch and long press touch can be used freely at any time, and their functions are not interfered with or restricted.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Capacitive Sensor Touch Switch Module
