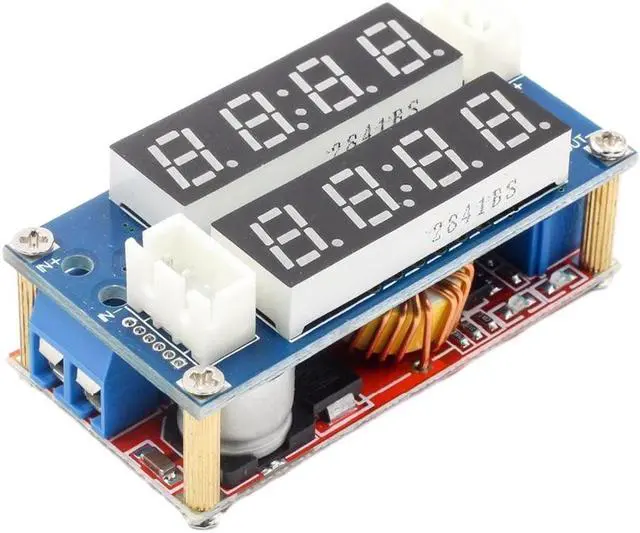

XL4015 DC To DC Power Converter Module Adjustable CC CV Lithium Battery Step Down Charging Board with LED Display(with LED)

XL4015 CC CV LED Driver Step Down Charging Board 5A CC CV Lithium Battery Step Down Charging Board Adjustable with LED Display
Features:
1. High Power, Low
Ripple: Experience the superior capabilities of our XL4015 5A DC to DC power converter module, delivering high power output with minimal ripple for reliable performance in demanding applications.
2.
Three-in-One Functionality: Enjoy the versatility of this CC CV LED driver step down charging board, serving as a robust voltage regulator with overcurrent protection, a flexible lithium battery charger suitable for various battery types and solar/wind energy applications, and a high-power LED constant current driver for exceptional lighting solutions.
3. Constant Voltage and
Current Modes: Profit from the lithium charger step down module's dual-mode operation, allowing precise control in both constant voltage and constant current modes. An intuitive indicator light keeps you informed about the currently active mode.
4.
Adjustable Charging Parameters: As a CC CV lithium battery step down charging board, easily customize the float charging voltage and charging current to suit your specific needs. A dedicated indicator light provides clear status updates, indicating whether the battery is actively charging or fully charged.
5.
Built-in Current Limiting Protection: Rest easy knowing that our high power DC-DC buck converter board incorporates reliable current limiting protection, safeguarding against damage even in the event of an output short circuit. Your board remains safe and secure, ensuring long-lasting performance and peace of mind.
Specification:
Origin: Mainland China
Type: Module
Condition: New

1.
Input Mode: In+Input Positive, In-Input Negative

2.
Output Mode: OUT+Output Positive, OUT-Output Negative

3.
Input Voltage: 4-38V

4.
Output Voltage: 1.25 -36V Continuously Adjustable

5.
Output Current: Adjustable

6.
Output Power: Maximum 75W

7.
Operating Temperature: -40~+85 Degrees

8.
Operating Frequency: 180KHz

9.
Conversion Efficiency: Up To 96%

10.
Short-Circuit Protection: Yes (Limit Current 8A)

11.
Over-Temperature Protection: Yes (Automatically Shut Down The Output After Over-Temperature)

12.
Input Reverse Protection: No, (If Necessary, Please Input Series Of High-Current Two Tubes)

13.
Installation: Four 3mm Dowels

14.
Wiring: Terminal Or Welding Terminal, V-IN For Input, V-OUT For Output.

15.
Module Size: 51*26*8mm/ 1.99 * 1.01 * 0.31 in

16.
Weight: 25g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*DC to DC Power Converter Module
