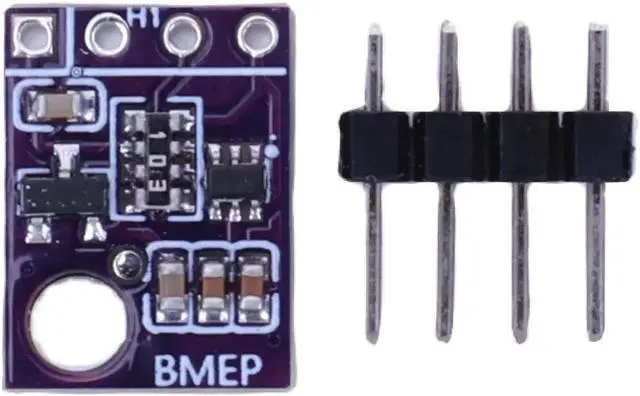

BMP280 Digital Barometric Pressure Altitude Sensor Module I2C SPI Atmospheric Pressure Sensor Module High Precision

BME280 Atmospheric Barometric Pressure Sensor I2C SPI Temperature Humidity Barometric Pressure Sensor High Precision for Arduino
Features:
1. Accurate and
Low Power: BMP280, a precision altimeter atmospheric pressure sensor, offers an impressive accuracy of 0.12 hPa (equivalent to 1m) while consuming only 2.7 uA of power. Its compact 8-pin metal lid LGA package includes both pressure and temperature measurement capabilities. The sensor supports IC communication interface.
2.
Precise Sensor Integration: BME280 is a digital barometric pressure altitude sensor module soldered onto the PCB. This advanced sensor doesn't just measure pressure and temperature but also humidity. It features I2C and SPI interfaces (supporting both 3-wire and 4-wire SPI).
3.
Wide Operating Range: The BME280 atmospheric pressure sensor module operates within a temperature range of -40C to +85C, humidity range of 0-100%, and pressure range of 300-1100 hPa. It provides accurate readings with resolutions of 0.01C for temperature, 0.008 % for humidity, and 0.18P a for pressure.
4.
High Accuracy: With temperature accuracy of 1C, humidity accuracy of 3%, and pressure accuracy of 1Pa, the BME280 digital atmospheric air pressure sensor ensures precise and reliable measurements.
5.
Compact Design: Measuring at just 14.00 x 10.00 x 3.00 mm ( 0.55 x 0.39 x 0.12 inch), the BME280 atmospheric barometric pressure sensor boasts a small form factor, ensuring easy integration into various projects or applications.
Specification:
Origin: Mainland China
Type: Module
Condition: New
1. BMP280 belongs to the digital barometric pressure sensor, with an accuracy of 0.12 hPa (equivalent to 1 meter), the sensor power consumption of only 2.7 uA. BMP280 is extremely compact 8-pin metal cap LGA package. Pressure and temperature measurement functions are included. The barometric pressure sensor supports IC communication interface.
Input voltage: DC5V
Communication Method: Standard Chuan C communication protocol
Chip Used: BMP280
Barometric Pressure Range: 300-1100hPa
2. BME280 is a precision sensor, soldered on PCB. The sensor not only measures pressure and temperature, but also humidity. It uses I2C and SPI (supports 3-wire, 4-wire SPI) interfaces.
Supply Voltage: 1.8 - 5V DC
Interfaces: I2C (up to 3.4 MHz), SPI (up to 10 MHz)
Operating Range:
Temperature: -40 to +85C
Humidity: 0 to 100%
Pressure: 300 to 1100 hPa
Solution:
Temperature: 0.01C
Humidity: 0.008 %
Pressure: 0.18 Pa
Accuracy:
Temperature: +-1C
Humidity: +-3%
Pressure: +-1Pa
I2C Address
SDO low: 0x76
SDO High: 0x77
Product Size: 14.00 x 10.00 x 3.00 mm/ 0.55 x 0.39 x 0.12 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Precision Altimeter Atmospheric Pressure Sensor
