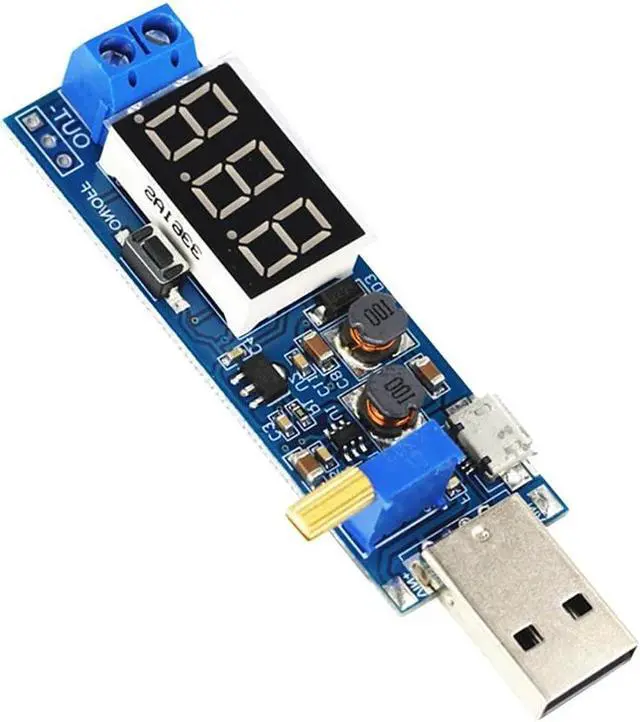

DC-DC 5V to 3.3V 9V 12V 24V USB Step UP/Down Power Supply Module Support Low Power Mode USB Boost/Buck Power Supply Module

DC-DC USB Step UP/Down Power Supply Module 5V To 3.3V 9V 12V 24V Adjustable Boost Buck Converter Support Low Power Mode
Feature:

1. Easy to
Use: With this USB boost/step-down power supply module, you can easily adjust the voltage you need by simply adjusting the potentiometer. It allows for easy and precise control of output voltage from 1.2V to 24V.

2.
Convenient ON/OFF Display: The module provides an ON/OFF display screen that is easy to read and use, enabling you to accurately monitor the status of your device.

3. Low Power Mode & Sleep Mode: This module supports a low power mode, which helps to conserve power and extend the life of your batteries. With sleep mode enabled, the module consumes less power when not in use, helping to reduce overall power consumption.

4.
Multiple Input Options: This module supports standard USB and micro USB inputs, as well as solder pads for additional input voltage options.

5.
Precision Voltage Regulation: The module uses a multi-turn precision adjustable potentiometer for voltage regulation, allowing for accurate and stable output voltage.
Specification:
Input voltage: DC 3.5 -12V;
Output voltage: DC 1.2 -24V;
Output power:
Input 1.2 -2V, output power within 2W
Input 2V-20V, output power within 3W
Input 20V-24V, output power within 2.5W
Display: 3-digit Nixie tube display
Size: 80 * 20 * 14mm/ 3.14 * 0.78 * 0.55 inch

1. Close the output with one click;

2. Provide ON/OFF display screen;

3. Support low power consumption mode;

4. Support sleep mode;

5. Supports standard USB, Micro USB, and pad input voltage;
6. potentiometer with rotary handle.
Usage steps:

1. Input voltage from standard USB or Micro USB or 'VIN+' and 'VIN -';

2. Open the display screen;

3. Adjust the potentiometer to obtain the required voltage;

4. Connect the load.
Application:

1. Ordinary power supply;

2. Battery charger;
3. LED driving power supply;

4. Instrument voltage display;

5. Test instruments;

6. Circuit testing;

7. Power conversion.
Note:
It is not a high-power power supply, please use it within the power range.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x USB Step UP/Down Power Supply Module
