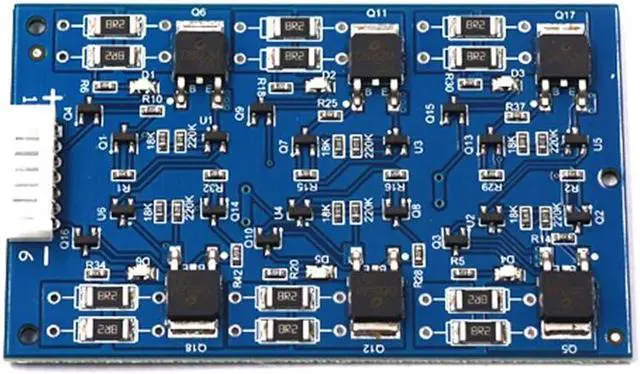

2.7V/16V Lithium Titanate Battery Equalization Circuit BMS Balance 1S~6S Farad Capacitor Module

" 2.7V /16V Farad Capacitor Protection Board BMS Balance 1S~6S Lithium Titanate Battery Equalization Circuit
Feature:
1.
Protective: This protection board is designed to safeguard both Farad capacitors and 2.7V lithium titanium batteries, providing comprehensive protection for your electrical components.
2.
Adjustable Protection Voltage Range: By replacing the voltage divider resistor, you can easily fine-tune the protection voltage within the range of 2.5V to 3V (higher balancing voltages require higher resistance power resistors).
3.
Efficient Circuit Operation: The circuit operates by discharging any individual battery or capacitor that exceeds the balancing voltage through a triode, converting excess energy into heat dissipating through the power resistor.
4.
High Precision Balancing Voltage: The protection board offers a high precision balancing voltage with an accuracy of 1%, ensuring accurate and reliable balancing for your batteries or capacitors.
5. Versatility for
Multiple Configurations: The single-piece protection board supports any 1-6S battery or capacitor configuration. For configurations with fewer than 6S, follow the provided wiring diagram and connect the remaining unused lines accordingly.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Processor Speed: 10
Power supply current: 30
Power supply voltage: 15
Power: 10
Purpose: Farad capacitor protection board balance board
Appearance size: 40*30*20
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to mathe power resistor does not heat up.
2. A certain circuit starts to discharge when it is less than the protection voltage, and it may start to discharge as soon as the battery is connected.

3. When the protection board is protected, a lot of heat will be generated. This is the heat generated by the discharge of the battery exceeding the protection voltage through the triode and resistor.
If the heat cannot be dissipated in time, it will damage the protective board or the battery, so the protective board should have enough space for heat dissipation, and other materials cannot be used to wrap the protective board.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Farad Capacitor Board
