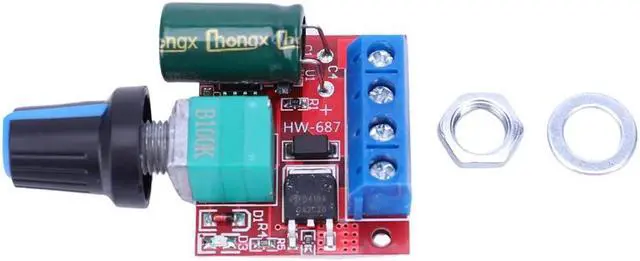

PWM DC Motor Speed Controller Module 5A 90W Motor Speed Regulator Board DC 4.5V-35V Motor Governor Switch Module 20KHZ

PWM DC Motor Speed Controller Module 5A 90W Motor Speed Regulator Board DC 5V-28V Motor Governor Switch Module Adjustable
Feature:

1.
Broad Voltage Range: Our DC motor speed controller module has a working voltage range of DC 4.5V -35V. This makes it suitable for various motor-powered devices, providing customers with versatility in usage.

2. High Output Current and
Power: Our DC led dimming module can output up to 5A current and 90W power (maximum). This feature ensures that the product delivers high-performance results, making it ideal for driving motors in various heavy-duty applications.

3.
Low Static Current: Our DC speed regulator control has a low static current of 7UA, which ensures minimal energy consumption in standby mode. This feature guarantees energy efficiency for customers, saving them money on their electricity bills.

4. Adjustable Duty Cycle and
Frequency: Our motor speed regulator board has adjustable PWM duty cycle from 1%-100% and frequency of 20KHZ. This feature allows customers to customize their motor speed and performance based on their specific needs.

5. Easy to
Install: Our DC motor PWM controller is easy to install and use. Customers simply need to connect the input and output wires correctly, and they can start controlling their motor speed. This feature ensures that the product is user-friendly for customers, saving them time and effort.
Specification:
Origin: Mainland China
Type: Voltage Regulator
Condition: New
Supply Voltage: DC 4.5 -35 V
Model Number: DC Motor Speed Controller Module
Operating voltage: DC 4.5V -35V
Output current: 0-5A
Output power: 90W (max)
Static current: 7UA (standby state)
PWM duty cycle: 1%-100%
PWM frequency: 20KHZ
Product size: 48 x 30 x 12mm/ 1.9 x 1.2 x 0.5 inch
Caution:
1. DC motor governor input is DC power, not directly connected to
AC power (for example: household 220v AC power), otherwise it will burn out.
2. DC power supply positive and negative terminals do not reverse connection, otherwise the speed governor may be damaged.

3. The motor can not be divided into positive and negative, when the running direction is not the same as expected, you can change the direction by adjusting the line sequence.

4. Adjust the potentiometer knob can change the speed governor output duty cycle, the motor speed change.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x DC Motor Speed Controller Module
