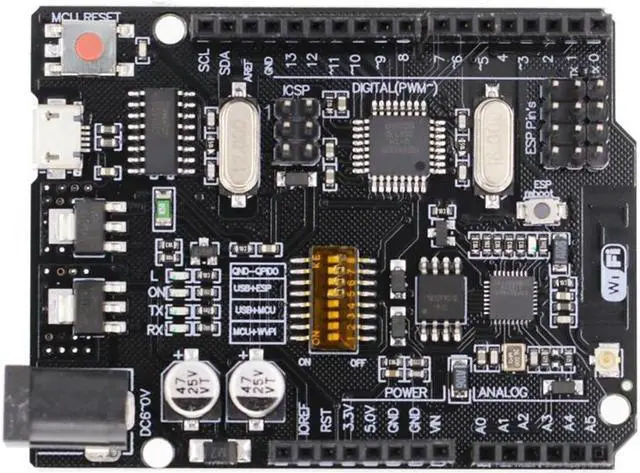

WiFi R3 ATmega328P Development Board 32Mb Memory ESP8266 Module Board USB-TTL CH340G DIP-switch Easy To Use

WiFi R3 ATmega328P Development Board ESP8266 32Mb Memory Board Module USB-TTL CH340G DIP-switch Easy To Use
Feature:

1. Fully Integrated on a
Single Board: This board combines the R3 ATmega328 and WiFi ESP8266 with 32Mb of memory. All modules can work together or separately, each with its own set of pin headers.

2. Convenient Solution for
WiFi-Enabled Projects: Ideal for new projects that require WiFi connectivity, this development board offers a convenient solution to integrate WiFi functionality into your designs.

3. Easy Firmware Updates via
USB: You can easily update the firmware and sketches for both the ATmega328 and ESP8266 using the onboard USB port. It comes equipped with a USB-to-Serial converter (CH340G) for seamless connectivity.

4. Simple to
Use: This board is designed to be user-friendly, making it easy for both beginners and experienced users to work with. Its intuitive interface ensures a smooth development experience.
5.
DIP Switch: The board features DIP switches that allow you to select the module connections as needed. For example, to: USB and ATmega328, USB and ESP8266, ATmega328 and ESP8266.
Specification:
Model: WiFi R3 ATmega328P
Product size: 70 * 54mm/ 2.76 * 2.13 in
Net weight: 22g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Development Board
