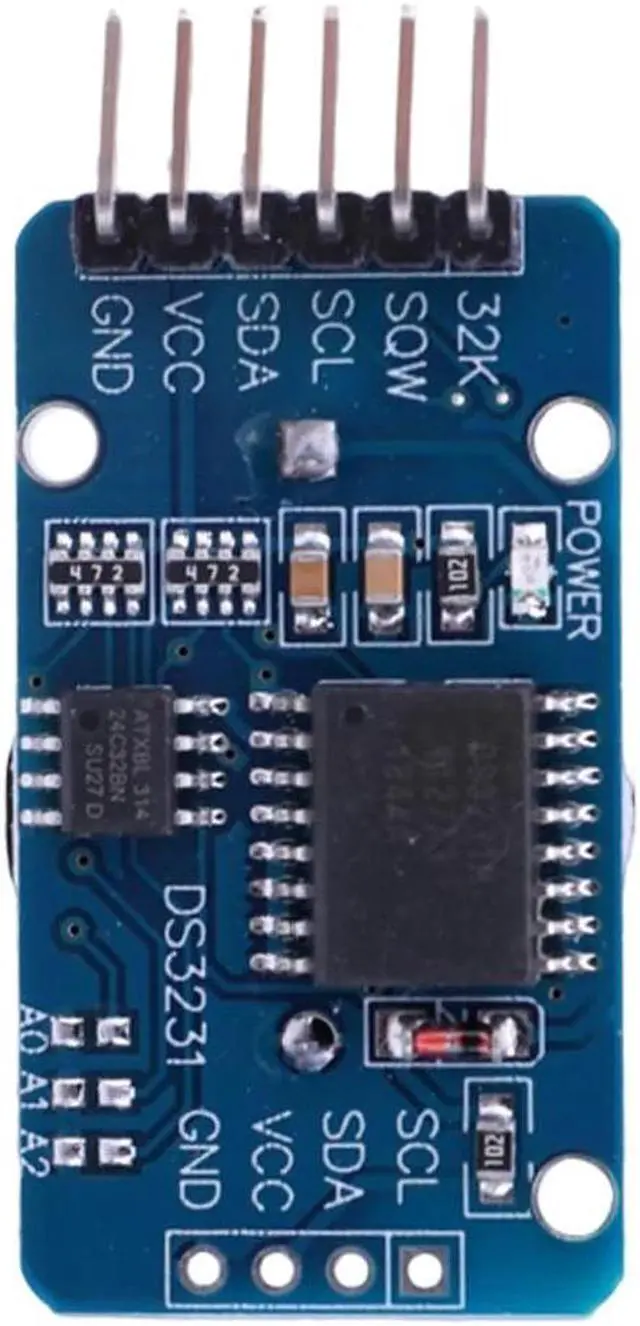

DS3231 High Precision Clock Module IIC AT24C32 RTC Real Time Clock Module 3.3-5.5V With Battery Compact Size

DS3231 Precision Clock Module IIC AT24C32 RTC Real Time Clock Module 3.3 - 5.5V With/without Battery Compact Size
Feature:

1.
High-precision RTC: The DS3231 is an I2C real-time clock (RTC) module that offers high precision at an affordable price. It features an integrated temperature-compensated crystal oscillator (TCXO) and crystal, providing accurate timekeeping capabilities.

2.
Comprehensive Timekeeping Functions: The RTC module stores information such as seconds, minutes, hours, day of the week, date, month, and year. It automatically adjusts the month-end date for months with fewer than 31 days, including leap year corrections. The clock can be set to either a 24-hour format or a 12-hour format with AM/PM indication. It also includes two programmable calendar alarms and a configurable square wave output. Address and data transmission occur through the I2C bidirectional bus.

3.
Temperature-compensated Voltage Reference: This module utilizes a temperature-compensated voltage reference and comparator circuit to monitor the VCC status. It detects power failures, provides reset outputs, and switches to backup power when necessary. Additionally, the /RST monitoring pin can be used as a manual input to generate microprocessor resets.

4. Additional Features and
Flexibility: The DS3231 offers various additional features that enhance system host functionality and provide a wide range of options. It integrates a highly accurate digital temperature sensor that can be accessed via the I2C interface. This sensor provides a 3C accuracy. The on-chip control circuitry allows for automatic power detection and manages power switching between the main power source and the backup power (i. e., low-voltage battery). Even in the event of a main power failure, the module continues to provide timekeeping and temperature functions without any performance impact. The on-chip reset function can restart the system microprocessor when the main power is restored or the voltage returns to an acceptable range.

5.
Satisfaction Guarantee: We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to contact us directly.
Specification:
Specification: with CR2032 or without CR2032 (optional)
Working voltage: 3.3 - 5.5V
Clock chip: high-precision clock chip DS3231
Clock accuracy: within the range of 0-40, with an accuracy of 2ppm and an annual error of about 1 minute
With 2 calendar alarms
Programmable square wave output
Real-time clock generates seconds, minutes, hours, weeks, dates, months and years, and provides leap year compensation valid until 2100
The chip comes with a built-in temperature sensor, with an accuracy of 3
Storage chip: AT24C32 (storage capacity 32K)
IIC bus interface, with a high transmission speed of 400KHz (when the working voltage is 5V)
Can cascade other IIC devices, 24C32 address can be modified by short circuit A0/A1/A2, default address is 0x57
Size: 38mm/ 1.49 inch (length) * 22mm/ 0.86 inch (width) * 14mm/ 0.55 inch (height)
Weight: 8g
Wiring instructions (using FOR Arduino r3 as an example):
SCL-A5
SDA-A4
VCC-5V
GND-GND
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Precision Clock Module
