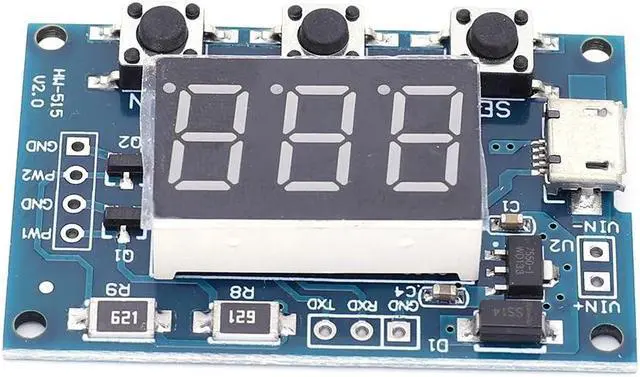

2 Channel Adjustable Duty Ratio PWM Pulse Frequency Module Digital Adjustable PWM Pulse Frequency Duty Cycle Module

2 Channel Adjustable Duty Ratio PWM Pulse Frequency Module Digital PWM Frequency Duty Cycle Control Relative Circuit 1Hz-150KHz
Feature:
1.
Dual Independent PWM Outputs: This module allows for two separate PWM outputs, enabling you to independently set the frequency and duty cycle for each output. This feature provides versatility and flexibility in controlling your devices or motors.
2. Wide Frequency Range with
High Accuracy: The module offers a wide frequency range with high accuracy, ensuring precise control over your PWM signals. The frequency can be set within three ranges.
3.
Serial Communication Capability: The module supports serial communication, allowing for convenient and efficient control of the PWM signals. Through serial communication, you can remotely configure and adjust the module's settings, making it suitable for projects that require remote control or automation.
4.
Easy-to-Use: This PWM module is designed to be user-friendly, offering a straightforward interface for setting up and adjusting the parameters. The frequency, duty cycle, and other settings can be easily configured using simple and intuitive controls.
5. Safe and
Reliable: Safety and reliability are paramount when working with electrical devices and motors. This module ensures the safety and reliability of your PWM signal generation.
Specification:
Origin: Mainland China
Type: Drive IC
Condition: New
Model Number: Signal Generator
Module highlights:

1. Two independent PWM outputs, frequency and duty cycle can be set separately;

2. Wide frequency range and high precision;

3. Serial port communication

1. Module description
Two independent PWM outputs, frequency and duty cycle can be set separately;
The frequencies are divided into three ranges:
1.
XXX (no decimal point): the minimum unit is 1Hz, and the value range is 1Hz~999Hz;
2. XX.
X (decimal point in tens): the minimum unit is 0.1K hz; the value range is 0.1KH z~ 99.9KH z
3. X. X. X. (three digits have a decimal point): the minimum unit is 1Khz; the value range is 1KHz~150KHz
e. g.
Frequency display: 100 means PWM output 100Hz pulse;
54.1 means PWM output 54.1KH z pulse;
1.2. 4. Indicates PWM output 124KHz pulse
Duty cycle value range: 0~100;
The three frequency ranges share one duty cycle, and all setting parameters are saved when power off.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Signal Generator Module
