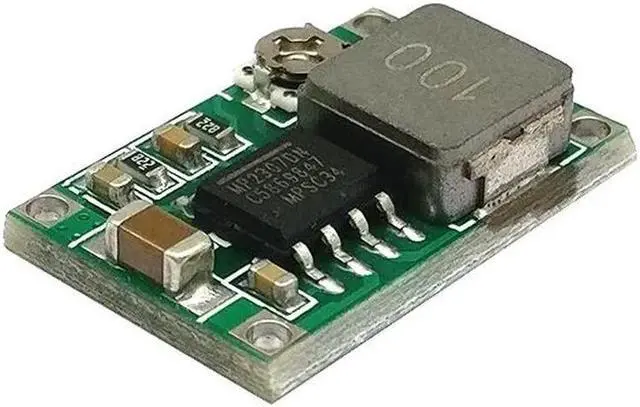

1pcs Mini360 DC-DC Buck Converter Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm
- 1pcs Mini360 DC-DC Buck Converter Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
Module Properties: non-isolated buck
Rectification: synchronous rectification
Input voltage: 4.75V -23V
Output voltage: 1.0V -17V
Output Current: lowering the value of 3A, long 1.8A
Conversion efficiency: 96% (maximum)
Switching Frequency: 340KHz
Output ripple: 30mV (no-load)
Load regulation: 0.5 %
Voltage regulation: 2.5 %
Working temperature: -40 Celsius to +85
Celsius Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
Module Properties: non-isolated buck
Rectification: synchronous rectification
Input voltage: 4.75V -23V
Output voltage: 1.0V -17V
Output Current: lowering the value of 3A, long 1.8A
Conversion efficiency: 96% (maximum)
Switching Frequency: 340KHz
Output ripple: 30mV (no-load)
Load regulation: 0.5 %
Voltage regulation: 2.5 %
Working temperature: -40 Celsius to +85
Celsius Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
