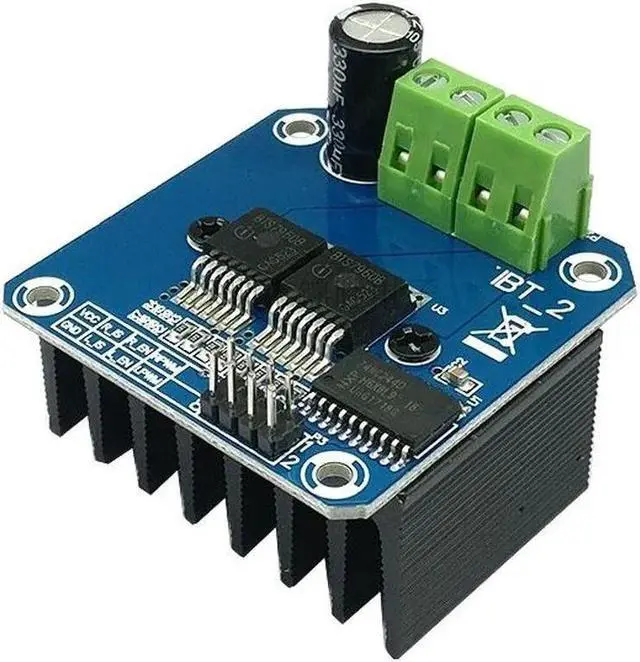

Main image of Double BTS7960 43A H-bridge High-power Motor Driver module/smart car

Shop All YINGHUA Products | Visit Dazella store

Double BTS7960 43A H-bridge High-power Motor Driver module/smart car

Double BTS7960 43A H-bridge High-power Motor Driver module/smart car

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

BTS7960B H-bridge 43A high-power motor driver
Module Overview:
This driver uses chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A
Features:
Double BTS7960 large current (43 A) H bridge driver;
5V isolate with MCU, and effectively protect MCU;
5V power indicator on board;
voltage indication of motor driver output end;
can solder heat sink;
PIN Definition:
1.
RPWM: Right Turn PWM
2.
LPWM: Left Turn PWM
3.
R_EN: Right Turn Enable (High Active)
4.
L_EN: Left Turn Enable (High Active)
5.
R_IS: Right Turn Current Warning (May Leave Floating)
6.
L_IS: Left Turn Current Warning (May Leave Floating)
7.
VCC: (5V)
8. GND
