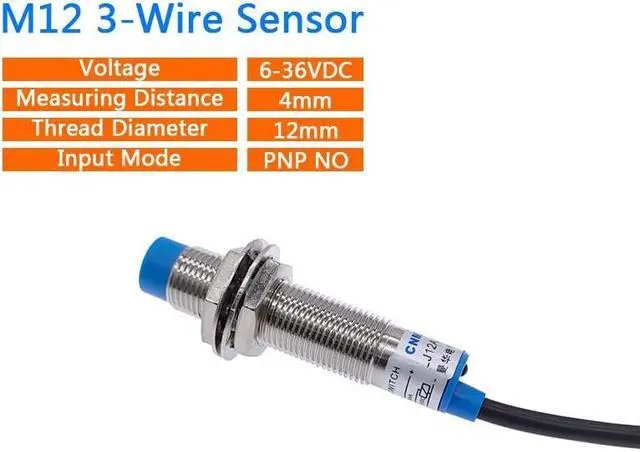

M12 PNP NO Metal Detection Sensor 4mm Distance Waterproof Normally Open NO Normally Closed NC NPN PNP 3-wire Proximity Switch(PNP NO)

M12 PNP NO Metal Detection Sensor 4mm Distance Waterproof Normally Open NO Normally Closed NC NPN PNP 3-wire Proximity Switch(PNP NO)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

[Main Parameter]
Detection distance: 4mm 10%
Set distance: 0~ 3.6 mm
Current: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Delay distance: 10% below of the detection distance
Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object: Iron 15*15*1mm
Response frequency: DC: 0.5 kHz
Supply voltage: DC type: DC12V DC24V DC36V(5~36V)impulse(p-p)10% below
Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
Meterial: (Housing: Nickel plated brass) (Detection surface: ABS)
Protection influence: IP67 (IEC specification)
This product can be applied tocontrol relays, counters, PLC, etc.!
