1Pc Metal detection sensor SN04-N Proximity switch for metal inspection SN04-N2 SN04-P SN04-P2 SN04-Y1 Y2 D1 D2 NPN PNP NC NO(SN04 P2)

SN04-P1: PNP Normally Open 3-Line type 4mm detection distance

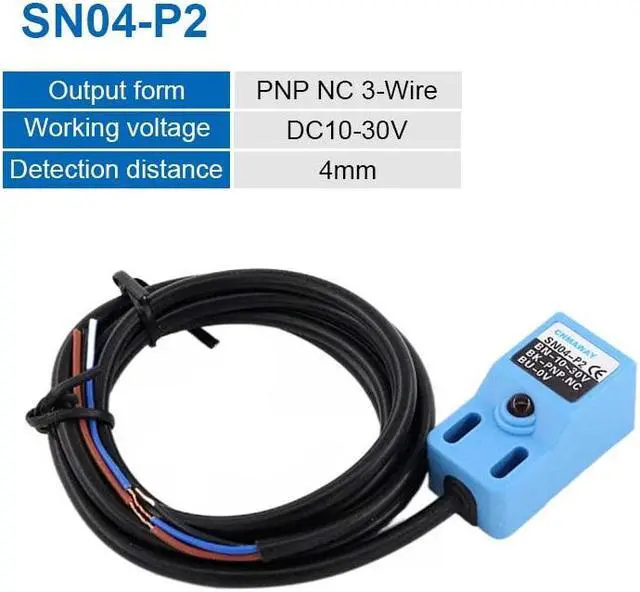

SN04-P2: PNP Normally Close 3-Line type 4mm detection distance
SN04-N1: NPN Normally Open 3-Line type 4mm detection distance
SN04-N2: NPN Normally Close 3-Line type 4mm detection distance
[Main Parameter]
Detection distance: 4mm 10%
Set distance: 0~ 3.8 mm
Delay distance: 10% below of the detection distance
Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object: Iron 18*18*1mm
Response frequency: DC: 0.5 kHz
Supply voltage: DC type: DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below
Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
Meterial: (Housing: Nickel plated brass) (Detection surface: ABS)
Protection influence: IP67 (IEC specification)
This product can be applied to control relays, counters, PLC, etc.!
