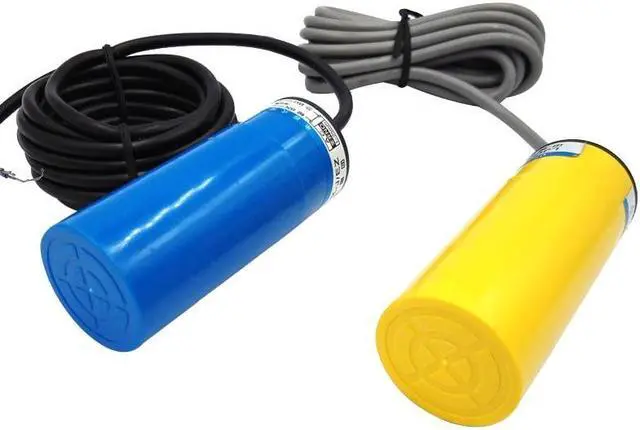

Capacitive proximity switch AC90-250V NC/NO 2-WIRE sensor 34MM LJC34A4-K-J 25MM Detection distance+mounting bracket(ClassA NO)

Class B: Economic type, widely used;;;
Class A: High precision and high quality;;;
NC: means LJC34A4-K-J/DZ normally Close (NC);
NO: means LJC34A4-K-J/EZ normally Open (NO);
[type]: LJC34A4-K-J
[name]: capacitive proximity switch
[shape]: 34 mm in diameter
[detection range]: 0-25 mm adjustable
[work voltage]: AC90-250V
[output mode]: 2-line type
[object]: metals and non metals such as plastics, glass, water, oil, etc.; detection distance with the conductivity of an object to be detected, the dielectric constant, water absorption rate, different volume and different, for connecting metal for obtaining maximum detection distance
