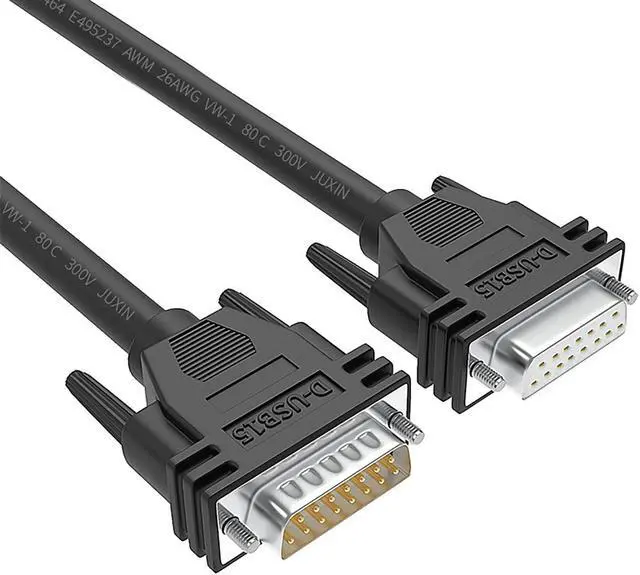

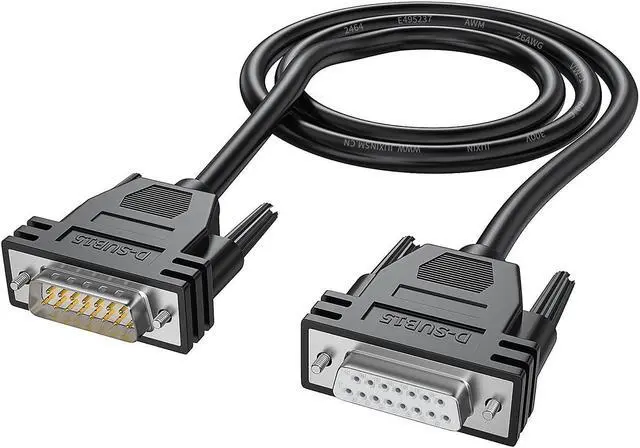

DB15 Cabel Male to Female Double Shielded 10ft/3M,DB 15 Extension Cable Black, 26awg Tinned Copper D-SUB 15 pin Straight Through Cord for CNC, UPS, PLC, Servo Driver.
- DB15 Cable structure: 15*26AWG(11*0.12TC)OD: 1.05mm+AL+Drain+Jacket and plus Tinned copper Braid Shield, OD:7.5mm
- DB15 Extension cable adopts double shielding structure: aluminum foil shielding + metal braided mesh shielding, which can shield EMI / RFI interference signals generated by external electric field
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

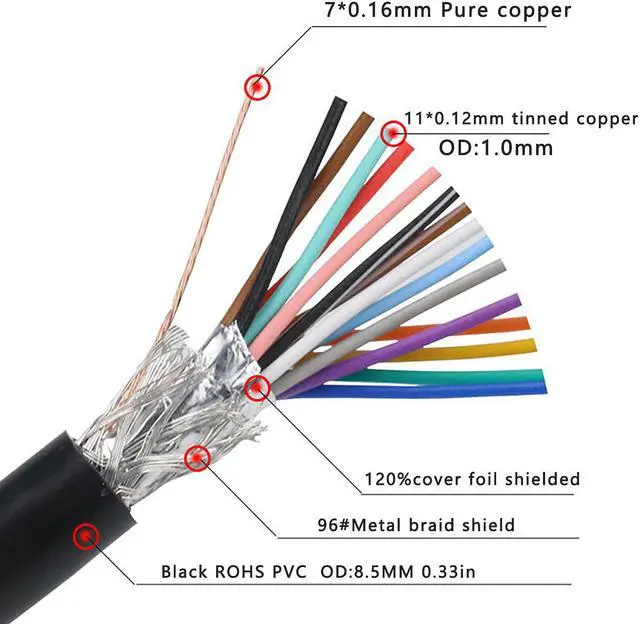

DB15 Cable structure: 15*26AWG(11*
0.12TC )OD: 1.05 mm+AL+Drain+Jacket and plus Tinned copper Braid Shield, OD: 7.5 mm
DB15 Extension cable adopts double shielding structure: aluminum foil shielding + metal braided mesh shielding, which can shield EMI / RFI interference signals generated by external electric field

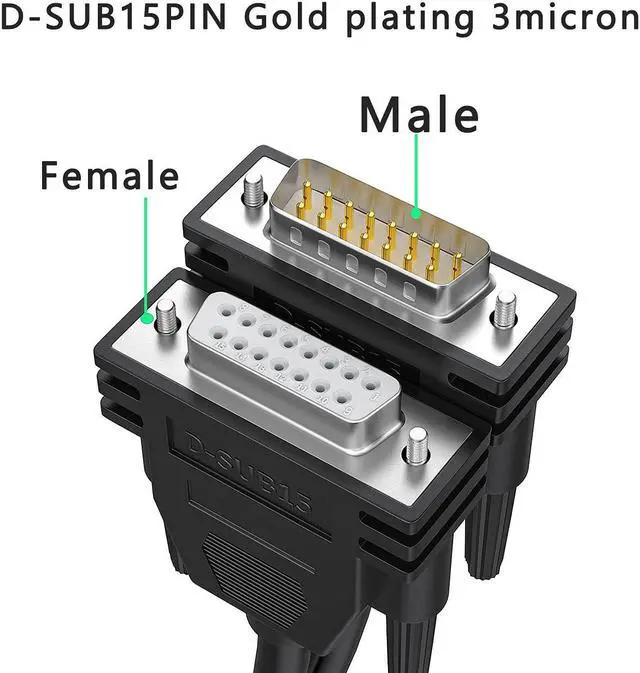

DB15 male and female connector adopt gold-plated 3U PIN, good contact, stable signal transmission, 15PIN connector salt spray time 48H

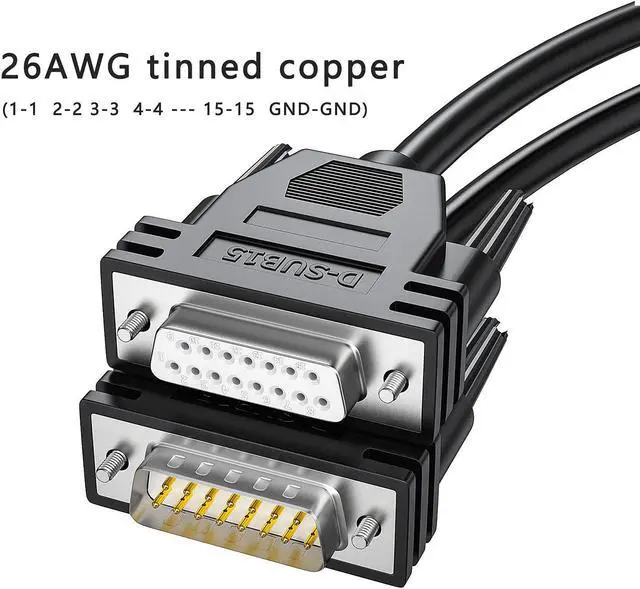

DB15 pin cable Straight-through wiring (i. e. pin 1 to pin 1) design per industry standards: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-purple, 9-gray 10 white, 11 black and white, 12 brown white, 13 pink, 14 light green, 15 light blue
Note: This cable connector is 2 rows of 15 pin, Not Not VGA cable (3 rows of 15 pin), VGA video cannot be transferred
0.12TC )OD: 1.05 mm+AL+Drain+Jacket and plus Tinned copper Braid Shield, OD: 7.5 mm
DB15 Extension cable adopts double shielding structure: aluminum foil shielding + metal braided mesh shielding, which can shield EMI / RFI interference signals generated by external electric field
DB15 male and female connector adopt gold-plated 3U PIN, good contact, stable signal transmission, 15PIN connector salt spray time 48H
DB15 pin cable Straight-through wiring (i. e. pin 1 to pin 1) design per industry standards: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-purple, 9-gray 10 white, 11 black and white, 12 brown white, 13 pink, 14 light green, 15 light blue
Note: This cable connector is 2 rows of 15 pin, Not Not VGA cable (3 rows of 15 pin), VGA video cannot be transferred
