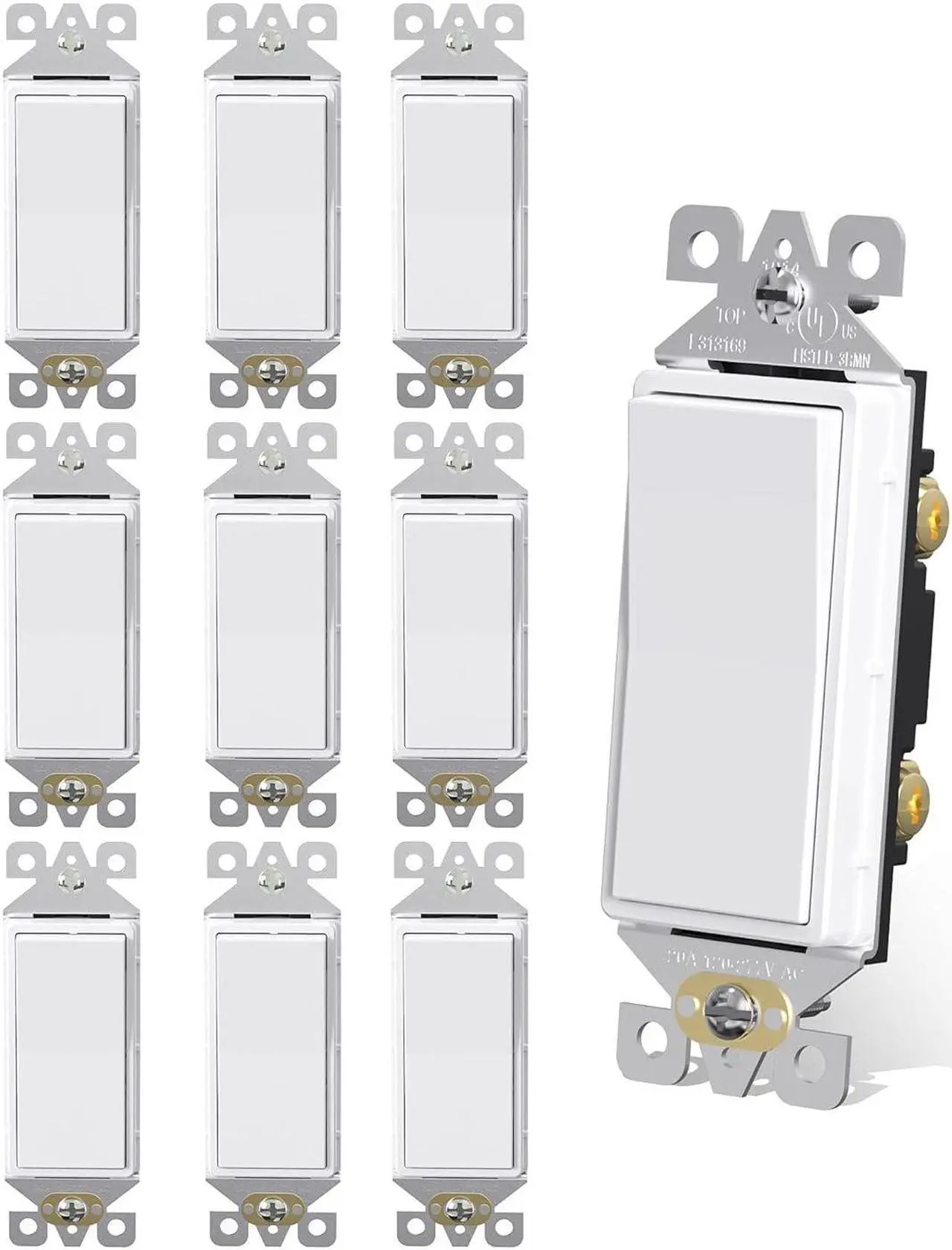

Single Pole Rocker Decora Light Switch, 15 Amp Self-grounding Electrical Light Switches, Residential Grade, UL Listed (50 Pack, White)
- Self-Grounding & Single PoleIt can be automatically connected to a well-grounded metal wall junction box.
- Universal ApplicationWall switch suitable for residential use and most commercial areas that require only 15Amp switches.
- High QualityDecorator rocker switch is made of impact-resistant polycarbonate thermoplastic and solid steel, which is beautiful and durable.
+
+
Overview
Specs
Reviews
Easy InstallationProvide both quick push-in wiring and side wiring. Shallow back body leaves more space for wires in the box.
100% Guarantee & ServiceUL & CUL listed, Backed 30-days free return & free lifetime technical online support within 24 hours.
Product Description
How to Install A Single Pole Decorative Switch from AIDA
1. Connect wires per
WIRING DIAGRAM as follows:

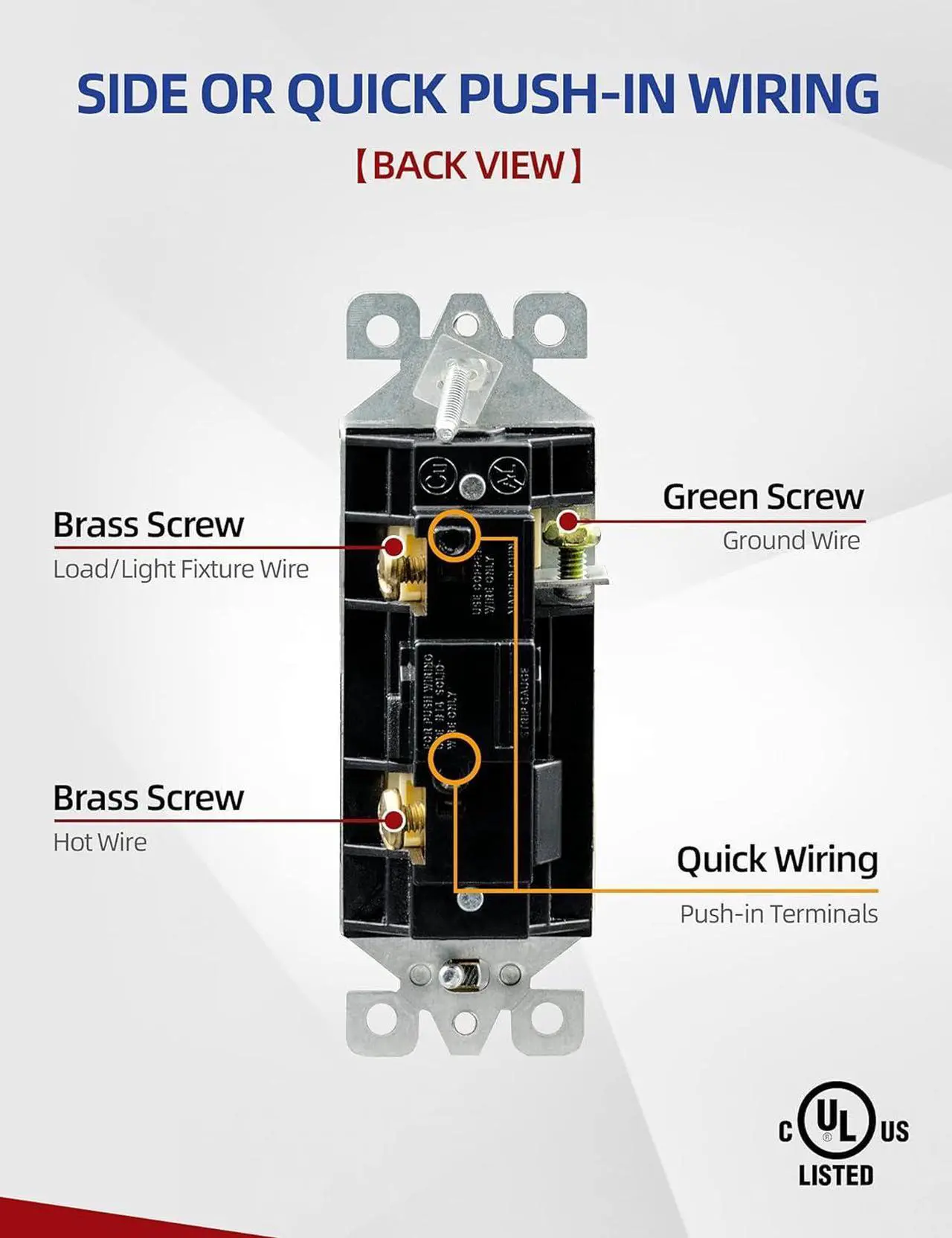

For Side Wire:
Remove approximately 3/4"( 1.9 cm) insulation from wire. Loop wires clockwise 3/4 turn around terminal screws. BLACK (Hot) wire to any BRASS screw, other Black wire to remaining BRASS screw, GREEN or BARE (Ground) wire to GREEN screw. Firmly tighten screws over wire loops.
For Push Wire:
Remove approximately 3/5"( 1.5 cm) insulation per strip gauge from wire. Push #14 AWG solid copper wires into the bottom of any round hole. Push other #14 AWG solid copper wires into the remaining round hole. This device must be properly grounded for electrical shock protection. Connect green or bare grounding wire to the green hex head screw. If the switch must be replaced or rewired after it is push wired, gently press the tip of a small screwdriver in the release slot and back the wire out gradually.
If the switch or push-in terminal become damaged, do not reuse.
2. Mount device in wall box with screws provided and mount wall plate.
3. Restore power at circuit breaker or fuse. Installation is complete.
100% Guarantee & ServiceUL & CUL listed, Backed 30-days free return & free lifetime technical online support within 24 hours.
Product Description
How to Install A Single Pole Decorative Switch from AIDA
1. Connect wires per
WIRING DIAGRAM as follows:
For Side Wire:
Remove approximately 3/4"( 1.9 cm) insulation from wire. Loop wires clockwise 3/4 turn around terminal screws. BLACK (Hot) wire to any BRASS screw, other Black wire to remaining BRASS screw, GREEN or BARE (Ground) wire to GREEN screw. Firmly tighten screws over wire loops.
For Push Wire:
Remove approximately 3/5"( 1.5 cm) insulation per strip gauge from wire. Push #14 AWG solid copper wires into the bottom of any round hole. Push other #14 AWG solid copper wires into the remaining round hole. This device must be properly grounded for electrical shock protection. Connect green or bare grounding wire to the green hex head screw. If the switch must be replaced or rewired after it is push wired, gently press the tip of a small screwdriver in the release slot and back the wire out gradually.
If the switch or push-in terminal become damaged, do not reuse.
2. Mount device in wall box with screws provided and mount wall plate.
3. Restore power at circuit breaker or fuse. Installation is complete.
