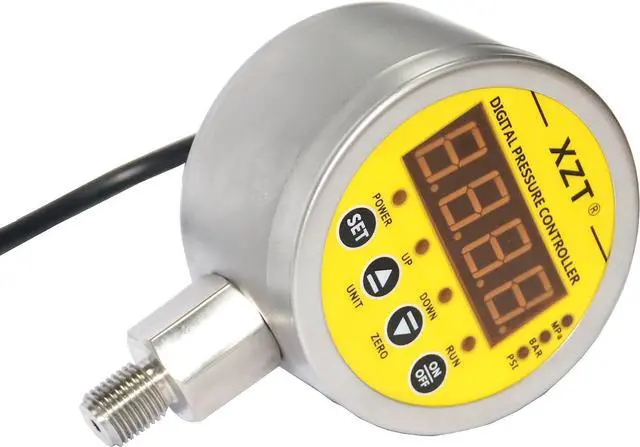

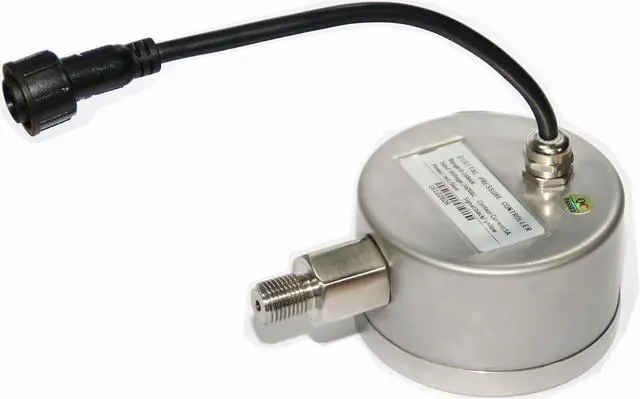

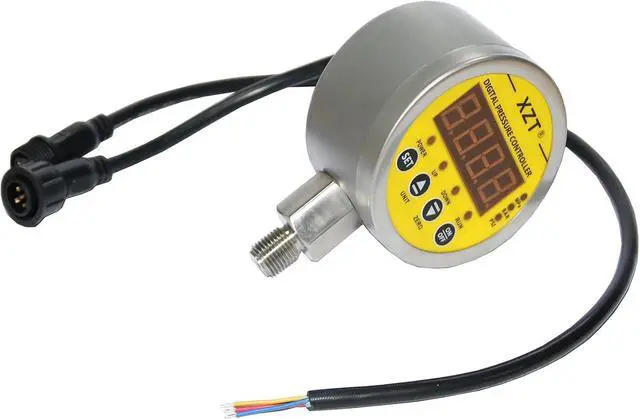

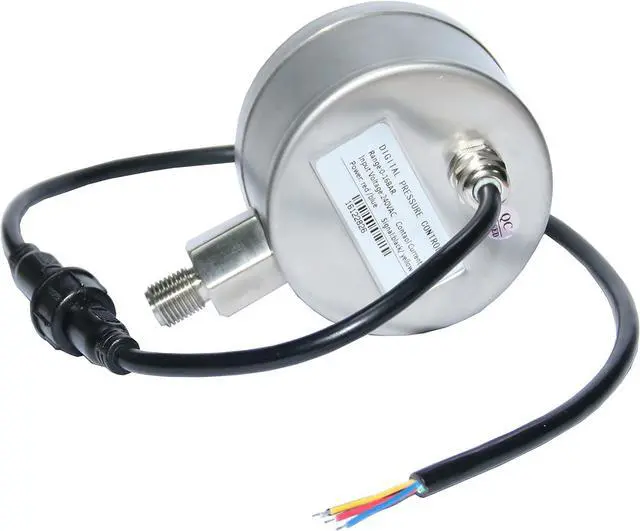

230PSI-NPT Digital Pressure Switch Controller,Pressure Gauge,Pressure Sensor for Water Pump Air Compressor 110VAC
- 1:Change Units- PSI, BAR , MPa 1/4" NPT thread bottom entry
- 2:Delay control, reverse control, pressure leakage protection, passwords protection
- 3:Relay signal output, upper and lower limit adjustable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4: High Accuracy Sensor : 0.5%FS
5:4 digit LED to show pressure in real time
3.2"-NPT Connector Digital Pressure Switch controller Specification:
Pressure Range 0 ~230PSI
Over Pressure 150%
Accuracy . ±0.5%FS
Alarm Point Alarm point be set discretionarily within the range.
Alarm TypeRelay signal
Long-term Stability Typical: ±0.5%FS/year
Operating Temperature -20~ 80
Compensation Temperature -10 ~60
Electric ProtectionShort-circuit protection, reverse protection, anti-electromagnetic interference
Sampling Frequency5 times/sec
Measurement Medium Gas, water, oil
Pressure ConnectionNPT1/4
Connector Material304SS
Shell304SS
Supply110VAC
Weight0.3Kg
Dimension Ø3.2/Ø80mm
APPLICATION:

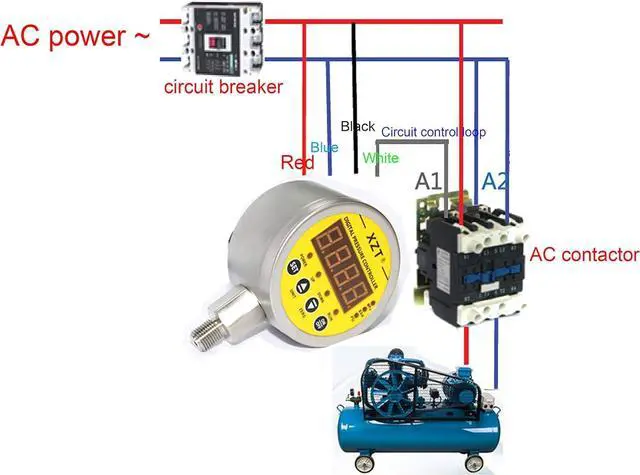

1: Pump Control
2: Air Compressor
3: Automatic Machinery
5:4 digit LED to show pressure in real time
3.2"-NPT Connector Digital Pressure Switch controller Specification:
Pressure Range 0 ~230PSI
Over Pressure 150%
Accuracy . ±0.5%FS
Alarm Point Alarm point be set discretionarily within the range.
Alarm TypeRelay signal
Long-term Stability Typical: ±0.5%FS/year
Operating Temperature -20~ 80
Compensation Temperature -10 ~60
Electric ProtectionShort-circuit protection, reverse protection, anti-electromagnetic interference
Sampling Frequency5 times/sec
Measurement Medium Gas, water, oil
Pressure ConnectionNPT1/4
Connector Material304SS
Shell304SS
Supply110VAC
Weight0.3Kg
Dimension Ø3.2/Ø80mm
APPLICATION:
1: Pump Control
2: Air Compressor
3: Automatic Machinery
