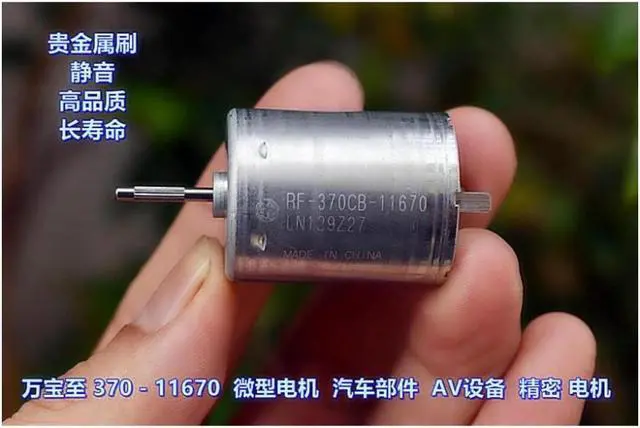

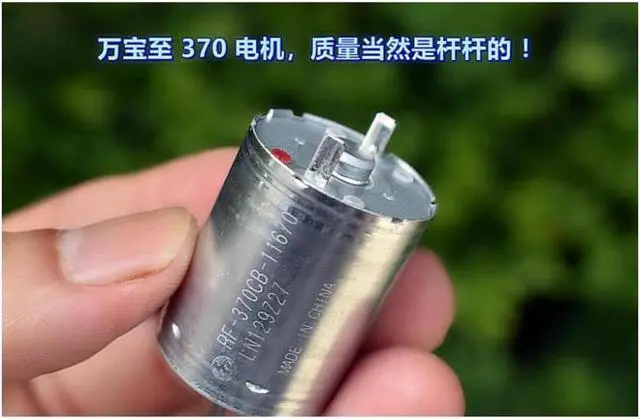

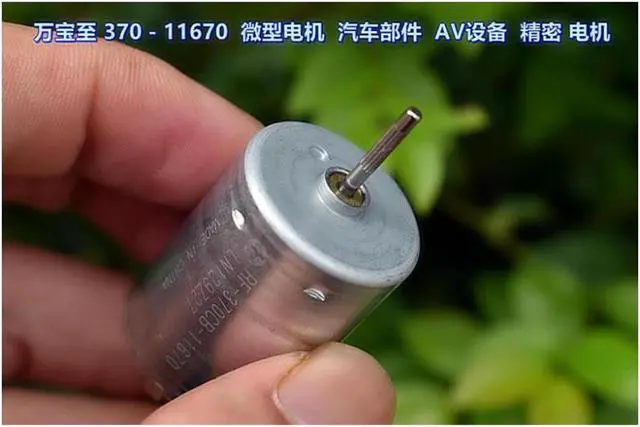

Mabuchi 370 11670 motor, precious metal brush DC12V-24V car AV equipment motor, precision DC motor

Origin: CN (Origin)
Certification: ROHS
Continuous Current (A): 120mA
Commutation: Brush
Model Number: 370 11670
Type: Micro Motor
Protect Feature: Drip-proof
Output Power: 3W
Construction: Permanent Magnet
Torque: 50g
Usage: car
Efficiency: IE 3

Description

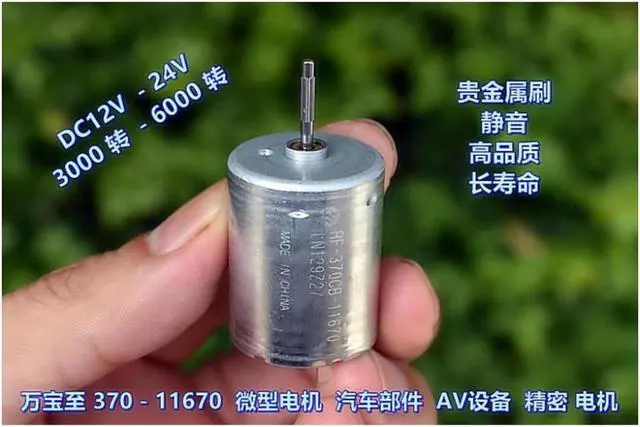

Voltage: 12 V Speed: 3000 RPM
No-load current: 7 MA
Voltage: 18 V Speed: 4500 RPM
No-load current: 17 MA
Voltage: 24 V Speed: 6000 RPM
No-load current: 36 MA
Power on the test machine, DC12V is very quiet, the speed is relatively low, and the torque is OK. The torque above DC18V is quite good, and the torque is stronger at DC24V, but the sound is slightly louder and still considered quiet, but generally this one The motor should not use DC24V, because the varistor of the Mabuchi 370-11670 motor previously encountered is not suitable for voltage to DC24V.
The micro motor 370-11670 is a commonly used model. If its parameters are just right for you to use, then you don't have to hesitate, because you can't find a motor with better quality than Mabuchi 370-11670.
