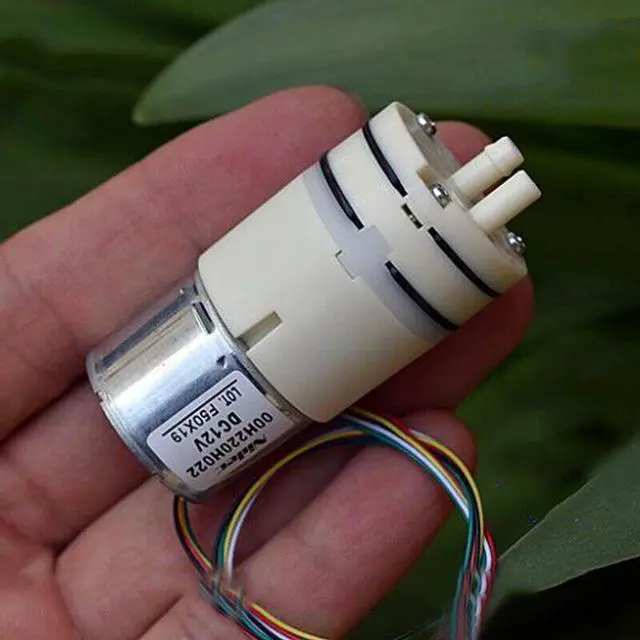

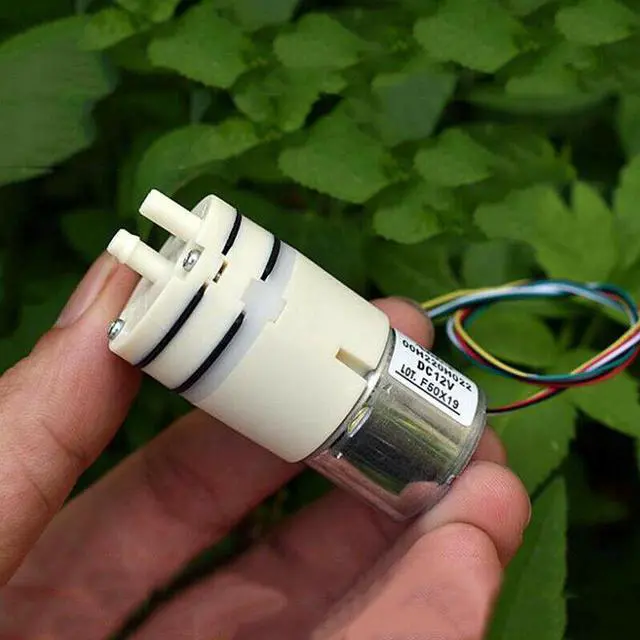

Aomoproing DC 12V Nidec 00H220H022 Micro Brushless Motor Water Pump Diaphragm Dosing Metering Self Priming Water Pump PWM Control

Certification: NONE
Structure: Diaphragm Pump
Fuel: Electric
Power: Electric
Origin: China
Pressure: Low Pressure
Standard or Nonstandard: Standard
Application: Metering
Usage: Water
Country/Region of Manufacture: China
Type: Water
Rated voltage: DC 12V
MPN: 00H220H022

Specification
:
Japan Nidec Micro brushless water pump, self priming pump, EPDM diaphragm material, corrosion resistant, sanitary, leak, miniature,
compact and strong, strong and durable, commonly used in medical devices, inkjet printer, plate washer, experimental equipment and
precision equipment that need precision control.
Definition of 5P line:
1.
Black line: Power Negative
2.
Red line: Power positive
3.
Yellow line: Output signal line (allow No wiring)
4.
White line: PWM, Duty cycle speed regulation. If connected to the negative pole, it will run at the highest speed.
5.
Green line: NO connection
Connection attention:
It is brushless water pump, red line must connect to power positive, black line must connect to power negative, can not be reversed!

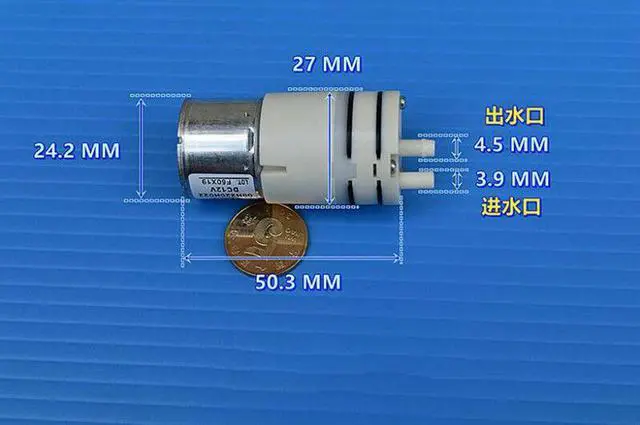

Parameters:
1.
Motor diameter: 24.2 mm
2.
Pump head diameter: 27mm
3.
Total height: 50.3 mm
4.
Water inlet diameter: 3.9 mm
5.
Water outlet diameter: 4.5 mm
6.
Weight: 45g
7.
Suitable voltage: DC 6V-12V
8.
Current: 0.28A - 9.43A
Package Include:
Mini Pump x 1pc
