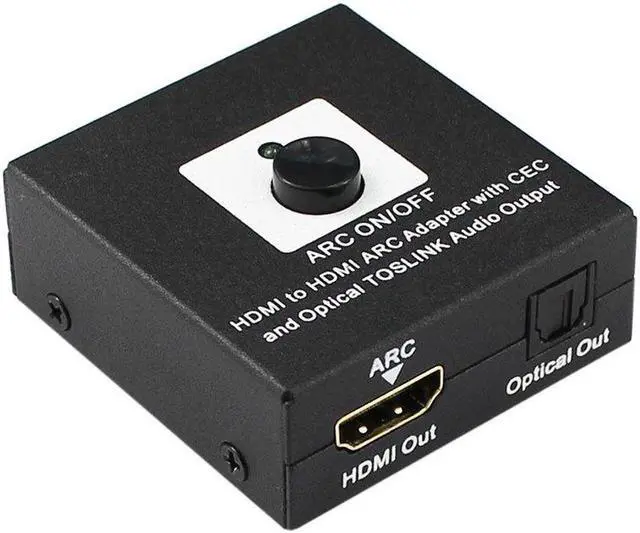

HDMI to HDMI Audio ARC Return Converter HDMI to HDMI ARC Adapter with CEC and Optical TOSLINK Audio Output

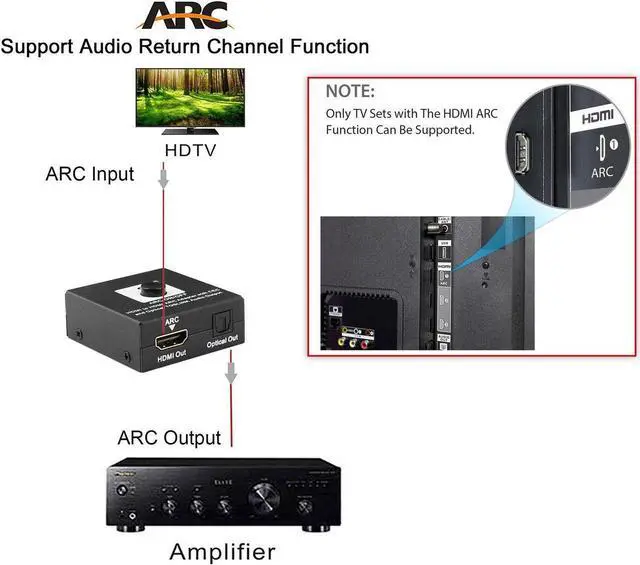

Connect signal sources (such as Blu ray players, PS4, Xbox One, etc. ) to the input of the adapter through an HDMI cable. Connect the signal output end of the adapter to display devices with ARC function (such as televisions, projectors, etc. ) through an HDMI cable, and connect the fiber optic output port to the fiber optic input device equipment (such as AV amplifiers, SOUNDBAR, etc. ) through a fiber optic cable.

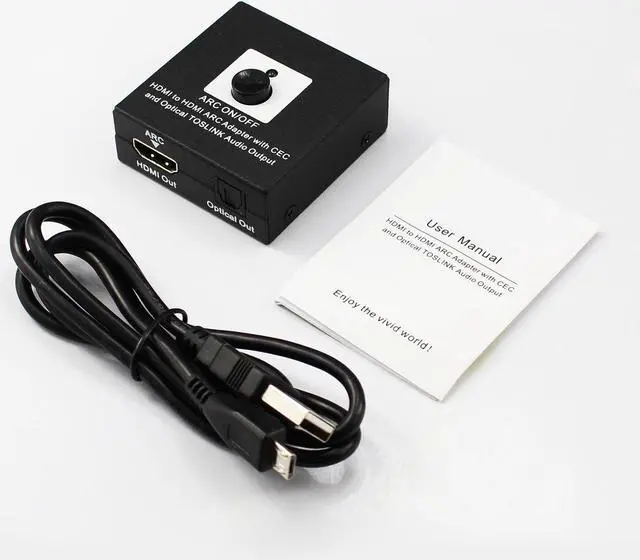

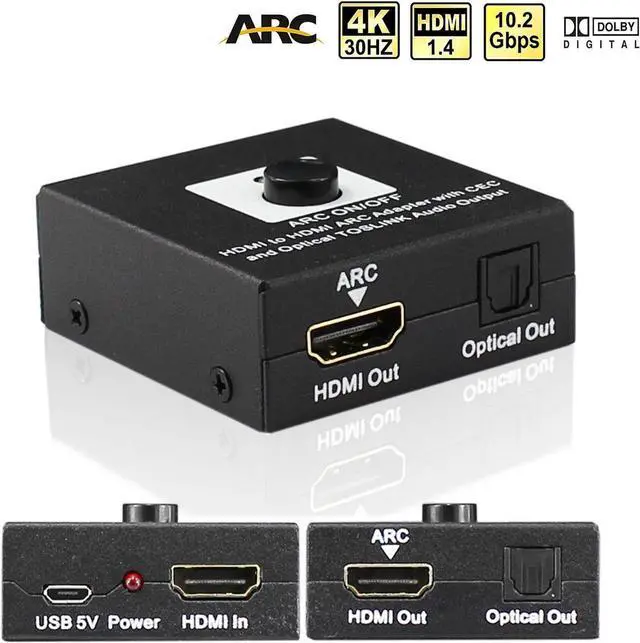

Connect one end of the USB to DC 5.5 mm interface cable to the DC 5V power interface of the ARC adapter, and the other end to the standard USB (TYPE A) power interface.

Turn on the CEC function of the display device, then press the ARC switch of the ARC adapter, and confirm that the ARC indicator light is on to use this device.

Note: The ARC function can also be used separately without connecting to the signal source. Please use a standard HDMI 1.4 cable for the HDMI connection between the display device and the ARC adapter.

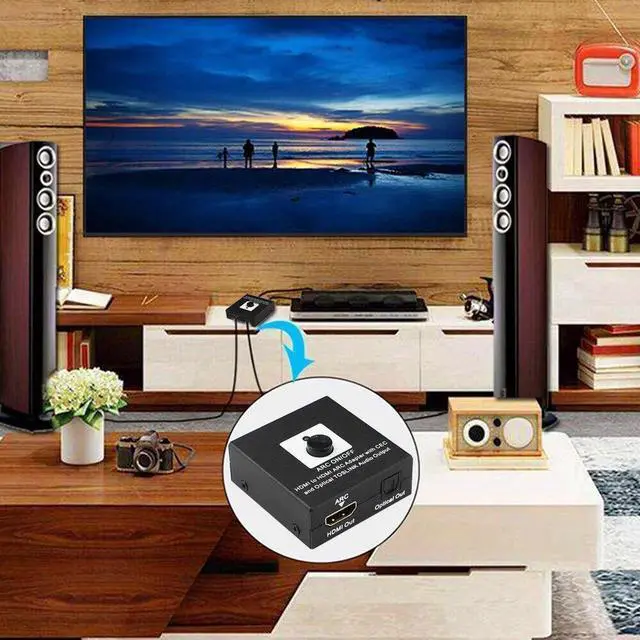

This HDMI ARC adapter can connect display devices (such as televisions, projectors, etc. ) that support ARC (sound echo) function to amplifying devices (such as AV amplifiers, Soundbar, etc. ) that do not support ARC (sound echo) function. This easily solves the problem of sound echo between devices, making your audio and video devices more convenient and comfortable to use. (Note: When you need to use the ARC function, please confirm that the CEC function of the display device is turned on, and also use a standard HDMI 1.4 cable)



Product technical parameters:

HDMI resolution: 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i, 24/30/2160P

HDMI input/output supports audio formats: DTS-HD/Dolby ureHD/LPCM 7.1 /DTS/Dolby AC3/DSD

ARC audio output support format (depending on display device): LPCM 2.0 /DTS/Dolby-AC3

Maximum transmission bandwidth~~340MHz

Maximum transmission rate~~ 10.2G bps

HDMI input cable length = 5m AWG26 HDMI standard cable

HDMI output cable length = 5m AWG26 HDMI standard cable

The length of the fiber optic output cable is = 30m, and the line loss used is less than 0.2 dB/m

Maximum working current 0.15A

Working temperature (0~40? )

Operating humidity range 5 to 85% RH (non condensing)
