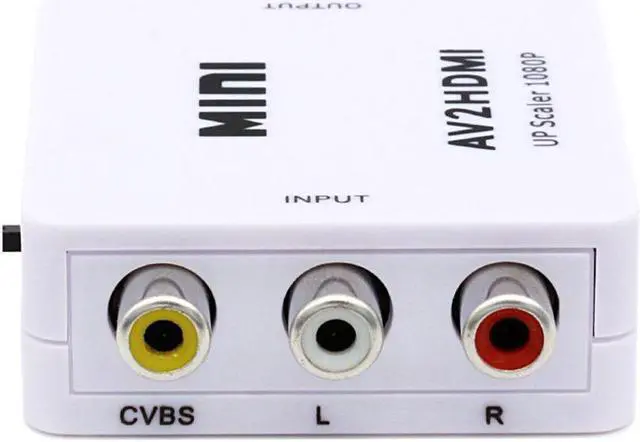

3RCA Composite CVBS AV to HDMI Video Audio Converter Adapter Mini Box Support 1080P PAL/NTSC with USB Power Cable for TV/PC/PS3/Blue-Ray DVD, White

RCA to

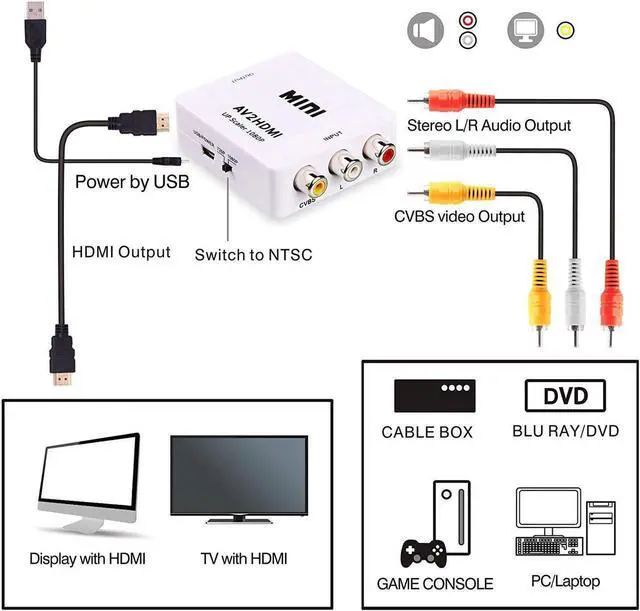

HDMI Adapter: Sending signal hosts device should have composite Video (Yellow, White, Red) Output, such as PS3/HD Player ( RCA); Receiving signal device should have HDMI Input, such as TV / Monitor. Support HDMI 1080p or 720p output.
Plug & Play: No need to install drivers, portable, flexible. Give advanced signal processing with great precision, colors, resolutions
Broad Compatibility: RCA to HDMI Adapter for PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL / M, PAL / N standard TV formats input.

Note: Please connect your AC adapter (USB power cable included) to get this video converter working perfectly. Please hook up the USB power cable (included) to 5V power source before using. This converter can't be for super Nintendo and apple devices due to compatible problems.

Introduction:
It converts RCA (AV, composite, CVBS) signals into HDMI signals so you can watch your video on a modern TV with HDMI ports. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p (60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

Specifications

:
1.

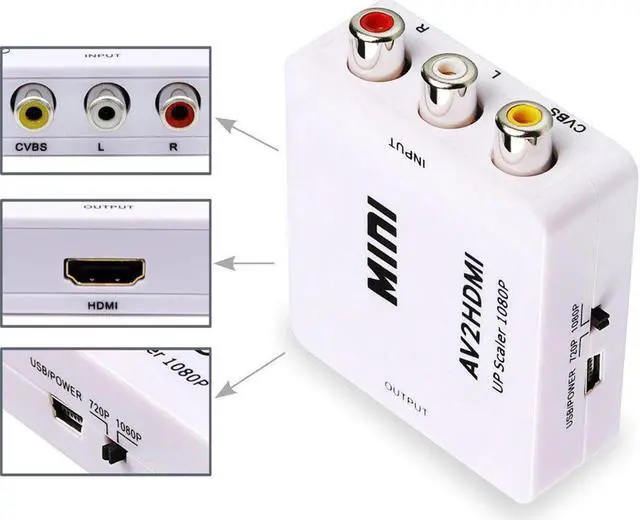

Input ports: 1xRCA (Yellow, White, Red), USB power
2.
Output ports: 1xHDMI (standard)
3. NTSC/PAL compatible
4.
Composite input: PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M, PAL/N
5.
HDMI output: 1080p/60Hz, 720p/60Hz
6.
Dimensions (mm): 66 (D) x55 (W) x20 (H)
7.
Weight (g): 40g
8.
Power: USB Port

Features:
No need to install drivers, portable, flexible, plug and play.
Support PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M, PAL/N standard TV formats input. Output the audio synchronization with video. Can be displayed on Moniter/ TV with 1920x1080@60Hz High bandwidth capability

NOTE: May experience less than three second lag. Will not convert audio only.
Important: For converter to function properly all cables must be connected and in use (yellow: video, white: left audio, and
red: right audio).
Supported audio format: 2 channel analog audio, does not support 3D.

Package content:
1xAV to HDMI Converter
1xUSB Cable 1xUser
Manual NOTE: Video signal transfer only, can't improve the video quality
