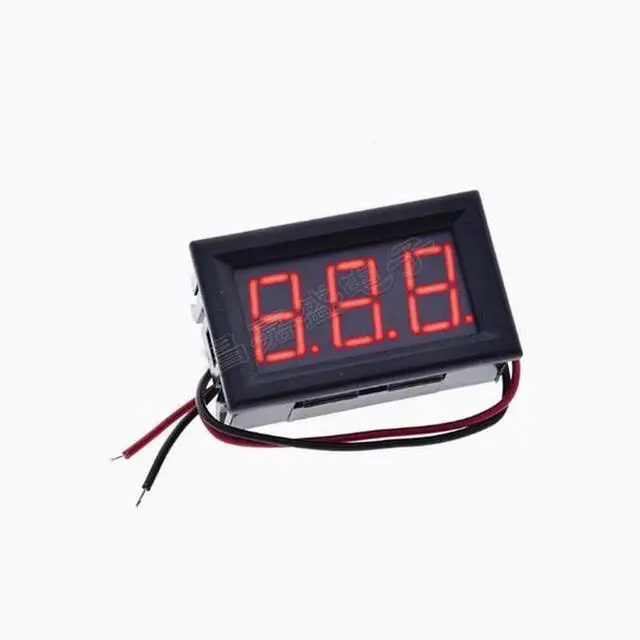

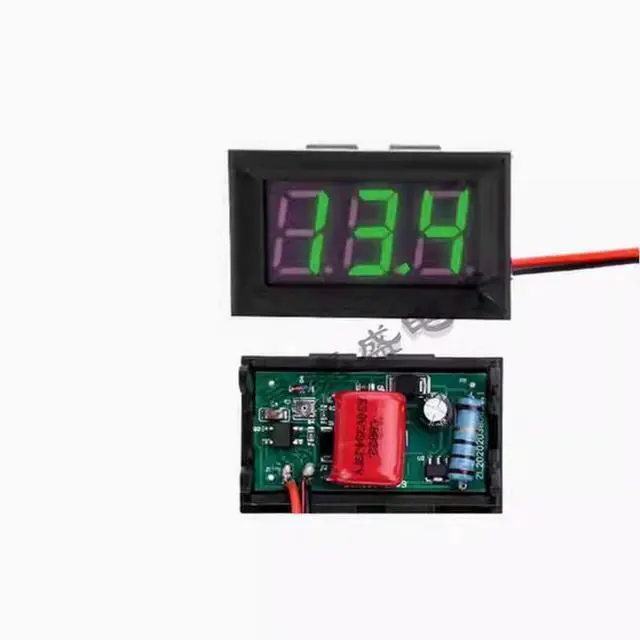

0.56 inch two-wire AC voltmeter head AC220V digital voltmeter 70-500VLED display
- Product parameters:
- Measuring range :AC70V-500V
- Power supply range: no need for additional power supply, directly use the measured voltage
- Power supply, same range as above
- Maximum input :AC500V. Note: Input voltage above 500V May be permanent
- Permanent damage!
- Allowable error: soil 1%;
- Input impedance :>1M OHM
- Working current: Red <23mA, green <18mA, blue <17mA
- Refresh speed: about 300mS once
- Display mode: three "0.56 "LED digital tube display color: red, green, blue optional
- Lead length :20cm
- Dimensions :48x29x22 mm
- Operating temperature :-20~65
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameters:
Measuring range: AC70V-500V
Power supply range: no need for additional power supply, directly use the measured voltage
Power supply, same range as above
Maximum input: AC500V.
Note: Input voltage above 500V May be permanent
Permanent damage!
Allowable error: soil 1%;
Input impedance: >1M OHM
Working current: Red <23mA, green <18mA, blue <17mA
Refresh speed: about 300mS once
Display mode: three " 0.56 "LED digital tube display color: red, green, blue optional
Lead length: 20cm
Dimensions: 48x29x22 mm
Operating temperature: -20~65
Measuring range: AC70V-500V
Power supply range: no need for additional power supply, directly use the measured voltage
Power supply, same range as above
Maximum input: AC500V.
Note: Input voltage above 500V May be permanent
Permanent damage!
Allowable error: soil 1%;
Input impedance: >1M OHM
Working current: Red <23mA, green <18mA, blue <17mA
Refresh speed: about 300mS once
Display mode: three " 0.56 "LED digital tube display color: red, green, blue optional
Lead length: 20cm
Dimensions: 48x29x22 mm
Operating temperature: -20~65
