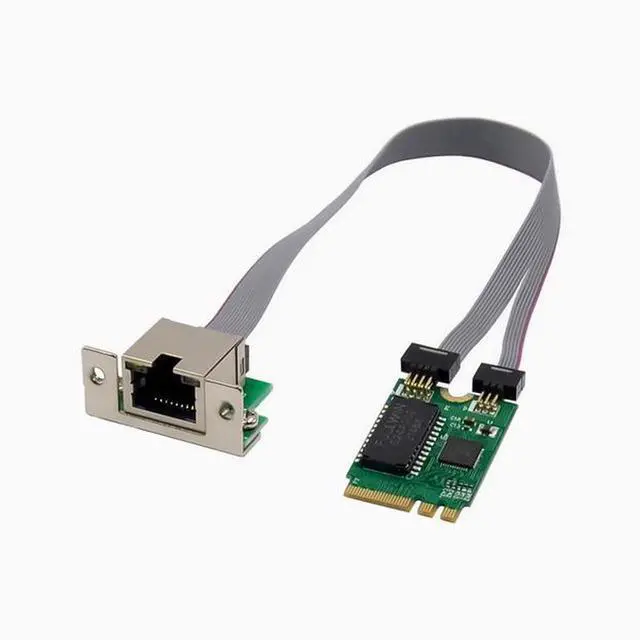

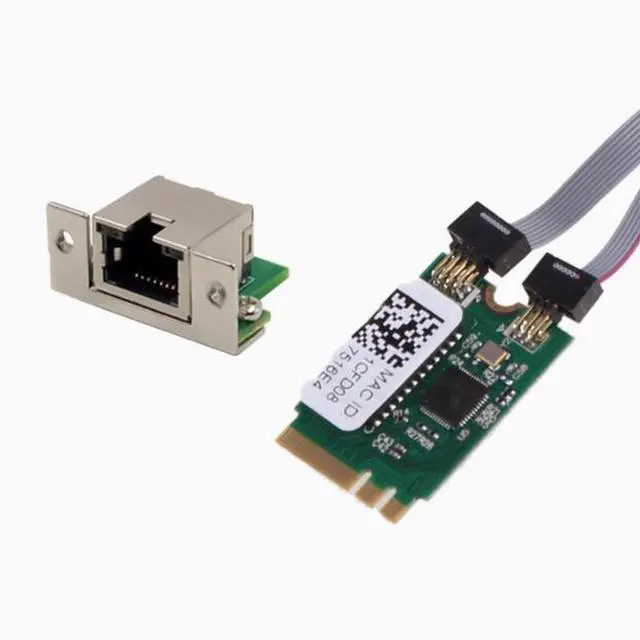

M2 NGFF KEY A+E RTL8125B Industrial 2.5G Gigabit Network Card 2500M desktop The Intel210 chip

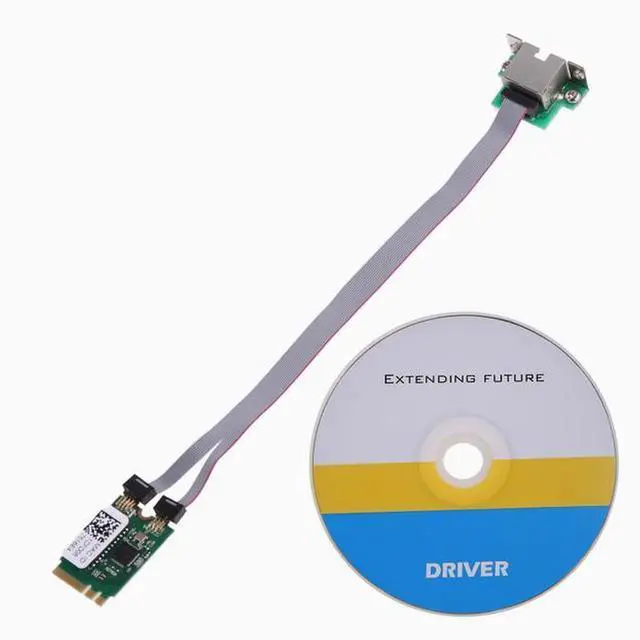

Line length: 18CM

SM-LG8125B-BT M. 2 A+E KEY RTL8125B 2.5G single-port network adapter, will be four-speed IEEE 802.3 compatible media

The access controller is combined with a four-speed Ethernet transceiver that complies with the 10/100Mbps Ethernet IEEE 802.3 u specification, the IEEE 802.3 ab 1000Mbps Ethernet specification and the IEEE 802.3 bz 2500Mbps Ethernet specification. It is also available via CAT5e UTP cable or CAT3 UTP

(only 10Mbps) cable provides high-speed transmission. It is suitable for multiple market segments and emerging applications such as desktops, workstations, servers, communications

Platforms and embedded applications.





- Conforms to PCI Express specification revision v 2.1
- Supports 1-Lane 2.5 /5Gbps PCI Express bus
- Onboard single 2.5G network port, integrated 10/100/1000M/ 2.5G transceiver
- Support 2.5G and 1G Lite, 100M mode
- Automatic negotiation with extended next page function
- Support for exchange/sex/skew correction
- Cross detection and automatic correction

- Compatible with IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
- Supports IEEE1588v1, IEEE1588v2, and IEEE 80.2AS time synchronization
- Supports shaping algorithms based on IEEE 802.1Q av credit
- Supports IEEE 802.1P Layer 2 priority coding
- Supports the IEEE 802.1Q VLAN tag
- Supports IEEE 802.3AZ -2010
- Support IEEE 802.3 bz-2016 (NGBASET)
- Support full duplex flow control (IEEE 802.3 x)
- Supports jumbo frames up to 16K bytes
- Support virtual Machine queue (VMQ)
- Support quad-core reception - Side Scaling (RSS)
