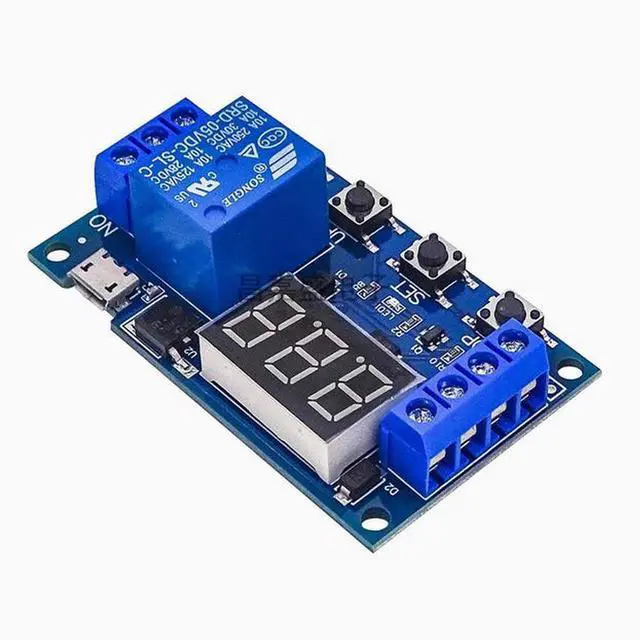

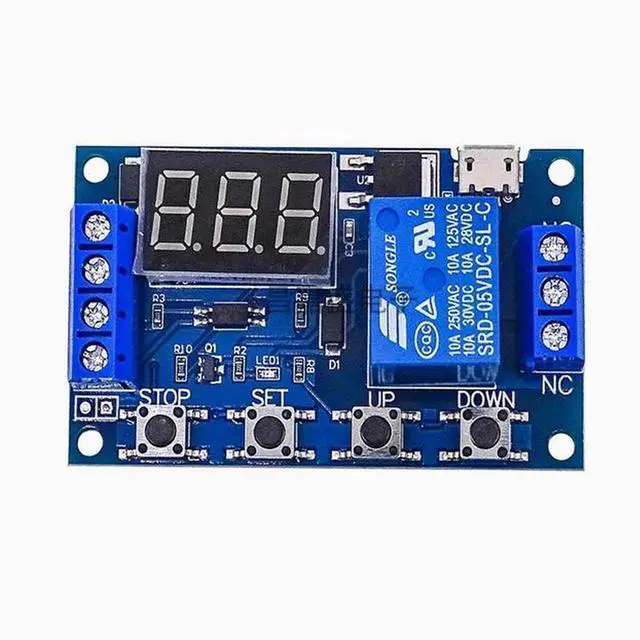

MICRO interface 1 relay module triggers off delay switch Circuit switch cycle timing delay power module
Limited time offer, ends 07/29 By E-tech
- Module highlights:
- 1. Wide voltage power supply (6~30V) support micro USB 5.0V power supply, very easy to use;
- 2. The interface is clear and simple, powerful and easy to understand, almost meeting all your needs;
- 3. There is a one-key emergency STOP function (STOP key), with reverse connection protection, reverse connection does not burn;
- 4. Added sleep mode, after enabling, no operation within 5 minutes, automatically turn off the display; Any key to wake up:
- 5. Different 0P, CL and LOP parameters can be set, which are mutually exclusive
- Erected and kept separately:
- 6. All Settings are automatically saved after power failure.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameters:
1: Working
voltage: 6--30V Support micro
USB 5.0V power supply 2: trigger
signal source: high level trigger ( 3.0V -24V) signal ground and system to improve the anti-interference ability of the system (can also short-circuit common ground)
3: Output
capacity: can control DC 30v5A or AC 220v5A within the equipment
4: Static current: 20mA Working current: 50mA
5: Service
life: more than 100, 000 times;
Operating temperature: -40-85 Size: 6.2 * 3.8 * 1.7 cm
6: With optocoupling isolation, enhance anti-interference ability, industrial level circuit board set parameters after the power off forever memory
Special attention: relay output is passive contact, no charged output, control the role of a line on and off.
1: Working
voltage: 6--30V Support micro
USB 5.0V power supply 2: trigger
signal source: high level trigger ( 3.0V -24V) signal ground and system to improve the anti-interference ability of the system (can also short-circuit common ground)
3: Output
capacity: can control DC 30v5A or AC 220v5A within the equipment
4: Static current: 20mA Working current: 50mA
5: Service
life: more than 100, 000 times;
Operating temperature: -40-85 Size: 6.2 * 3.8 * 1.7 cm
6: With optocoupling isolation, enhance anti-interference ability, industrial level circuit board set parameters after the power off forever memory
Special attention: relay output is passive contact, no charged output, control the role of a line on and off.
