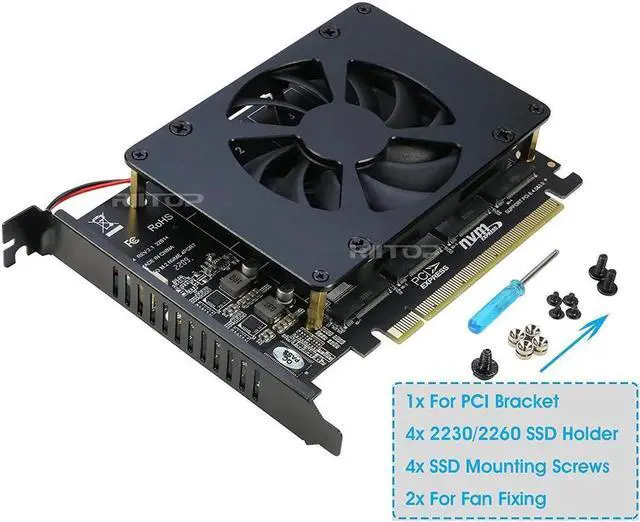

    Quad M.2 NVME SSD to PCI-E 4.0 X16 Adapter Card, High Speed 4x32Gbps Soft Raid Card with Individual LED Indicator Support 2230 2242 2260 2280 M Key M.2 NVME SSD ((PCI-e Bifurcation Required))

    • This adapter card has 4 expansion cards, which can simultaneously expand 4 x 32Gbps fullspeed signals. No disk drop, no speed reduction, no blocking, and equipped with highpower DC power chip to ensure stable

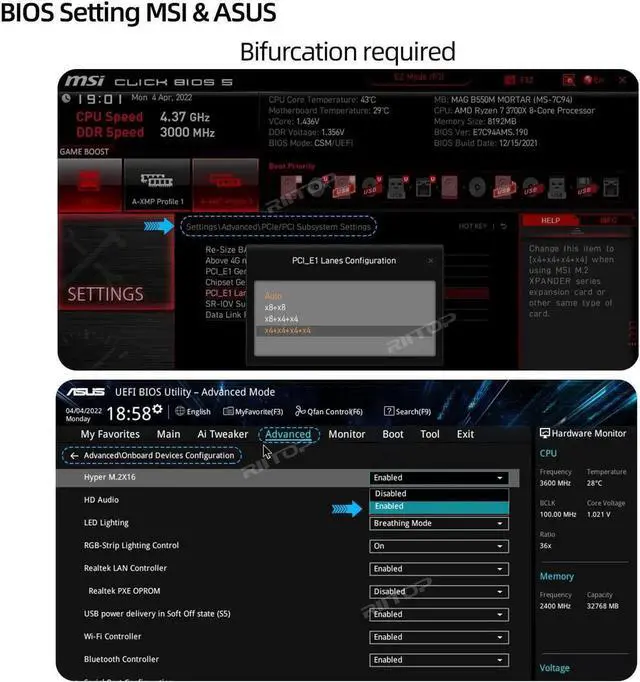

    • Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS 3. All of the SSDs are M.2 (M Key) NVMe SSD 4. CPU has enough channels to support

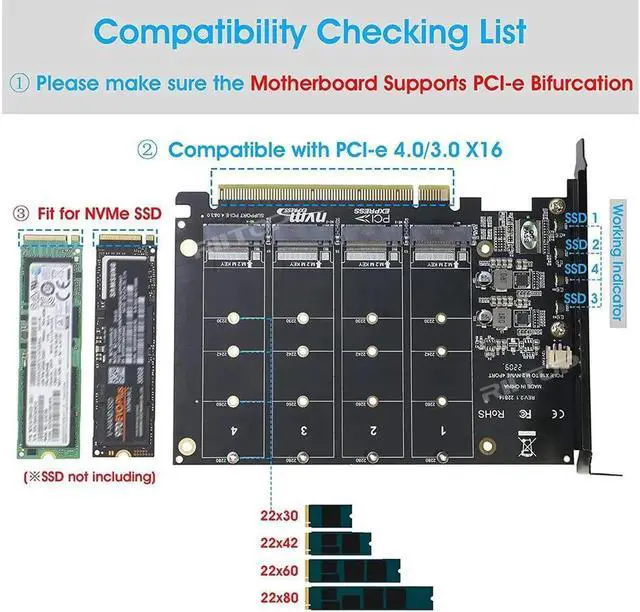

    • Compatible with M.2 PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M.2 (SATA-Based B+M Key) SSD; Motherboard Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation
    • Please note: 4x NVMe PCIe Adapter does not Support Hardware Raid, only supports the formation of soft raid in Win10 , or you may build raid via Third-party Software, and 4 SSDs should be same model 2. The motherboard need support "PCIEX16 Bifurcation", Otherwise, only one M.2 SSD can be recognized.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    This adapter card has 4 expansion cards, which can simultaneously expand 4 x 32Gbps fullspeed signals. No disk drop, no speed reduction, no blocking, and equipped with highpower DC power chip to ensure stable
    Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS 3. All of the SSDs are M. 2 (M Key) NVMe SSD 4. CPU has enough channels to support
    Compatible with M. 2
    PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M. 2 (SATA-Based B+M Key) SSD;
    Motherboard Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation
    Please note: 4x NVMe PCIe Adapter does not Support Hardware Raid, only supports the formation of soft raid in Win10, or you may build raid via Third-party Software, and 4 SSDs should be same model 2. The motherboard need support "PCIEX16 Bifurcation", Otherwise, only one M. 2 SSD can be recognized.
