Easy to
Use: Installs in seconds, no settings and it is a resolution pass-through converter;
Compact, light weight, portable size;
Convert HDMI signal to Composite/S-video + Audio R/L signal;

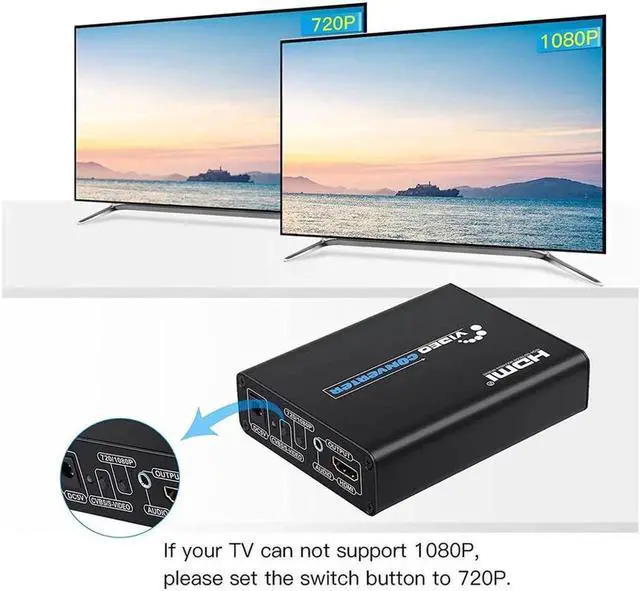

Optional choice for output video systems: PAL/NTSC;
Power/signal LED indicators;
Power supplied by AC adapter directly;
Optional choice for output signal: CVBS/S-Video;
Note: This product doesn' t support simultaneous output of Composite Video. Please select either one of them by switch button on the unit.
Specifications
:
Device Type: HDMI to 3RCA + Audio + Composite/S-video Converter;
Interface Type: HDMI in, Composite/S-video + Audio R/L out;
Input HDMI Resolution: 480p (60Hz), 576p (50Hz), 720p(50Hz/60Hz), 1080i(50Hz/60Hz), 1080p(50Hz/60Hz);
Output Signal: Composite Video( 1.0V pp), S-Video(Y: 1.0V pp, C: 3Vpp);
Output Video Systems: PAL/NTSC;
Output Video Impedance: 75 Ohm;
Compatibility: HDMI 1.3; HDCP;
Power Supply: DC 5V 1A;
Working Temperature: -25 °C to 75°C;
Working Humidity: 10%-60%;
