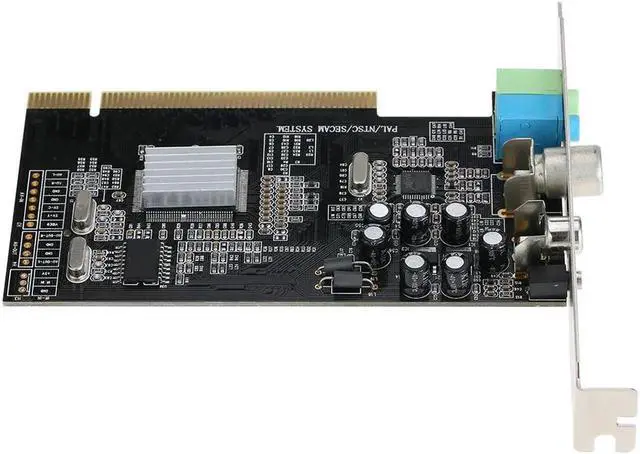

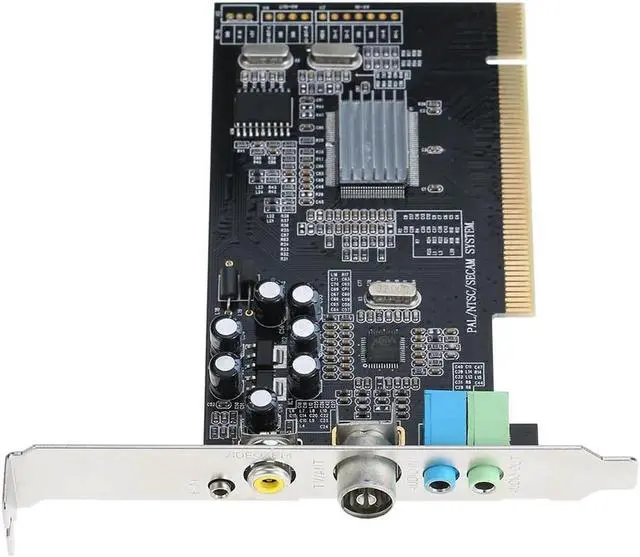

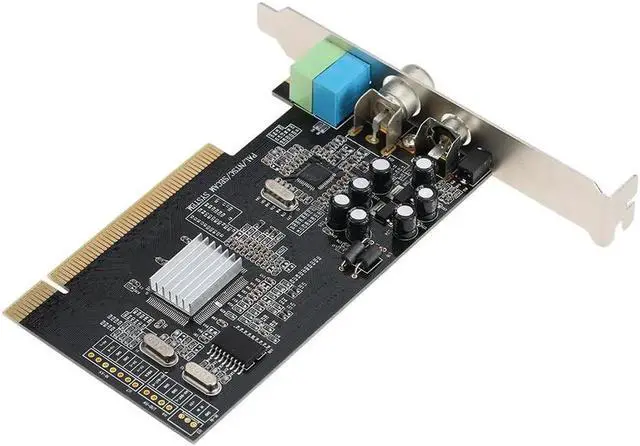

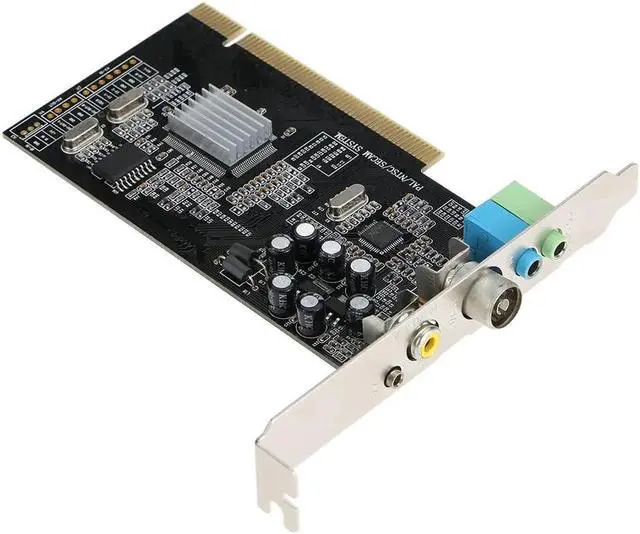

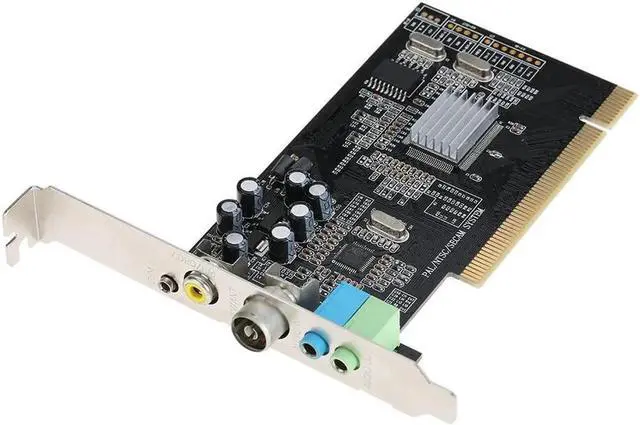

PCI Internal TV Tuner Card MPEG Video DVR Capture Recorder PAL BG PAL I NTSC SECAM PC PCI Multimedia Card Remote

Specification:

Material: Metal

TV tuner system

Support: NTSC, PAL B/G/D/K/H/I, PAL-M, PAL-NRF

decoding range: Analog NTSC cable and broadcast UHF/VHF TV channel frequencies from 55.25 to 855.25 MHzVideo input system

Support: NTSC, PAL and SECAM

Video capture resolution: 720 * 480 pixels @30fps for NTSC or 720 * 576 pixels @25fps for PAL/SECAM system

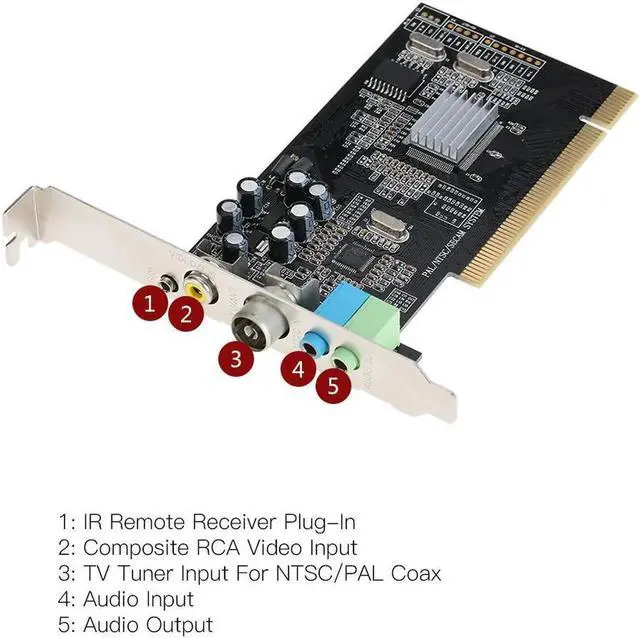

Audio/Video inputs: RF CATV coax Input via F-type connector * 1 Composite RCA input * 1 for video 3.5 mm mini port * 1 for audio input from RCA video device 3.5 mm mini port * 1 for audio output to sound card or speakers

Video recording format: MPEG1, MPEG2, VCD, SVCD, DVD

Snap shot image format: BMP, JPG

Video color element control: Adjustable video color elements for picture brightness, contrast, saturation, hue.

Operation: Full-function 29-key IR remote controller or control panel from TVR software

Item size: 13.3 * 12 * 1.9 cm / 5.2 * 4.7 * 0.7 in (L * W * H)

Item weight: Approx. 126g / 4.4 ozPackage size: 22 * 15.2 * 6cm / 8.7 * 6 * 2.4 in (L * W * H)

Package weight: 235g / 8.3 ozSystem

Requirements:

CPU: Intel Pentium III 900 MHz or higher and compatible computer

Operating system: for Win 7 / SE / ME / 2000 / XP / Vista / Win 98 SVGA support higher than 640 * 480 / Hi-color

Sound card support for audio mix functions

Cable / VHF / UHF antennaA free

PCI bus Note: This is an analog TV tuner card so it does not support antenna hookup for digital broadcast channels over the air. This multifunctional TV tuner card is an ideal solution to expand your desktop PC with TV function and video recorder. It transforms your desktop PC into a full-featured multimedia station with video / audio / radio input for all regions and countries. It has an universal built-in TV tuner to decode either analog basic cable channels or UHF/VHF aerial/closed-circuit channels for all countries around the world, world universal. It is also a cost efficient solution for decoding RF modulated signals from set top boxes, satellite receiver, DVR into digital MPEG format for viewing or recording through desktop PC.

Features: Fully PCI Rev 2.1 compliant

Full TV frequency range for CATV / VHF / UHF and support only Analog TV signal (not include digital or satellite TV) Perfect for recording video in multiple formats, the schedule recording allows user to preset the recording schedule in weekly manner

Support analog TV standard of NTSC, PAL B/G, PAL I and SECAM TV system

Supports Time-Shifting function to pause, rewind, and fast forward live TV, replay a scene or skip the commercials

Snap shot format in BMP and JPEG. Image browse function works like photo album

Audio output to sound card or speaker. R/M port is for remote control

Video recorder, TV functions and planner YUV data format supported

Favorite channel list and channel rename supported and full-featured remote control included

Multi-input source, include composite Video In and Audio line in/out for external device input such as VCR / VCD / DVD / Camcoder

Supports 16:9 and 4:3 ratio for the sub video window size

Wide compatibility, universal compatible for Win 7 / SE / ME / 2000 / XP / Vista / Win 98
