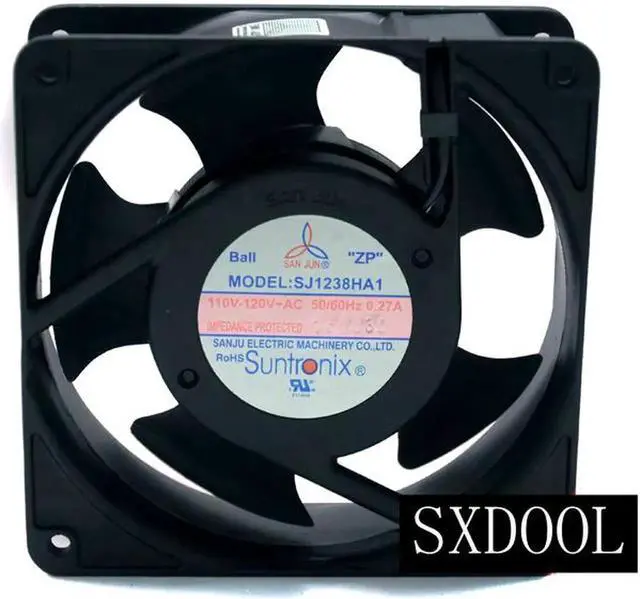

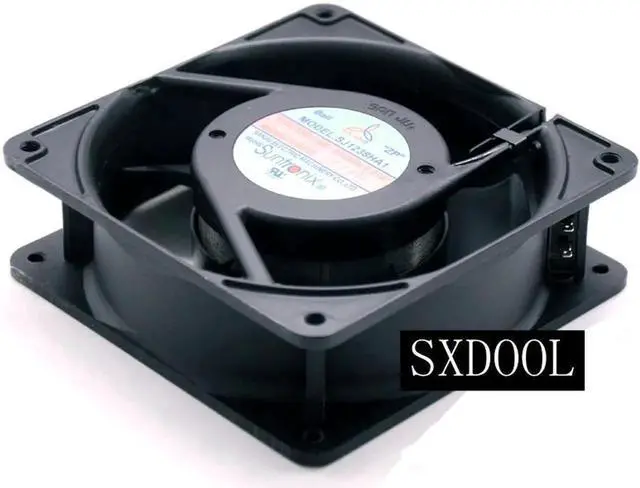

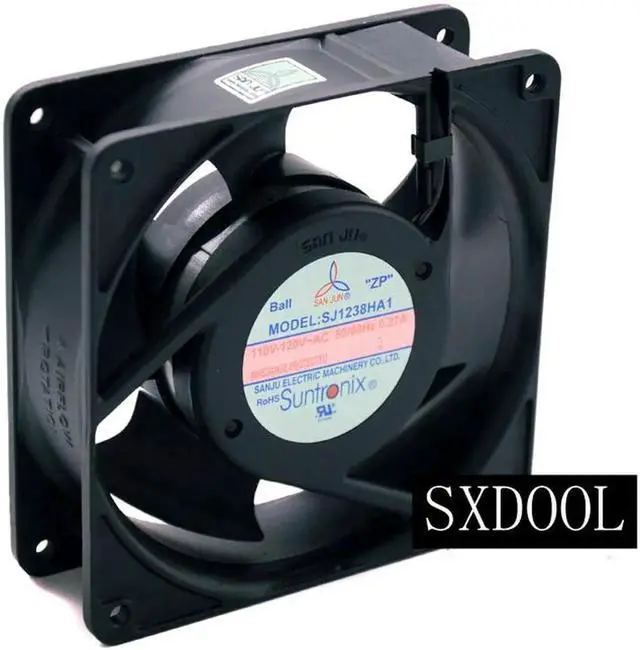

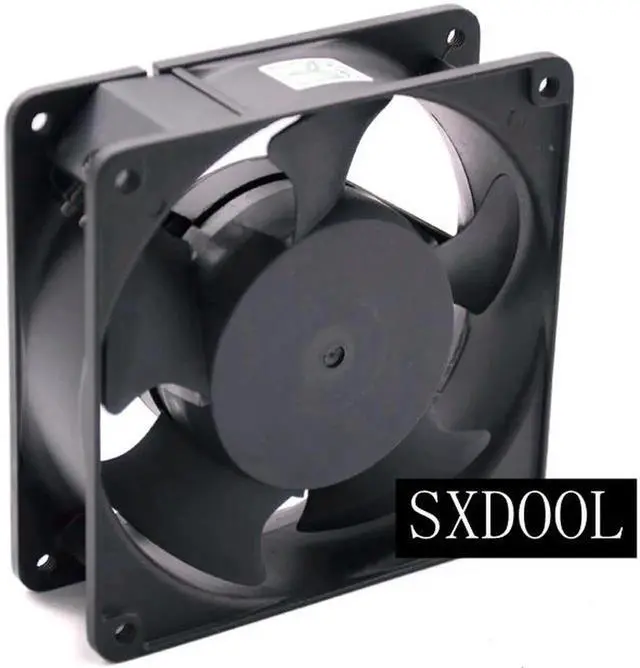

New suntronix SANJUN SJ1238HA1 110V-120V 0.27A 12038 cooling fan

Brand: Suntronix

Model: 12038

Bearing Structure:

B: BALL (Ball Bearing)

Voltage:

AC: 110V

Frequency: 50/60

(Hz) power: 22/15 (W)

Speed: 2600/3000

(R/min) air flow: 2.37 / 2.83 (M3/min)

Noise: 45/51 (dB-A)

Weight: 520 (g)

Connection mode: terminal type

Frame: Anti-corrosion and anti-humidity structure of aluminium alloy die casting with black baking varnish;

Wind blade: injection molding once, PBT + 30% glass wire + VO grade flame retardant;

Bearing: Imported ball bearing with high precision, long life and low noise;

Insulation: The enameled wire is insulated by B-class insulation with a temperature resistance of 120 degrees Celsius.

Insulation resistance: more than 500 megaohms;

Voltage withstand: leakage current 0.5 mA. Voltage withstand 1500V/1 minute;

Operating Voltage: 220V

(Voltage range: 185V-245V) Use ambient temperature (? ): - 20 (? ) to 75 (? )

B: (ball bearing)

Life: working environment temperature 40

C B: (ball bearing) 60000 (hours) Long service life, 24 hours continuous long work
