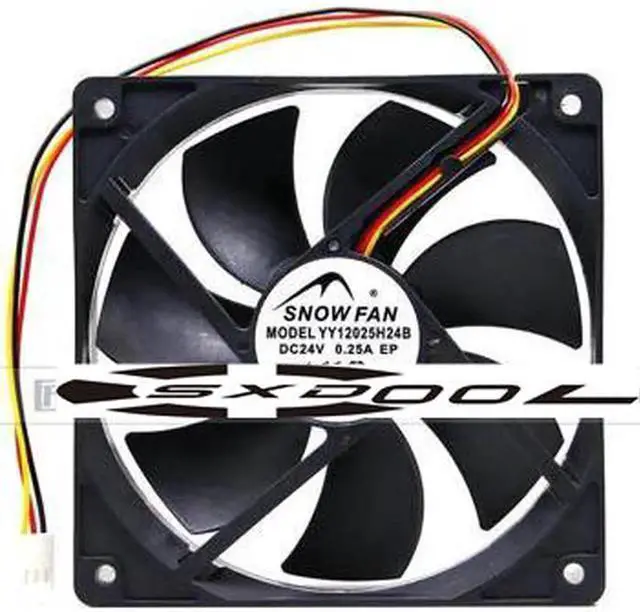

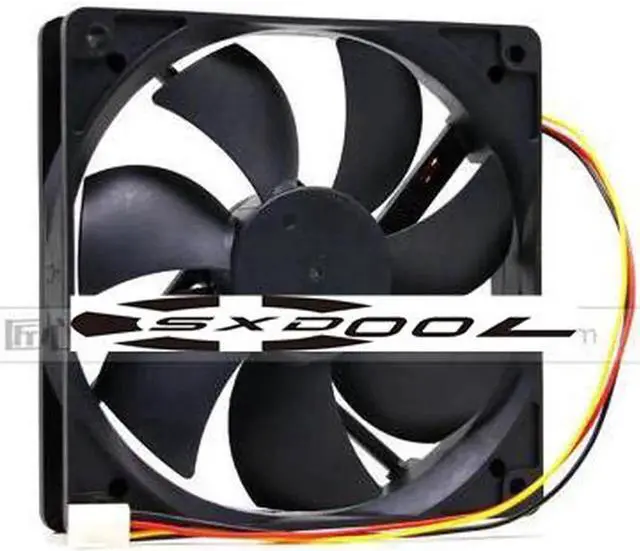

SNOW FAN YY12025H24B Server Cooling Fan DC 24V 0.25A 120x120x25mm 3-wire
- Product model: YY 12025H24B
- Dimensions: 120mm* 120mm*25mm
- Rated voltage: DC 24V
- Rated current: 0.21A ± 10%
- Power consumption: 5.04W
- Speed: 2600 soil 10% RPM
- Bearing: Double ball bearing
- Air volume: 80CFM 2.24M3/min
- Wind pressure: 4.53mmH2O 0.18INH2O
- Noise level: 42dB-A
- Expected life: constant temperature 40°C humidity 5%~95% 50000hrs
- Reverse connection protection/lock protection
- Operating temperature and humidity range: temperature -10~+60°C humidity 5%~95%RH
- Red line + black line-yellow line FG signal speed measurement
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product model: YY 12025H24B
Dimensions: 120mm* 120mm*25mm
Rated voltage: DC 24V
Rated current: 0.21A ± 10%
Power consumption: 5.04W
Speed: 2600 soil 10%
RPM Bearing: Double ball bearing
Air volume: 80CFM 2.24M 3/min
Wind pressure: 4.53 mmH2O 0.18INH 2O
Noise level: 42dB-A
Expected life: constant temperature 40°C humidity 5%~95% 50000hrs Reverse connection protection/lock protection
Operating temperature and humidity range: temperature -10~+60°C humidity 5%~95%RH Red line + black line-yellow line FG signal speed measurement
Fan frame: plastic PBT UL94V -0
Wind blade: plastic PBT UL94V -0.
Insulation resistance: 100MQ measured between bare wire and outer frame 500VDC/min
Insulation withstand voltage: 5Ma Max. measured between wire and outer frame, 500VAC/min
Waterproof rating: IPXC
Fan rotation direction: from the direction of the fan blades, it is counterclockwise
