PCIE to Parallel Port Card, Print Port LPT PCI-E LPT Printer Card Adapter DB25, for Windows, MAC and Linux. Suitable for Printers, Programmers, Scanners, etc.

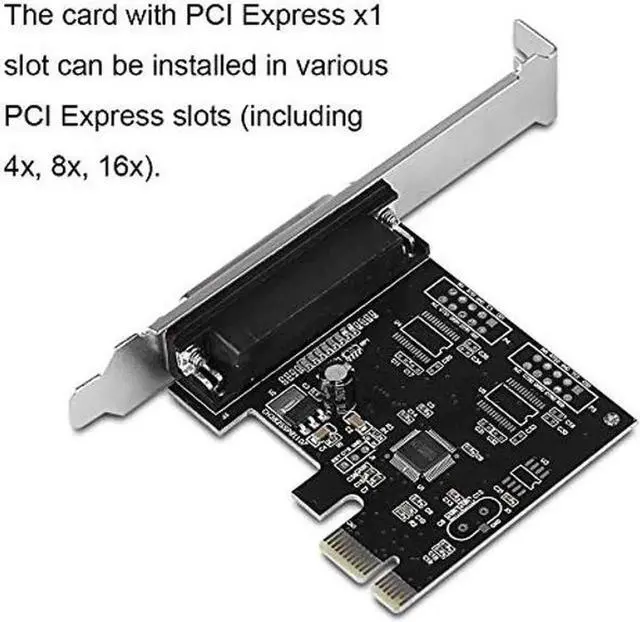

A PCI Express single parallel port card that can be connected to parallel devices such as printers, programmers, scanners, etc. Supports a variety of mainstream operating systems, including for Windows, MAC and Linux. The product uses a PCI Express x1 slot that can be installed in a variety of PCI Express slots (including 4x 8x16x).

Specifications

:

Compliant with PCI-Express Specification Revision 1.1

Built-in SPP, PS2, EPP, ECP compatible IEEE 1284 printing protocol

No switch without jumper, easy to set up with software

32-bit bus design, supporting PCI 2.1 specification

Use high speed I/O controller (16C550C or compatible UART)

Support 8CM short iron piece

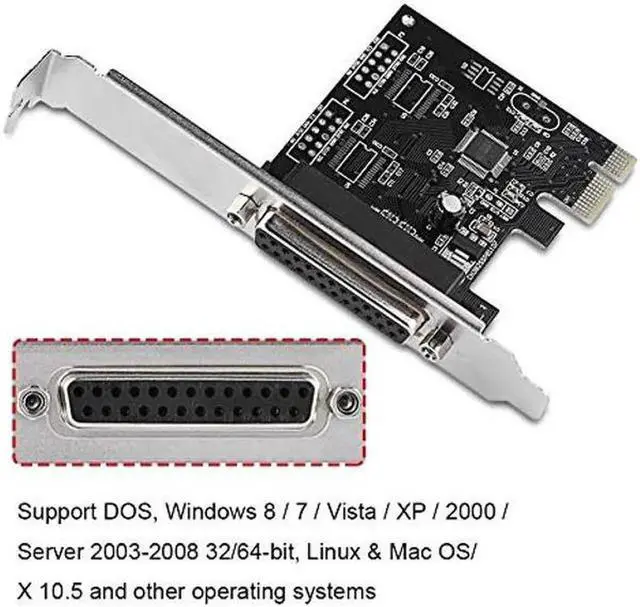

Support DOS, Windows 8 / 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux & Mac OS/X 10.5 and other operating systems

Parallel interface (LPT)

Comply with IEEE 1284 parallel port protocol

I/O address: assigned by BIOS

IRQ: Assigned by BIOS

Support: SPP, PS2, EPP & ECP and mode

Main chip: 9805 chip

Support: For Windows95/98/98SE/2000/ME/NT 4.0 /XP, Linux, DOS, VISTA, WIN7

Built-in 16 Byte FIFO

32-bit bus design, supporting PCI 2.1 specification

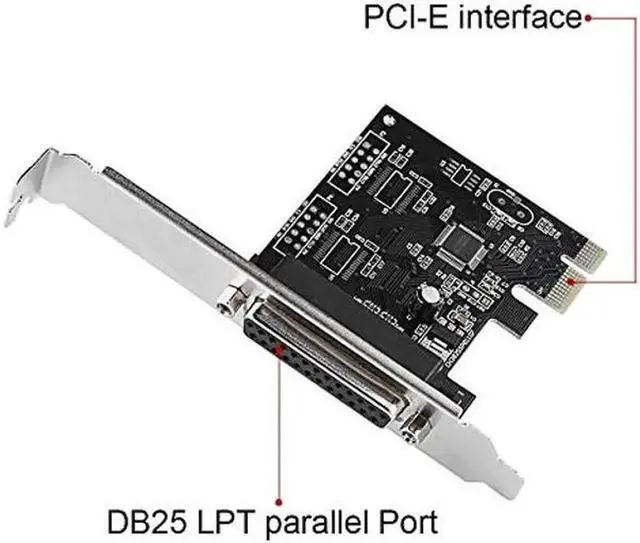

Interface: PCI-E-TO- parallel port (25 holes)

Package List:

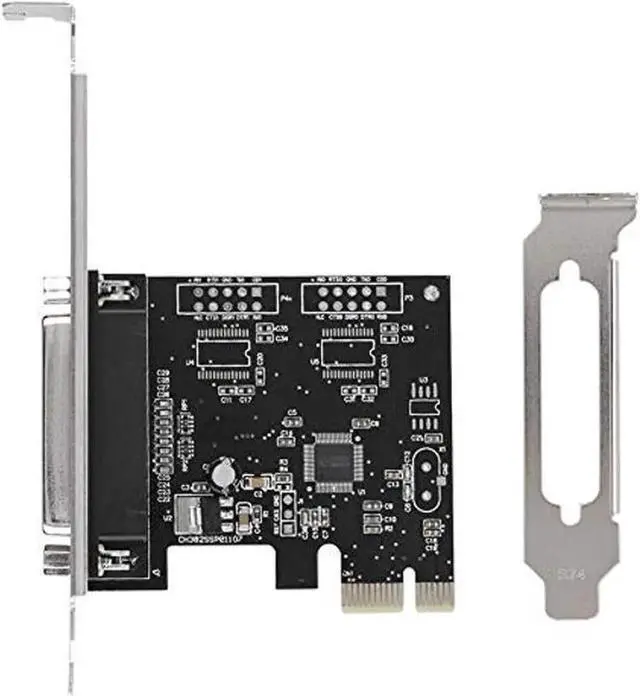

1 * LPT Card

1 * Cover Board
