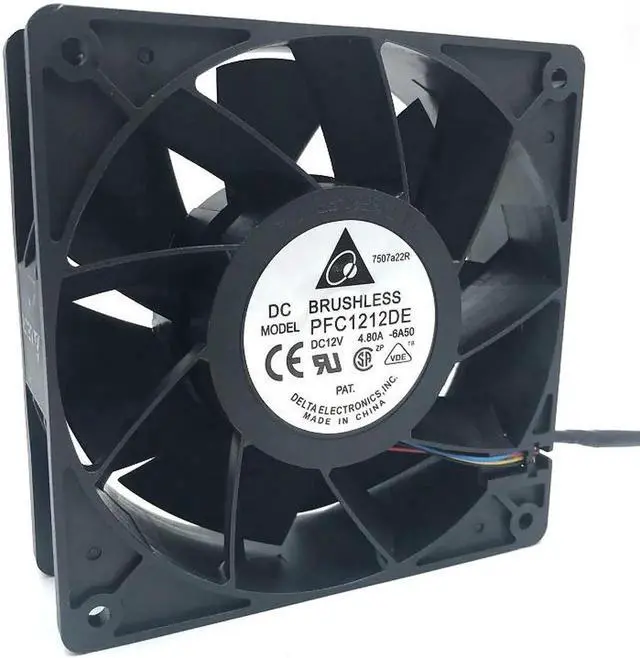

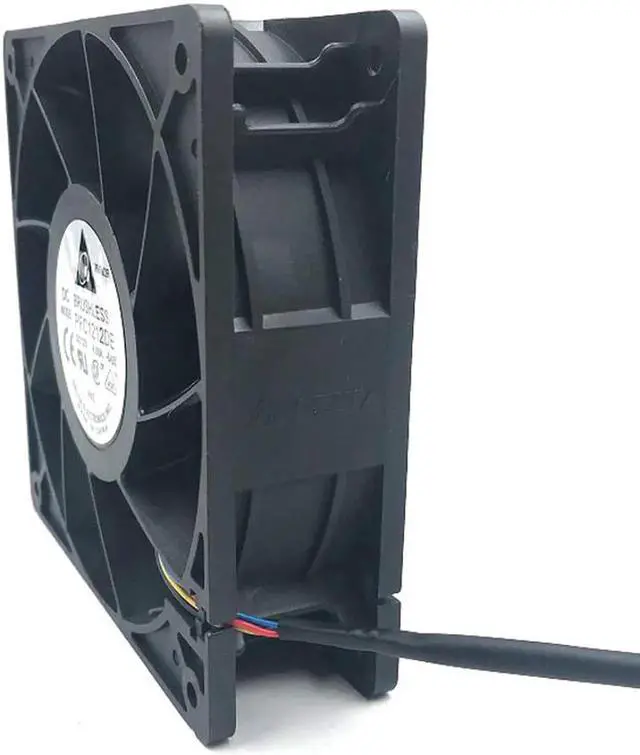

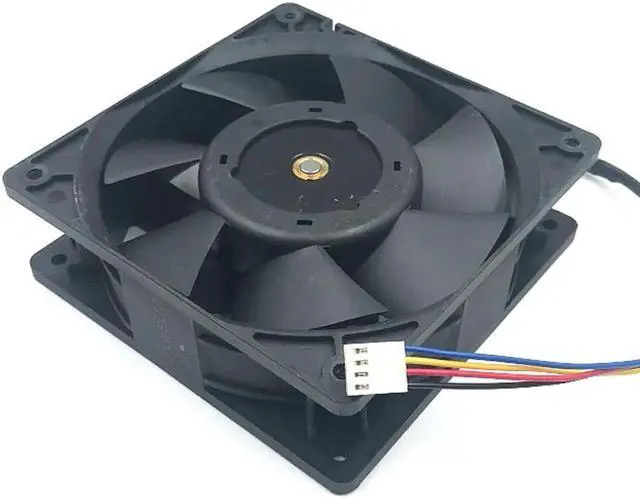

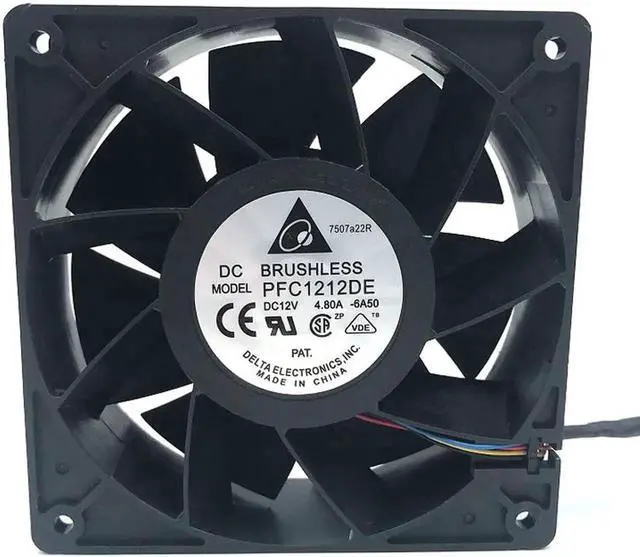

PFC1212DE Delta 12V PWM 120mm 12038 fan 1.5K-5.5K RPM 252 CFM BEAST cooling fan 4-PIN 4 wire

Type: Case Fan Max.

Air Flow Volume: 252CFM

Bearing Type: Ball Max.

Fan Speed: 7500RPM

Brand: Delta Electronics

Power Connection: 4-Pin

Model: PFC1212DE

Fan Diameter: 120 mm

MPN: Delta Country/Region of

Manufacture: China

Dimensions: 120 x 120 x 38mm.

* Air Flow: 253 CFM.

* Air Pressure: 1.412" (352 pa) *

Speed: 1, 550- 5, 500 RPM.

* Max Noise: 66.5 dBA.

* Rated Voltage: 12VDC.

* Startup Voltage: 5.0 VDC (.

50A)* * Current: 0.25 - 4.0 A *

Bearing type: Dual Ball *

MTBF: 70, 000 hours continuous @ 40 C * Operating Temperature -10 to 60C *actually measured with a bench power supply. PWM Speed Control Table DUTY CYCLE (&) SPEED R. P. M. CURRENT (A) 100% 5500 4.00 20% 1600 0.25 0% 1550 0.25

Fan frame: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;

Blade: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;

Fan rotation: from the fan direction is counter-clockwise;

Operating temperature: -10 degrees Celsius to +70 degrees Celsius;

Storage temperature: -40 degrees Celsius to +70 degrees Celsius;

Bearing: high precision ball bearings;

Power range: plus or minus 15% of the rated power;

Insulation resistance: > 500 megohms;

Withstanding voltage: Department of leakage current 0.5 mA 500V / 1 minute;

Working life: an ambient temperature of 25 degrees when 80, 000 hours.
