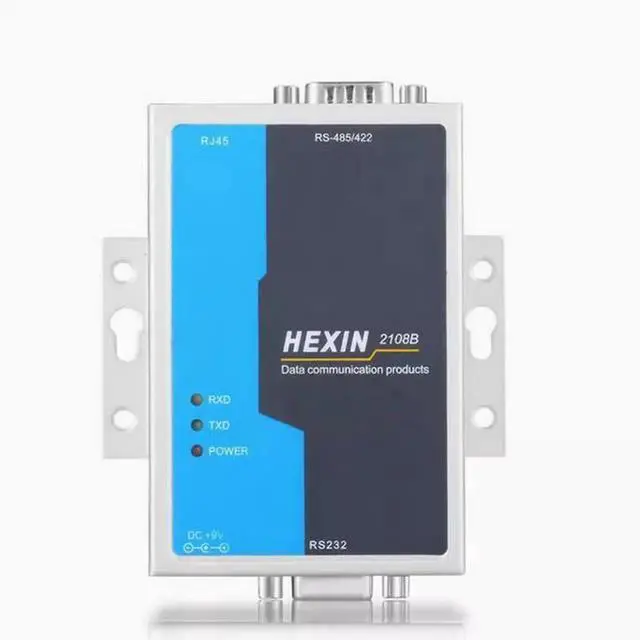

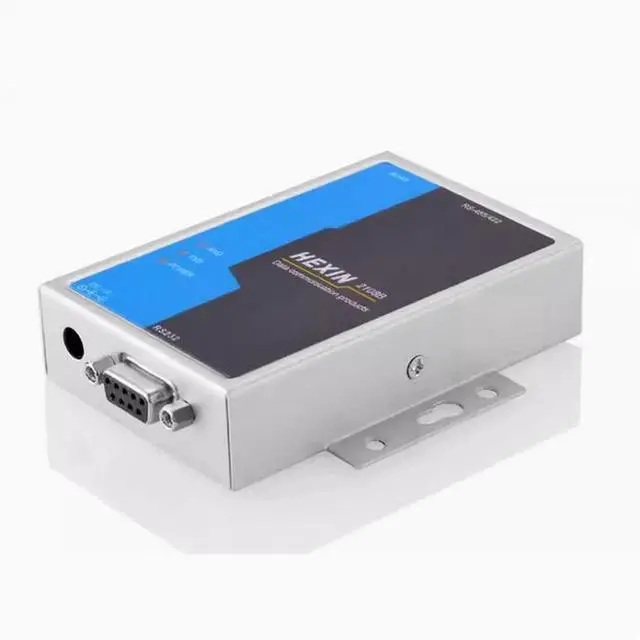

RS485 converter RS232 to 485/422 converter active with surge protection 2108B

1, interface

characteristics: interface compatible with EIA/TIA RS-232C,

RS-485/RS-422 Standard:

2,

electrical interface: RS-232C interface DB9 hole connection port,

RS-485/RS-422 port DB9 female connector and RJ45 connector

The connection port is equipped with six terminals.

3.

Transmission medium: twisted pair shielded wire

4,

working mode: asynchronous duplex or asynchronous half duplex;

5,

signal indicator: three signal indicators TXD, RXD, POWER.

6,

protection level: 1500W surge protection

7,

transmission rate: 300~ 115.2KBPS;

8,

transmission distance: 0~ 1.8KM

9,

size: 93mm×23mm×62mm

10,

the use of environment: 0 -50 relative temperature is 5% to 95%;

11,

cascading: 32~128 devices.
