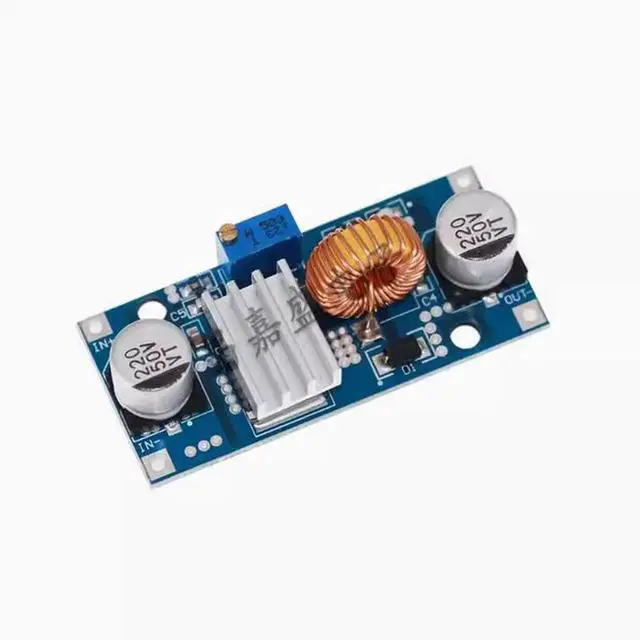

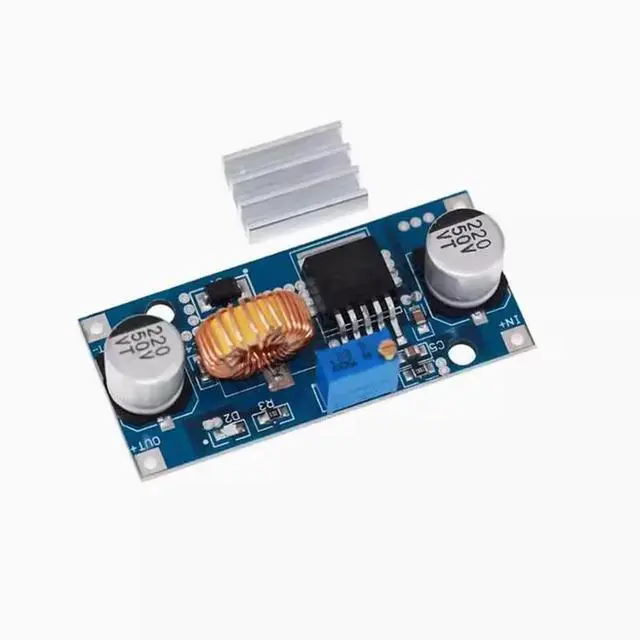

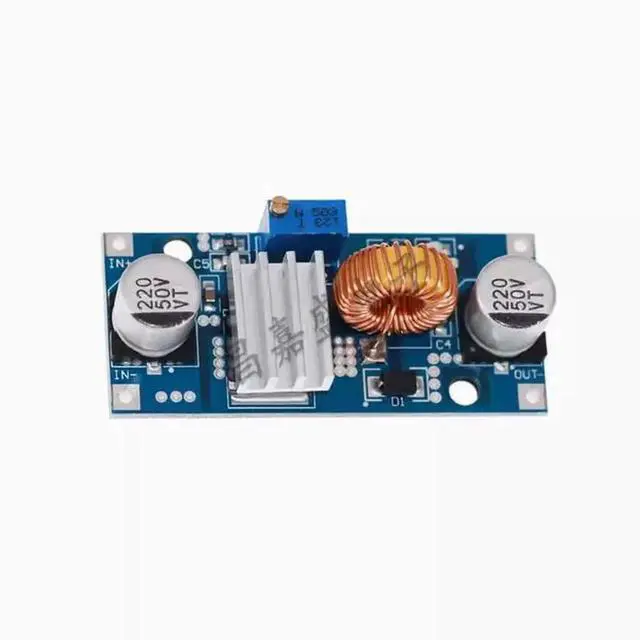

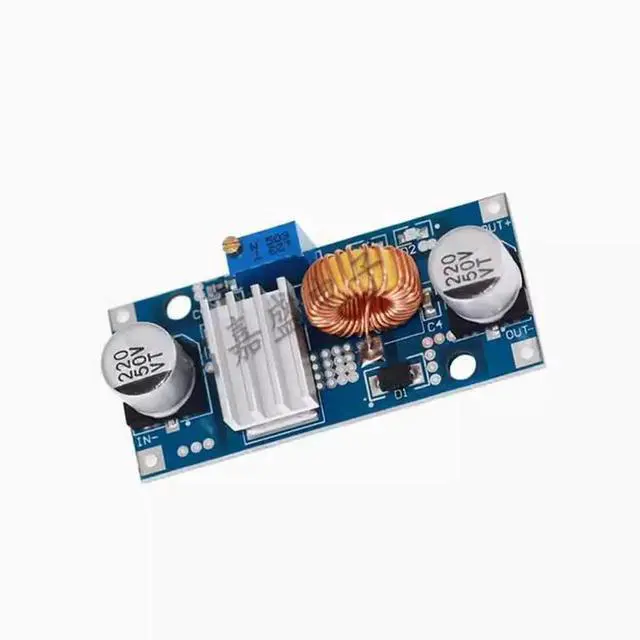

XL4015E adjustable buck module DC-DC5A high power input 4~38V low ripple far exceeds 2596
- Module nature: Non-isolated BUCK module (BUCK)
- Input voltage :4-38V(Please try not to exceed 38V)
- Output voltage :1.25-36V continuously adjustable
- Output current :0-5A, recommended for use within 4.5A
- Output power: Recommended to use within 75W.
- Operating temperature :-40~+85 degrees
- Operating frequency :180KHz
- Conversion efficiency: up to 96%(efficiency with input, output voltage, current, voltage)
- Difference related)
- Load adjustment rate :S(I)<0.8%
- Voltage adjustment rate :S(u)<0.8%
- Power indicator: Yes
- Short circuit protection: Yes (limited current 8A)
- Overtemperature protection: Yes (automatically turn off output after overtemperature)
- Input reverse protection: None, (If necessary, put a high current diode in the input string
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Module nature: Non-isolated BUCK module (BUCK)
Input voltage: 4-38V (Please try not to exceed 38V)
Output voltage: 1.25 -36V continuously adjustable
Output current: 0-5A, recommended for use within 4.5A
Output power: Recommended to use within 75W.
Operating temperature: -40~+85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%(efficiency with input, output voltage, current, voltage)
Difference related)
Load adjustment rate: S (I) <0.8%
Voltage adjustment rate: S (u) <0.8%
Power indicator: Yes
Short circuit protection: Yes (limited current 8A)
Overtemperature protection: Yes (automatically turn off output after overtemperature)
Input reverse protection: None, (If necessary, put a high current diode in the input string
