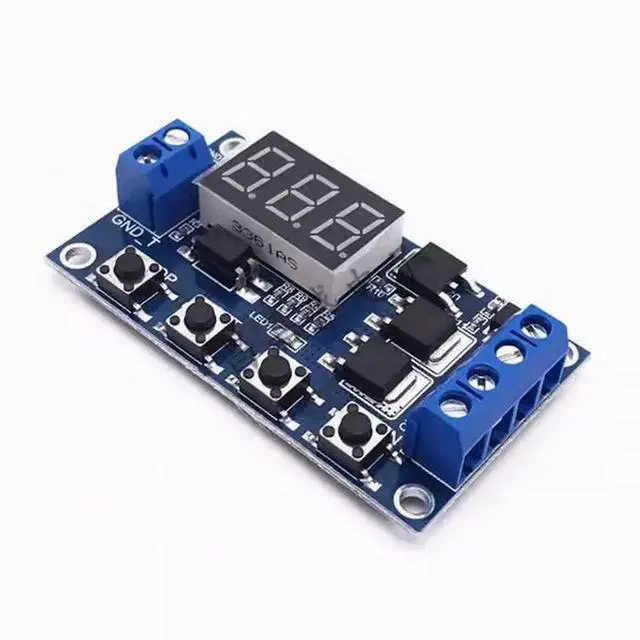

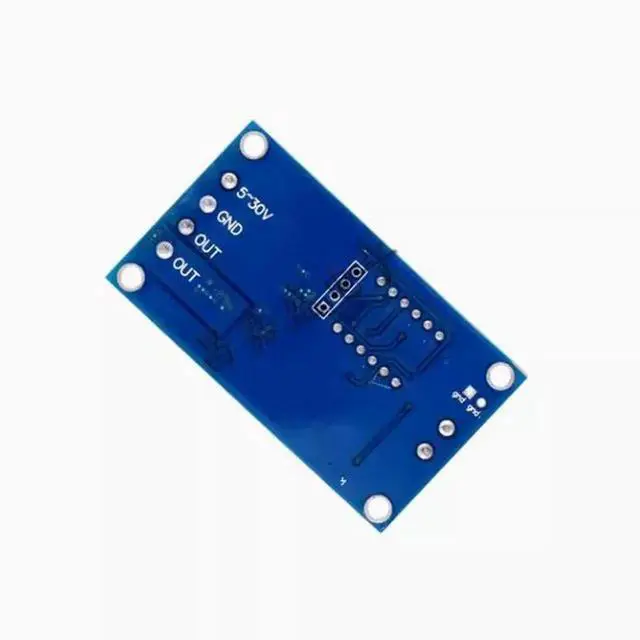

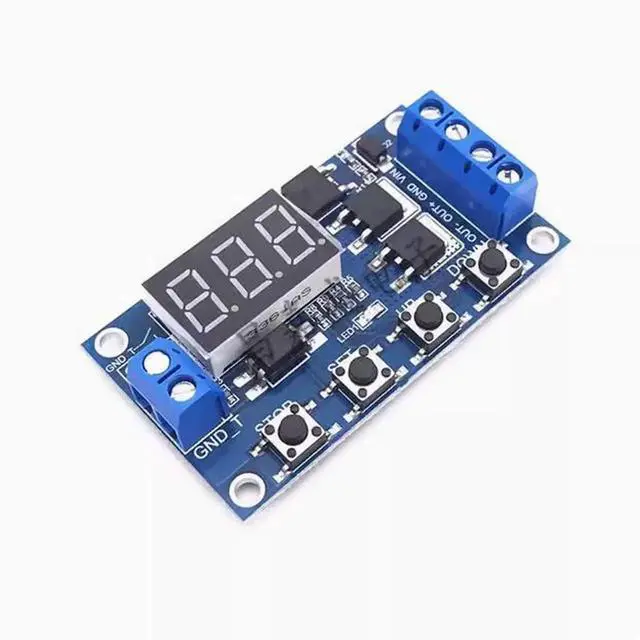

Trigger cycle timing dual MOS time-delay switch circuit control board replaces relay module 12 24V
- Module features:
- 1. To realize the circuit high frequency fast and frequent on-off, unlimited switching times; 2. The on-off process will not produce noise, no spark, no electromagnetic interference; 3. The service life is longer than that of common electromagnetic relays; 4. The use of double MOS parallel active output, lower internal resistance, larger current, strong power, 1,400 W at room temperature, to meet the use of most equipment; 5. It is often used to control motors, light bulbs, LED light belts, DC motors, micro-pumps, solenoid valves, etc., through this module, these devices can be easily controlled.
- Product highlights:
- 1. Wide voltage operation (5~36V), most equipment can be used, very convenient;
- 2. The interface is clear and simple, powerful and easy to understand, almost meeting all your needs;
- 3. There is a one-key emergency STOP function (STOP key), with reverse connection protection, reverse connection does not burn; 4. Added sleep mode, enable the operation within
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameters:
Working voltage: DC 5V--36V;
Trigger signal source: high level trigger (DC 3.0V -24V) signal ground and system ground anti-interference ability of the system (can also short-circuit common ground)
Output capacity: DC DC 5V- 36V, continuous current 1 at room temperature, power 400W! Under the auxiliary heat dissipation condition, the current can reach 30A.
Static current: 15mA
Service life: unlimited switch;
Operating temperature: -40-85C
Size: 6.0 * 3.4 * 1.2 cm
With optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, setting parameters
Number of memories after power failure
