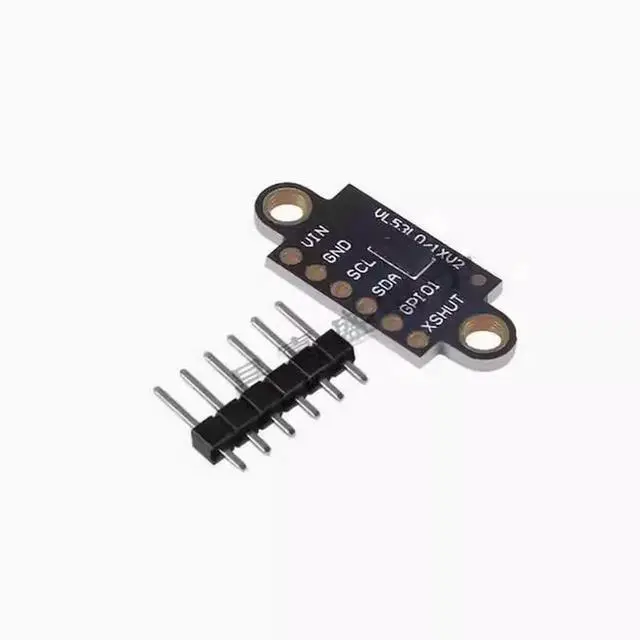

Laser ranging sensor GY-530 VL53L0XToF Ranging time-of-flight V2 ranging sensor Black
- Product features:
- 1.VL53L0X extends the ToF ranging length to two meters, and the accuracy is within the range of 3%.
- 2. The measurement speed is faster than the previous generation, and the ranging time is less than 30ms; 3. Higher energy efficiency, power consumption in normal working mode is only 20mW, standby power consumption
- It's only 5 uA.
- 4. The internal laser emits 940nm wavelength non-visible light, which does not harm the eyes and eliminates the problem of distracting people's attention by emitting red light with other infrared proximity detection sensors, and enhances the anti-interference performance of external light sources. 5. The sensor's digital architecture and automatic compensation function make it still have high performance in scenes with high ambient light intensity.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameters:
Product model: GY-530
Chip: VL53LOX
Operating voltage: 2.8V -- 5.0V DC
Communication mode: IIC communication protocol (compatible with 3-5V system)
Measuring distance: 200cm (Max)
Bus address: 0x52
Infrared emitter: 940nm
Module size: 25.0 x 10.7 mm/ 25.0 x 12.5 mm
Fixed hole: M3 hole,
Hole distance 19.3 mm
Operating temperature: -20° C ~+70 ° C
